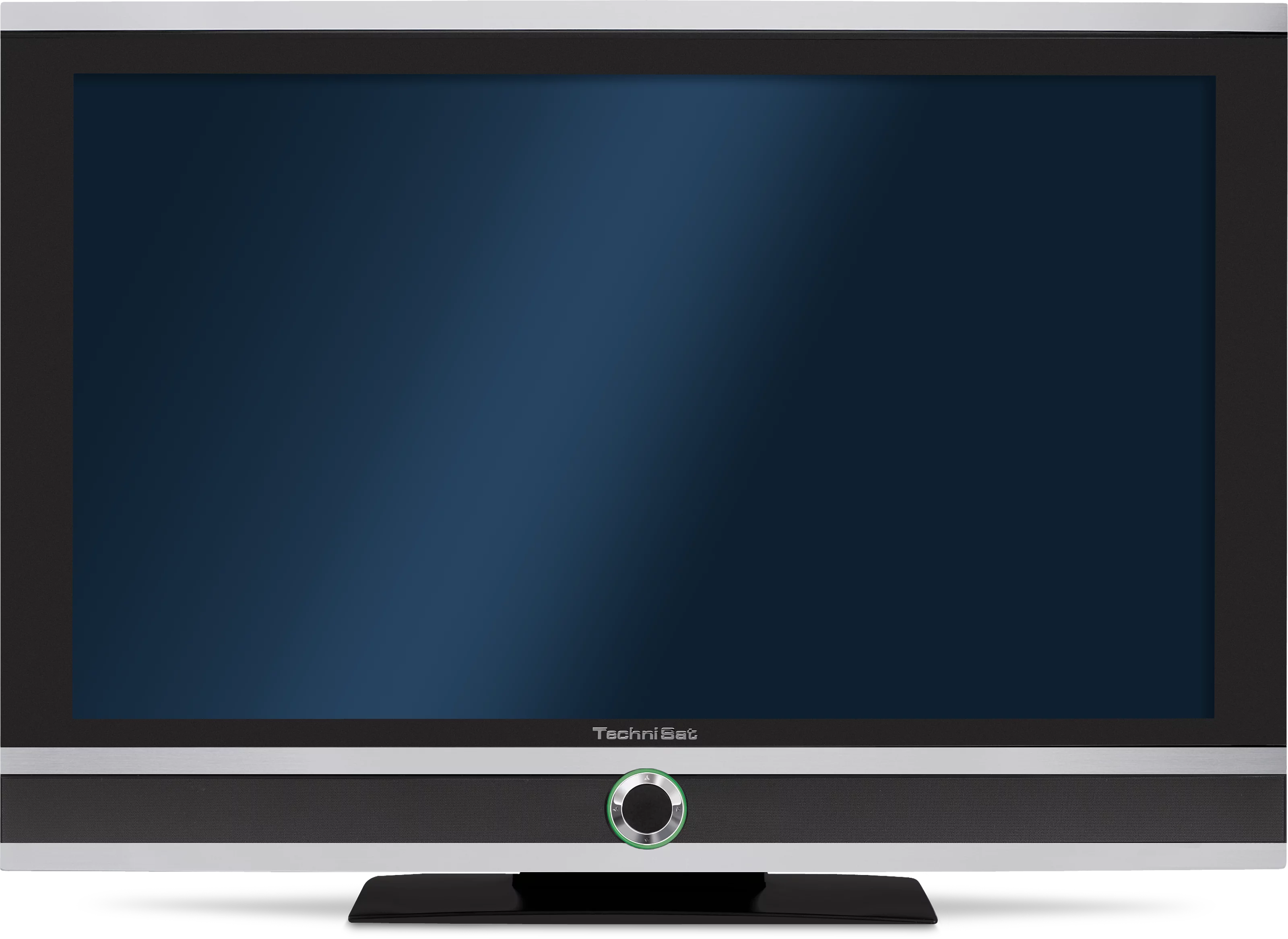

TECHNILINE 40 HD
40 inch Full-HD LED screen and HDTV multituner for receiving analogue and digital television including HDTV
| Weight without stand | EAN | Colour | Item no. | Weight (Box) | Weight | Unit without stand (W x H x D) | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|---|---|
| 17 kg | 4019588543065 | black/silver metallic | 5540/1306 | 23 kg | 18 kg | 1.000 x 673 x 75 mm | 100 x 71,3 x 20 cm | 110 x 84 x 26 cm |
| 17 kg | 4019588543164 | titanium | 5540/1316 | 23 kg | 18 kg | 1.000 x 673 x 75 mm | 100 x 71,3 x 20 cm | 110 x 84 x 26 cm |
| 17 kg | 4019588543263 | high/gloss | 5540/1326 | 23 kg | 18 kg | 1.000 x 673 x 75 mm | 100 x 71,3 x 20 cm | 110 x 84 x 26 cm |
| Top Features |
|---|
|
| Ambient operating conditions |
|---|
| Ambient temperature: 5 35 °C |
| Humidity: 10 75 % |
| LNB control |
|---|
| DiSEqC: DiSEqC 1.0 and 1.2 / DiSEqC 1x Sat Channel Router |
| Vertical: <14 V without load, > 11.5 V at 400 mA V |
| Band switch: 22 kHz |
| Horizontal: <20 V without load, > 17.2 V at 400 mA / LNB shut-off standby mode V |
| Current consumption: 400 mA |
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Audio |
|---|
| Speakers: 2 x 2-way sound system with bass reflex |
| Connections |
|---|
| HDMI™ (in): 2 |
| Digital electric audio output (S/PDIF): Yes (Cinch) |
| Digital optical audio out: Yes (Toslink) |
| Digital audio in (S/PDIF): Yes (Cinch) |
| Audio in/AUX in: Yes (3.5mm Klinke) |
| VGA: Yes |
| YUV (component input): Yes |
| Scart: 1 |
| F socket: 1 |
| IEC-Connector: Yes |
| Decryption system |
|---|
| CI+: Yes |
| Dimensions / Weight |
|---|
| Set depth without stand: 75 mm |
| Set height without stand: 673 mm |
| Set width without stand: 1.000 mm |
| Weight without stand: 16,5 kg |
| Display |
|---|
| Size (cm): 102 cm |
| Format: 16:9 |
| Contrast ratio: 4.000:1 |
| Brightness: 450 cd/m² |
| Picture in Picture (PIP): Yes externe Quelle |
| Response time: < 6 ms |
| Angle of view: 178 |
| Picture and Picture (PAP): Yes externe Quelle |
| Freeze frame: Yes |
| Zoom: Yes |
| 720p: Yes |
| Size (inches): 40 |
| SD: Yes |
| Resolution (vertical and horizontal): 1920 x 1080 |
| HD: Yes |
| Type: Full-HD eLED |
| 1080i: Yes |
| General characteristics |
|---|
| Appearance: Slim 55mm |
| Handling/comfort |
|---|
| Clock: Yes |
| Sleep timer: Yes |
| Alarm: Yes |
| Hotel mode |
|---|
| Customisable start screen: Yes |
| Configurable on times: Yes |
| Energy card function: Yes |
| USB cloning function: Yes |
| Multimedia connectors: Yes |
| Menu locking: Yes |
| Radio mode: Yes |
| Mixing of channel slots: Yes |
| Multicode remote control: Yes |
| Fireproofed housing: Yes |
| materials contained |
|---|
| Lead: Yes |
| Other features |
|---|
| OSD languages: Czech, Italian, Greek, German, Swedish, Hungarian, Spanish, Turkish, French, Dutch, Russian, Polish, Portuguese, English |
| Total programme memory: 5.000 |
| Regional channel selection: Yes |
| Power consumption |
|---|
| SFIplus updating: 29 W |
| Software update: 29 W |
| Energy class: B |
| Standby fast start: 27 W |
| Standby LED: 0,4 W |
| In operation: 86 W |
| annual energy consumption when switched on: 126 kilowatt hour per annum |
| Standby: 0,4 W |
| Off status: 0 W |
| Power switch: Yes |
| Contains no mercury: Yes |
| Power supply |
|---|
| Mains adapter: internal |
| Frequency: 50 Hz |
| Nominal voltage: 230 V |
| Supported formats & codecs |
|---|
| Video-Codecs: MPEG-1, MPEG-2, H.264 |
| Video-Formats: TS, MPG, TS4, VOB |
| JPEG: Yes |
| Audio-Formats: MP2, MP3 |
| Tuner |
|---|
| Tuner type: Single-HDTV-Multituner |
| DVB-S tuner: 1 |
| DVB-C Tuner: 1 |
| DVB-T Tuner: 1 |
| Analogue UHF/VHF/CATV tuner: 1 |
| Input impedance: 75 Ω |
| Reception on: HDTV (Mpeg-4+2) SD (MPEG-2) |
| TECHNIROUTER ready: Yes |
| Tuner - Analogue |
|---|
| Video standards: B/G stereo, D/K mono, L/L, I, NICAM |
| Reception range: 46 860 MHz |
| Tuner - Cable |
|---|
| Demodulation: 16/32/64/128/256 QAM |
| FEC: Reed-Solomon |
| Symbol rate: 1,7 7 |
| Reception range: 51 858 MHz |
| Tuner - Sat |
|---|
| DVB-S2: 10 ... 31 |
| DVB-S: 2 ... 45 |
| FEC: Viterbi and Reed-Solomon |
| Reception range: 950 ... 2.150 MHz |
| Viterbi rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8, 8/9, 9/10 Autoanpassung |
| DVB-S: QPSK |
| DVB-S2: 8PSK - QPSK |
| Tuner - Terrestrial |
|---|
| Bitrate: 4 32 |
| Voltage supply: 5 V |
| Power supply: 0,03 A |
| Demodulation: COFDM |
| Reception range 2: 470 ... 860 MHz |
| Transmission mode: 2k/8k |
| Reception range 1: 174 ... 230 MHz |
| wall bracket |
|---|
| VESA wall mounting standards: VESA 100 x 100 |
| Scope of Delivery |
|---|
| TechniLine 40 HD, Pedestal, Remote control and batteries, 230 V euro connection cable, Hexagonal tool, Maintenance instruction with maintenance set, Instruction manual |
Test Results TECHNILINE 40 HD
Testurteil: sehr gut | Note: 1,4
Heimkino (05-06/2011)
HiFi Test (05/2011)
