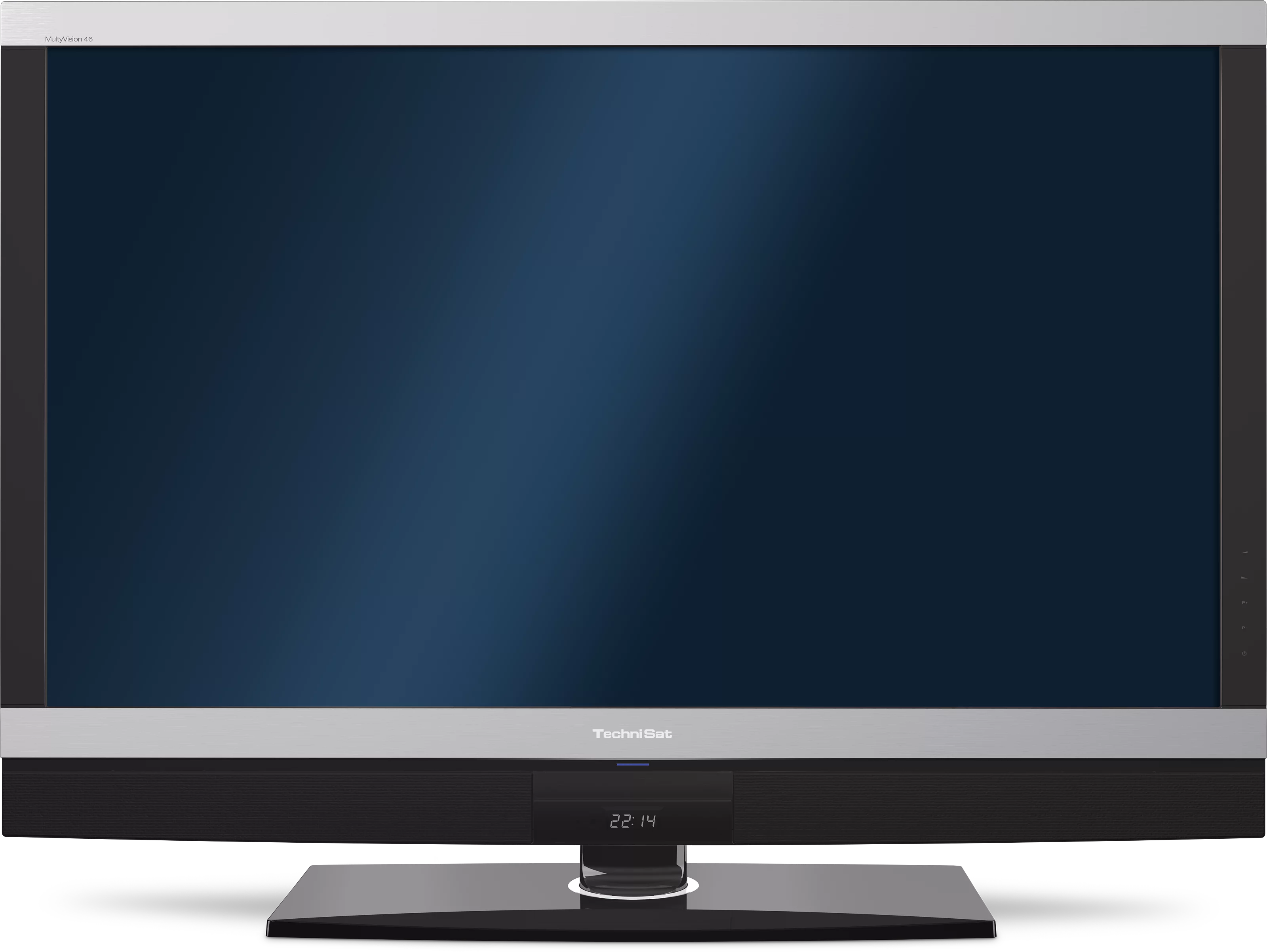

MultyVision 46
Full-HD eLED Digital Television with Dual HDTV multituner for reception of analogue and digital TV. Integrated DVR for recording HD and standard TV and radio programmes.
| Hard drive | Weight without stand | EAN | Colour | Item no. | Weight (Box) | Weight | Unit without stand (W x H x D) | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|---|---|---|
| 500 GigaByte | 19,5 kg | 4019588746060 | black/silver metallic | 5746/0306 | 31,5 kg | 23 kg | 1.090 x 713 x 61 mm | 109 x 76,5 x 22 cm | 125 x 100 x 30 cm |
| 500 GigaByte | 19,5 kg | 4019588746169 | black/titanium metallic | 5746/0316 | 31,5 kg | 23 kg | 1.090 x 713 x 61 mm | 109 x 76,5 x 22 cm | 125 x 100 x 30 cm |
| Top Features |
|---|
|
| Ambient operating conditions |
|---|
| Ambient temperature: 5 - 35 °C |
| Humidity: 10 - 75 % |
| LNB control |
|---|
| DiSEqC: DiSEqC 1.0 and 1.2 / DiSEqC 1x Sat Channel Router |
| Vertical: <14 V without load, > 11.5 V at 400 mA V |
| Band switch: 22 kHz |
| Current consumption: 400 mA max. kurzschlussfest 400 mA |
| Horizontal: <20 V without load, > 17.2 V at 400 mA / LNB shut-off standby mode V |
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Audio |
|---|
| Speakers: 2 x broadband speakers with bass reflex |
| AC3 Dolby Digital bitstream out: Yes |
| Card reader |
|---|
| SD card: Yes |
| Connections |
|---|
| HDMI™ (in): 3 (davon 1 x HDMI Mini Front) |
| HDMI™ (out): 1 |
| Smartcard reader: Yes (Conax) |
| Digital electric audio output (S/PDIF): Yes (Adapter) |
| Digital optical audio out: Yes (Toslink) |
| Digital audio in (S/PDIF): Yes (Adapter) |
| Audio out analogue (RCA): Yes (3.5mm Klinke) |
| AV input: Yes (Front) |
| Audio in/AUX in: Yes (3.5mm Klinke) |
| VGA: Yes |
| YUV (component input): Yes (Adapter) |
| Scart: 1 (Adapter) |
| Ethernet 10/100 (RJ-45): Yes (RJ-45) |
| F socket: 2 |
| IEC-Connector: Yes |
| Decryption system |
|---|
| Conax: Yes |
| CI+: Yes |
| Dimensions / Weight |
|---|
| Set depth without stand: 61 mm |
| Set width without stand: 1.090 mm |
| Set height without stand: 713 mm |
| Weight without stand: 22,5 kg |
| Display |
|---|
| Size (cm): 117 cm |
| Frequency: 200 Hz |
| Format: 16:9 |
| Contrast ratio: 5.000:1 |
| Brightness: 450 cd/m² |
| Picture in Picture (PIP): Yes (2 x SD, 1 x SD u. 1 x HD) |
| Response time: 6 ms |
| Angle of view: 178° / 178° |
| Picture and Picture (PAP): Yes (2 x SD, 1 x SD u. 1 x HD) |
| Freeze frame: Yes |
| Zoom: Yes |
| 1080i: Yes |
| 720p: Yes |
| Size (inches): 46 |
| SD: Yes |
| Resolution (vertical and horizontal): 1920 x 1080 |
| HD: Yes |
| Type: Edge LED LCD |
| General characteristics |
|---|
| Hard drive: 500 GigaByte |
| Appearance: Slim 55mm |
| Handling/comfort |
|---|
| Clock: Yes |
| Alarm: Yes |
| Sleep timer: Yes |
| Hotel mode |
|---|
| Customisable start screen: Yes |
| Configurable on times: Yes |
| Energy card function: Yes |
| USB cloning function: Yes |
| Multimedia connectors: Yes |
| Menu locking: Yes |
| Integrated LED clock: Yes |
| Radio mode: Yes |
| Mixing of channel slots: Yes |
| Multicode remote control: Yes |
| Fireproofed housing: Yes |
| materials contained |
|---|
| Lead: Yes |
| Other features |
|---|
| OSD languages: Czech, Hungarian, Greek, German, Swedish, Italian, Spanish, Portuguese, French, Russian, Turkish, Polish, Dutch, English |
| Total programme memory: 5.000 |
| Regional channel selection: Yes |
| Power consumption |
|---|
| SFIplus updating: 37 W |
| Software update: 36 W |
| Energy class: B |
| Standby fast start: 25 W |
| Standby LED: 0,46 W |
| In operation: 120 W |
| annual energy consumption when switched on: 166 kilowatt hour per annum |
| Off status: 0 W |
| Power switch: Yes |
| Power supply |
|---|
| Mains adapter: internal |
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Supported formats & codecs |
|---|
| Video-Codecs: MPEG-1, MPEG-2, H.264 |
| Video-Formats: TS, MPG, TS4, VOB |
| JPEG: Yes |
| Audio-Formats: MP2, MP3 |
| Tuner |
|---|
| DVB-S tuner: 2 |
| DVB-C Tuner: 2 |
| DVB-T Tuner: 2 |
| Analogue UHF/VHF/CATV tuner: 2 |
| Input impedance: 75 Ω |
| TECHNIROUTER ready: Yes |
| Reception on: HDTV (Mpeg-4+2) SD (MPEG-2) |
| Tuner - Analogue |
|---|
| Video standards: B/G stereo, D/K mono, L/L, I |
| Reception range: 47 ... 862 MHz |
| Tuner - Cable |
|---|
| Demodulation: 16 / 32 / 64 / 128 / 256 QAM |
| FEC: Reed-Solomon |
| Symbol rate: 1,7 ... 7 |
| Reception range: 51 ... 858 MHz |
| Tuner - Sat |
|---|
| DVB-S2: 10 ... 31 |
| DVB-S: 1 ... 45 |
| FEC: Viterbi and Reed-Solomon |
| Reception range: 950 ... 2.150 MHz |
| Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 |
| DVB-S: QPSK |
| DVB-S2: QPSK - 8PSK |
| Tuner - Terrestrial |
|---|
| Bitrate: 4 ... 32 |
| Voltage supply: 5 V |
| Power supply: 0,03 A |
| Reception range 2: 470 ... 860 MHz |
| Transmission mode: 2k/8k |
| Demodulation: COFDM |
| Reception range 1: 174 ... 230 MHz |
| wall bracket |
|---|
| VESA wall mounting standards: VESA 400 x 400 |
| Scope of Delivery |
|---|
| MultyVision 46, pedestal, power cable, Techni-Control Plus incl. batteries, Remoty Plus, multi audio/video adapter, cleaning set, instruction manual |
