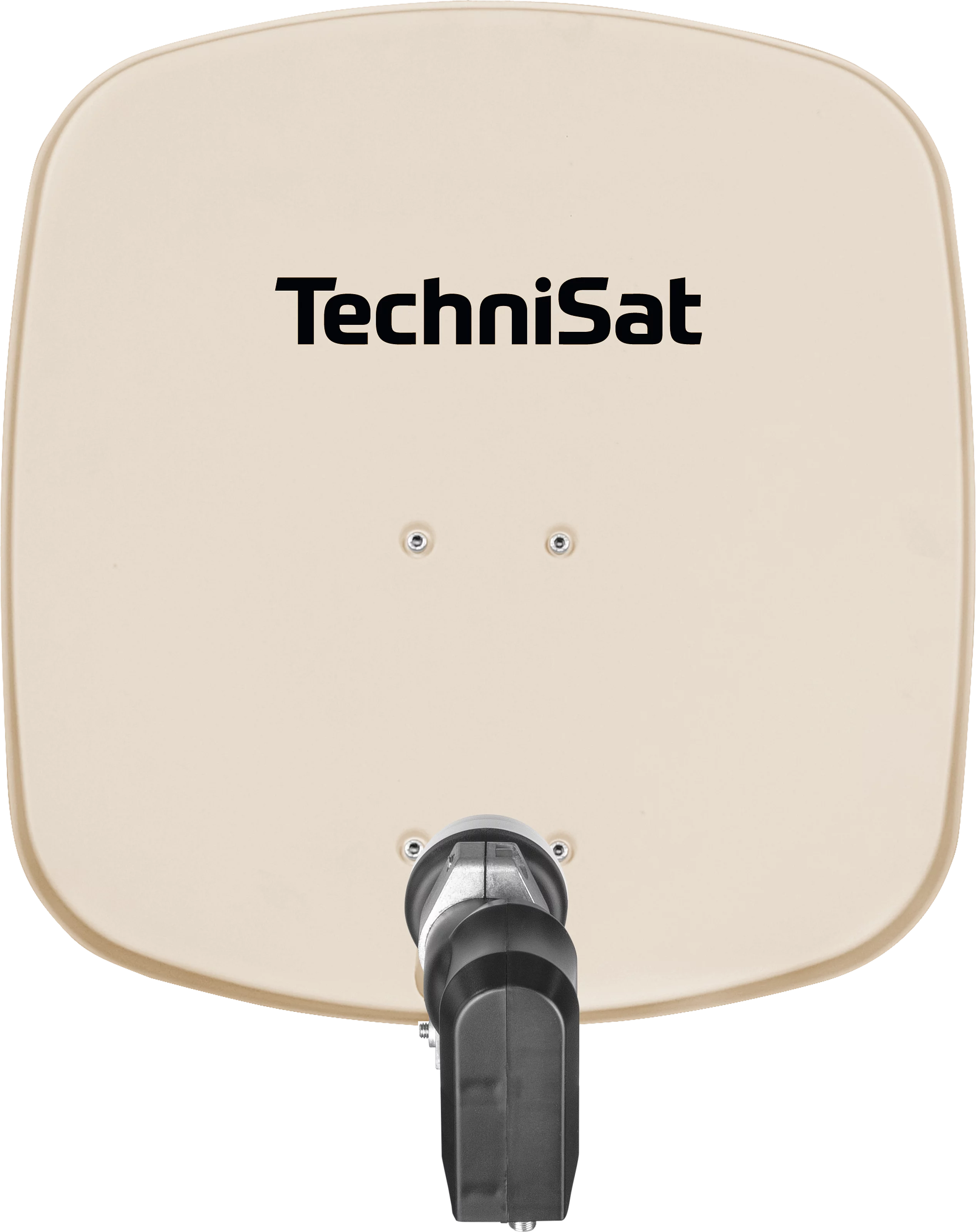

DIGIDISH 45 with Universal-Twin-LNB

Thanks to its ingenious reflector design the reception performance of the DigiDish 45 is better than with many 60 cm mirrors - and that is with a far lower size of reflector.

EAN	Colour	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
4019588453821	slate/grey	1345/2882	3,7 kg	2,9 kg	45 x 48 cm	51 x 51 x 23 cm
4019588478824	polar/white	1745/2882	2,8 kg	3 kg	45 x 48 cm	51 x 51 x 23 cm
4019588452824	beige	1045/2882	3,7 kg	2,9 kg	45 x 48 cm	51 x 51 x 23 cm
4019588542822	yellow with Smiley	1545/2882	3,7 kg	2,9 kg		51 x 51 x 23 cm
4019588448827	brick/red	1445/2882	3,7 kg	2,9 kg	45 x 48 cm	51 x 51 x 23 cm

Top Features
High-quality satellite dish: The aluminum-made reflector ensures long durability and weather protection thanks to its stable construction and double-sided powder coating Pre-assembled: Easy-to-install, twist-resistant satellite system for top reception performance – extremely robust and durable due to the use of only high-quality materials Two-user reception: The satellite dish is delivered with a 40 mm twin LNB. Two independent receivers / TVs can be connected directly to the dish. Discreet installation: Thanks to the small and extremely space-saving design, the satellite dish is ideal for installation on a balcony or for camping

Top Features

High-quality satellite dish: The aluminum-made reflector ensures long durability and weather protection thanks to its stable construction and double-sided powder coating

Pre-assembled: Easy-to-install, twist-resistant satellite system for top reception performance – extremely robust and durable due to the use of only high-quality materials

Two-user reception: The satellite dish is delivered with a 40 mm twin LNB. Two independent receivers / TVs can be connected directly to the dish.

Discreet installation: Thanks to the small and extremely space-saving design, the satellite dish is ideal for installation on a balcony or for camping

sonstiges
bf_filter_number_of_participants: 2
bf_filter_austattung: with LNB
bf_filter_number_satellites: 1
bf_filter_diameter: 45 cm

Local oscillator
Low band: 9,75 GHz
High band: 10,7 GHz

LNB control
Vertical: 11,5 - 14 V
Horizontal: 16 - 19 V
Band switch: 22 kHz

General characteristics
Material: Aluminium
Material strength: 1 mm
Coating: Powder-coated on both sites
Colour: beige, polar white, slate-grey, brick-red
including Wall bracket: Yes

Input frequency range
Low band: 10,7 ... 11,7 GHz
High band: 11,7 ... 12,75 GHz

Noise factor
Lower frequency range: 0,7 dB max.
Upper frequency range: 0,7 dB max.

Output frequency range
Low band: 950 - 1.950 MHz
High band: 1.100 - 2.150 MHz

Power supply
LNB voltage supply: 11,5 ... 19 V
Power consumption: max. 190 mA

Prepared for
Number of orbit positions: 1
Number of clients: 2

Technical data
Rated measurement: 0,45 m
F/D: 0,6
Gain: 32,2 dBi @11,3 GHz
Offset angle: 30 °
Feed reception: 40 mm

Scope of Delivery
Satellite dish 45 cm, LNB, wall bracket, screws, tool, mounting instruction

Test Results DIGIDISH 45 with Universal-Twin-LNB

Zweiter Platz in der Kategorie Sat-Anlagen bei der Leserwahl zum König-Kunde-Award 2014
(Camping, Cars & Caravans)
