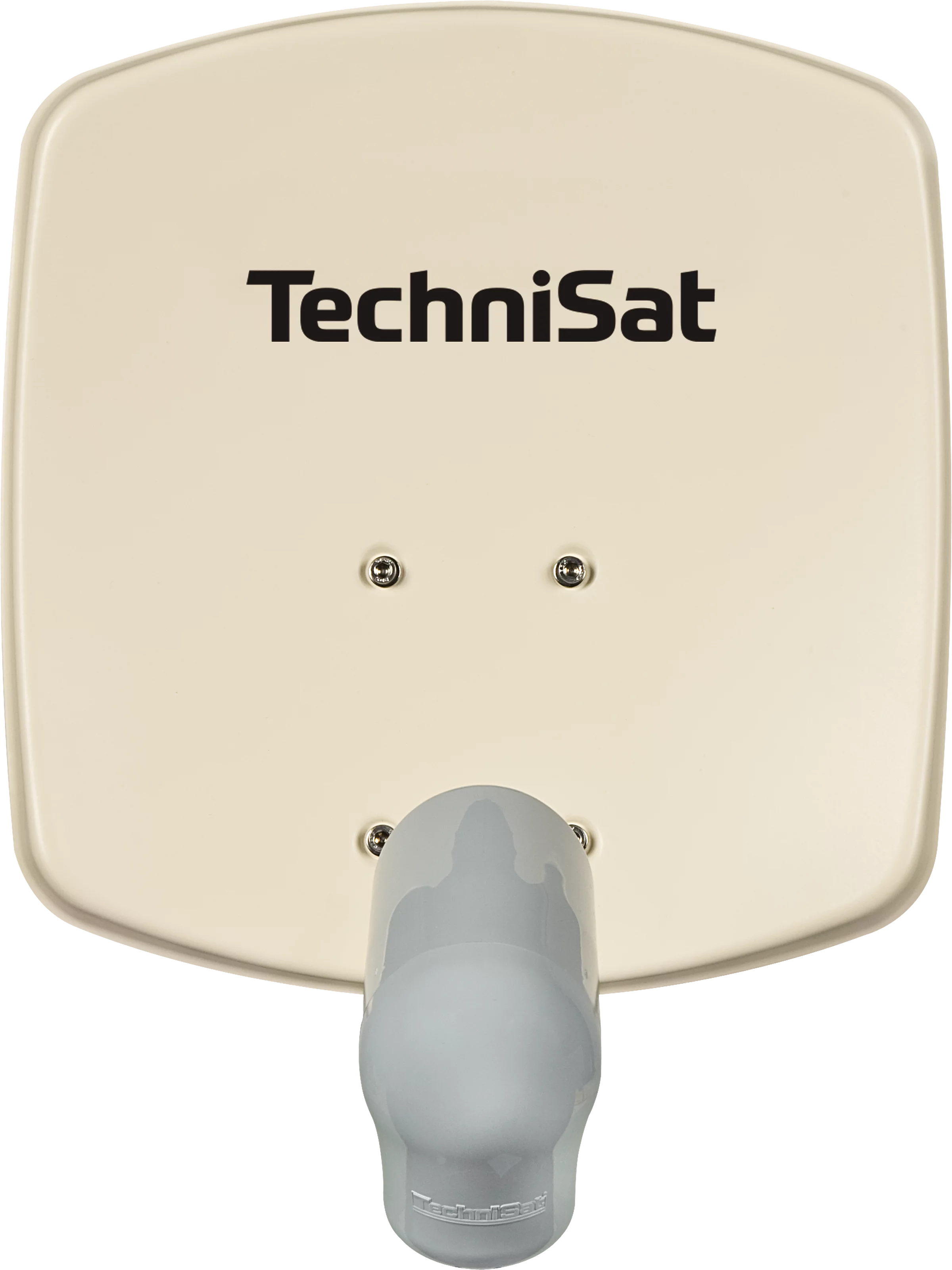

SATMAN 33 with UNYSAT-Twin-LNB

SATMAN 33 with UNYSAT-Twin-LNB

High-quality 33 cm large aluminium offset reflector in reliable SATMAN design (available as single and/or two-participant system)
EAN Colour Item no. Weight (Box) Weight Device (W x H x D) Box
4019588339828 slate/grey 1333/9882 3 kg 2,2 kg 33 x 35 cm 40,5 x 39,5 x 22 cm
4019588333826 slate/grey 1333/8882 3 kg 2,2 kg 33 x 35 cm 40,5 x 39,5 x 22 cm
4019588033825 beige 1033/8882 3 kg 2,2 kg 33 x 35 cm 40,5 x 39,5 x 22 cm
4019588739826 polar white 1733/9882 3 kg 2,2 kg 33 x 35 cm 40,5 x 39,5 x 22 cm
4019588309821 beige 1033/9882 3 kg 2,2 kg 33 x 35 cm 40,5 x 39,5 x 22 cm
4019588348882 brick/red 1433/8882 3 kg 2,2 kg 33 x 35 cm 40,5 x 39,5 x 22 cm
4019588733824 polar white 1733/8882
4019588359826 yellow with Smiley 1533/9882 3 kg 2,2 kg 33 x 35 cm 40,5 x 39,5 x 22 cm
4019588538825 yellow with Smiley 1533/8882 3 kg 2,2 kg 33 x 35 cm 40,5 x 39,5 x 22 cm
4019588439825 brick/red 1433/9882 3 kg 2,2 kg 33 x 35 cm 40,5 x 39,5 x 22 cm
Top Features
  • Only 33 cm small
  • 1 or 2 participants
  • 1 orbital position (for example Astra 19.2 ° East)
  • Especially suitable for balcony installation / Ideal for the city
  • Ideal for ground and wall mounting
  • Includes outdoor housing
Local oscillator
Low band: 9,75 GHz
High band: 10,7 GHz
LNB control
Vertical: 11,5 - 14 V
Horizontal: 16 - 19 V
Band switch: 22 kHz
General characteristics
Material: Aluminium
Material strength: 1 mm
Coating: Powder-coated on both sites
Colour: beige, polar white, slate-grey, brick-red, yellow
including Wall bracket: Yes
Input frequency range
Low band: 10,7 ... 11,7 GHz
High band: 11,7 ... 12,75 GHz
Noise factor
Lower frequency range: 0,6 dB max.
Upper frequency range: 0,6 dB max.
Output frequency range
Low band: 950 - 1.950 MHz
High band: 1.100 - 2.150 MHz
Power supply
LNB voltage supply: 11,5 ... 19 V
Power consumption: max. 190 mA
Prepared for
Number of orbit positions: 1
Number of clients: 2
Technical data
Rated measurement: 0,33 m
F/D: 0,6
Gain: 30 dBi @11,3 GHz
Offset angle: 30 °
Feed reception: for UNYSAT-Universal-LNB
Scope of Delivery
Satellite dish 33 cm, LNB, wall bracket, screws, tool, mounting instruction

Test Results SATMAN 33 with UNYSAT-Twin-LNB

Zweiter Platz in der Kategorie Sat-Anlagen bei der Leserwahl zum König-Kunde-Award 2014
(Camping, Cars & Caravans)
