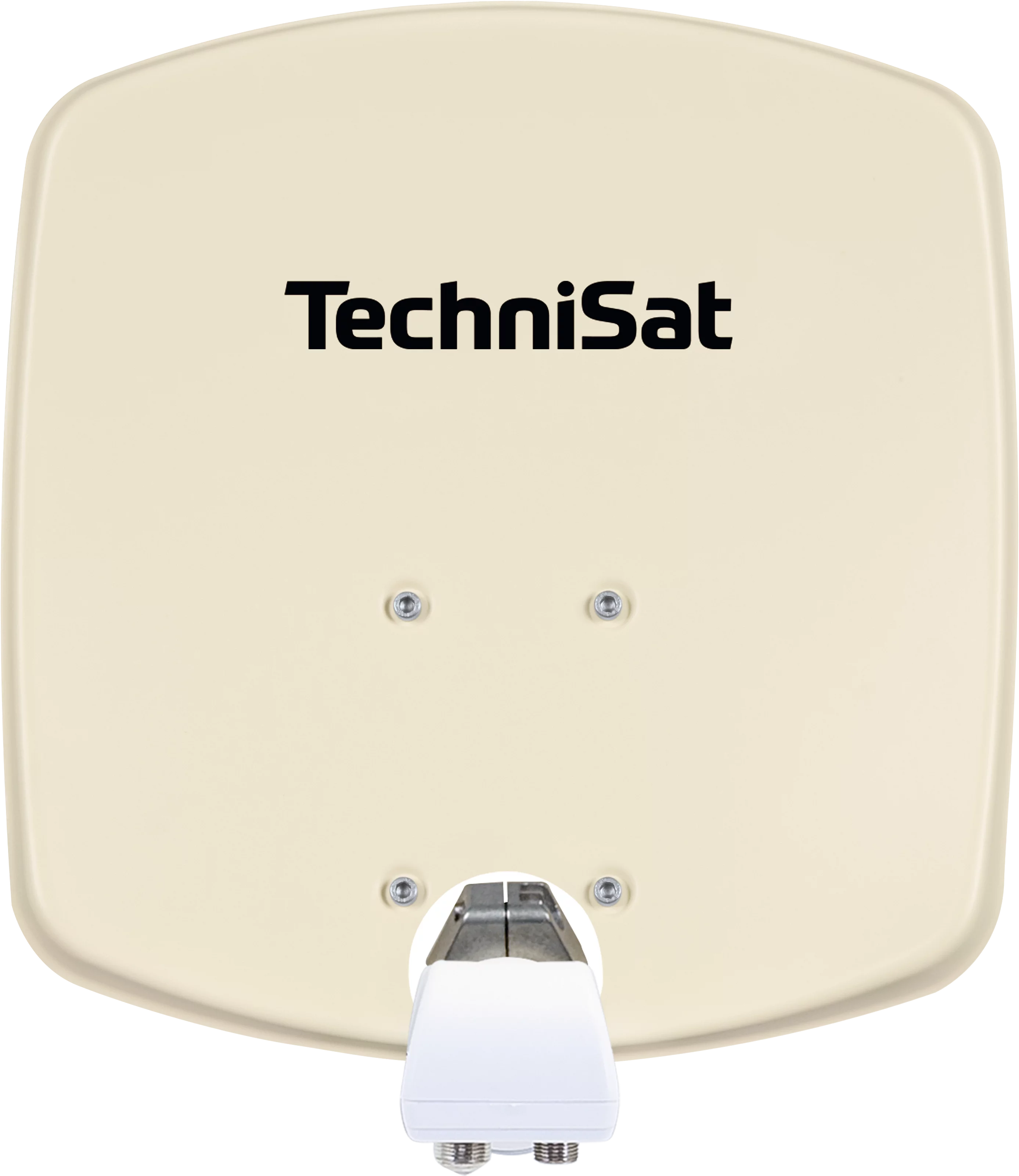

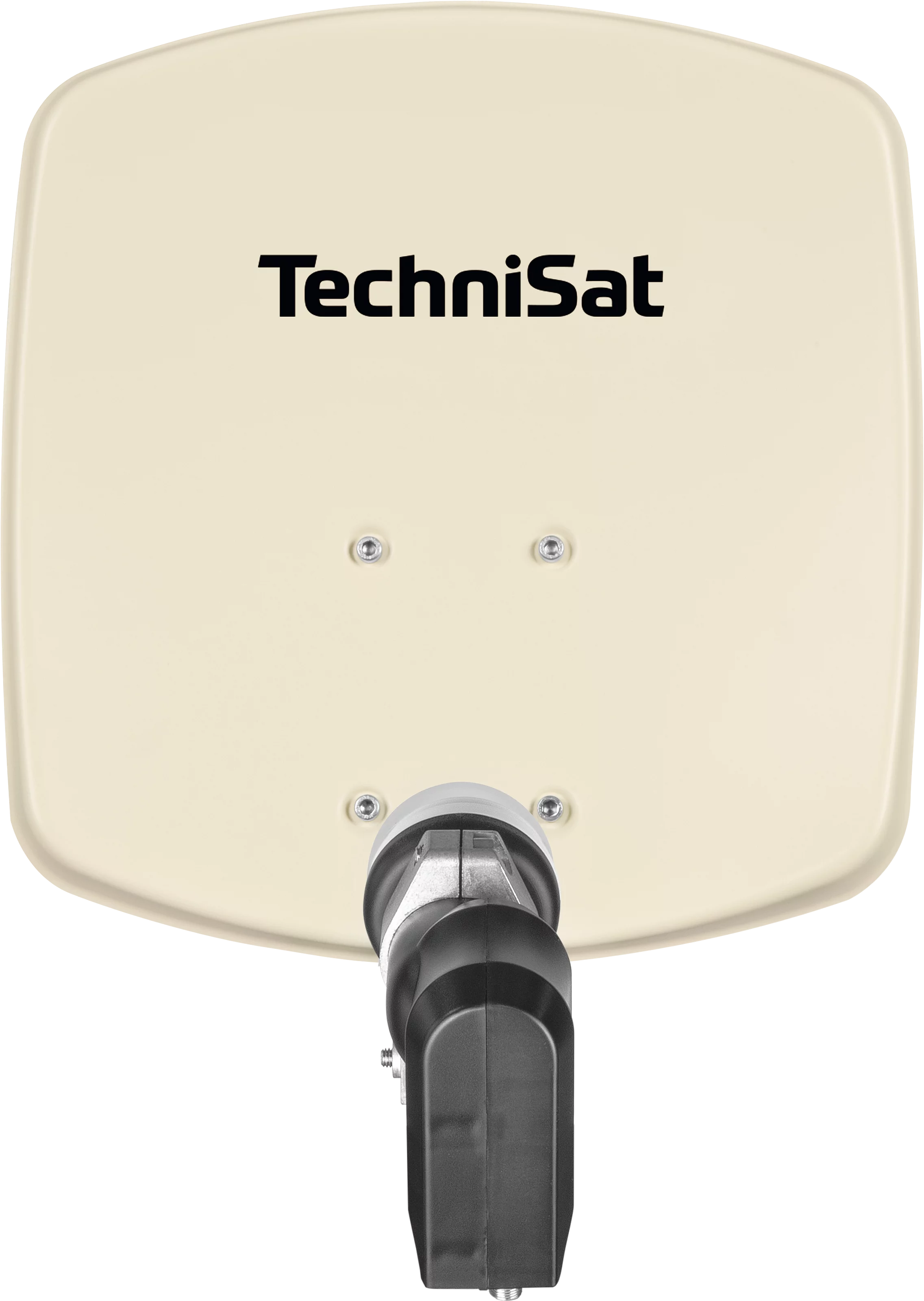

DIGIDISH 33 with Universal-Twin-LNB

DIGIDISH 33 with Universal-Twin-LNB

The DigiDish 33 is enormously high-performance for its size and takes up very little space
EAN Colour Item no. Weight (Box) Weight Device (W x H x D) Box
4019588333284 slate/grey 1333/2882 2,8 kg 2 kg 33 x 35 cm 40,5 x 39,5 x 22 cm
4019588033283 beige 1033/2882 2,8 kg 2 kg 33 x 35 cm 40,5 x 39,5 x 22 cm
4019588733282 polar/white 1733/2882 2,8 kg 2 kg 40,5 x 39,5 x 22 cm
4019588348820 brick/red 1433/2882 2,8 kg 2 kg 33 x 35 cm 40,5 x 39,5 x 22 cm
4019588533820 yellow with Smiley 1533/2882 2,8 kg 2 kg 33 x 35 cm 40,5 x 39,5 x 22 cm
Top Features
  • High-quality satellite dish: the aluminum reflector/mirror ensures long service life and protection against harsh weather thanks to its stable design and double-sided powder coating
  • Pre-assembled: Installation-friendly and warp-resistant satellite system for maximum reception performance – extremely stable and durable due to the use of only high-quality materials
  • Dual-user reception: The satellite dish is supplied with a 40 mm twin LNB. Two independent receivers/TVs can be connected directly to the dish
  • Discreet installation: Thanks to its small and extremely space-saving design, the satellite dish is ideal for installation on balconies or while camping
sonstiges
bf_filter_diameter: 33 cm
bf_filter_austattung: with LNB
bf_filter_number_satellites: 1
bf_filter_number_of_participants: 2
Local oscillator
Low band: 9,75 GHz
High band: 10,7 GHz
LNB control
Vertical: 11,5 - 14 V
Horizontal: 16 - 19 V
Band switch: 22 kHz
General characteristics
Colour: beige, polar white, slate-grey, brick-red, yellow
Material: Aluminium
Material strength: 1 mm
Coating: Powder-coated on both sites
including Wall bracket: Yes
Input frequency range
Low band: 10,7 ... 11,7 GHz
High band: 11,7 ... 12,75 GHz
Noise factor
Lower frequency range: 0,7 dB max.
Upper frequency range: 0,7 dB max.
Output frequency range
Low band: 950 - 1.950 MHz
High band: 1.100 - 2.150 MHz
Power supply
LNB voltage supply: 11,5 ... 19 V
Power consumption: max. 190 mA
Technical data
Rated measurement: 0,33 m
F/D: 0,6
Offset angle: 30 °
Gain: 30 dBi @11,3 GHz
Feed reception: 40 mm
Scope of Delivery
Satellite dish 33 cm, LNB, Wall bracket, Screws, Tool, Mounting instruction

Test Results DIGIDISH 33 with Universal-Twin-LNB

Zweiter Platz in der Kategorie Sat-Anlagen bei der Leserwahl zum König-Kunde-Award 2014
(Camping, Cars & Caravans)
