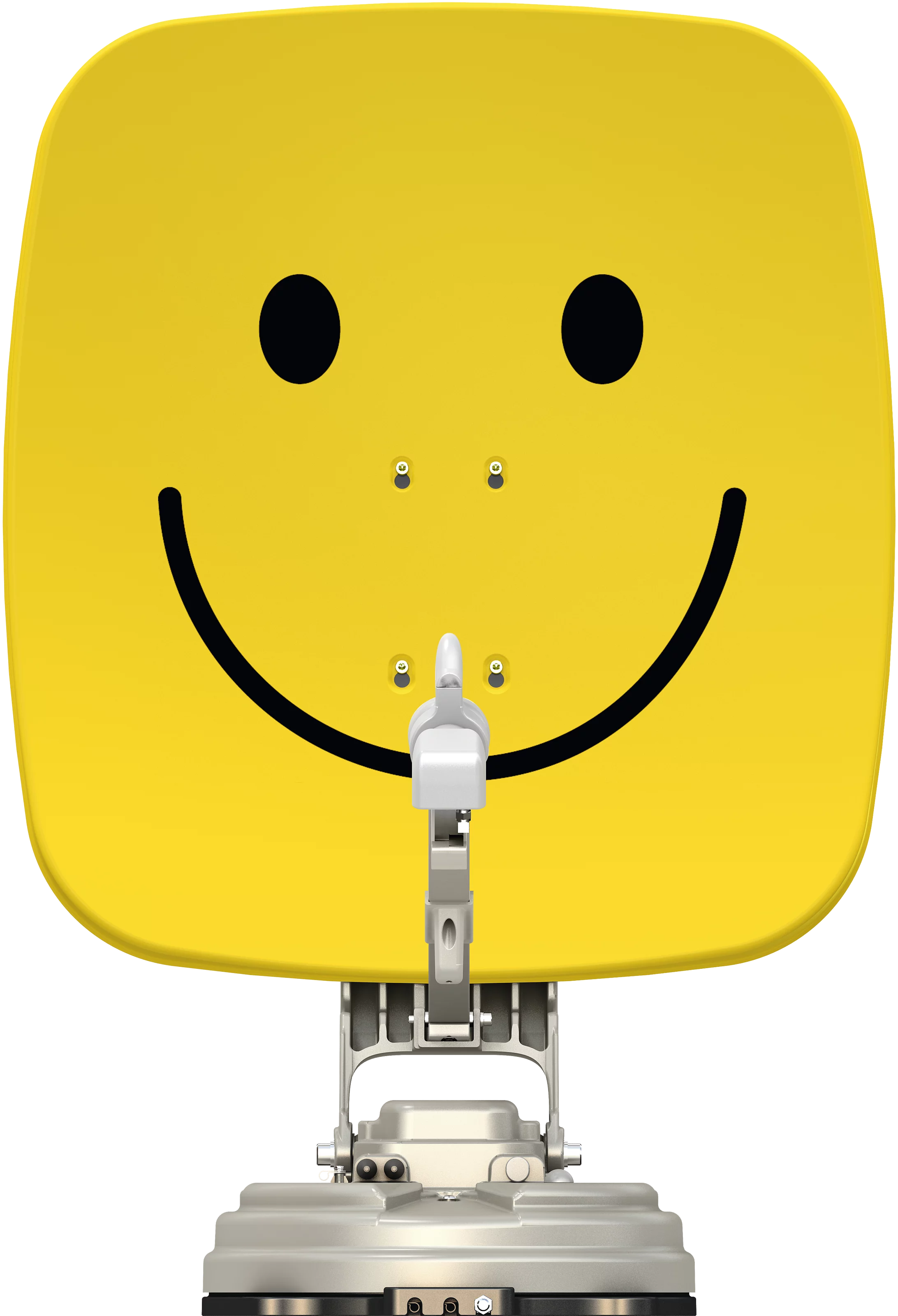

SKYRIDER 65 Single

Ambient operating conditions
IP class: X 6
Ambient temperature: -20 ... 60 °C

Local oscillator
Low band: 9,75 GHz
High band: 10,6 GHz

LNB control
DiSEqC: 1.0 / 1.1
Vertical: 10,5 ~ 14,5 V
Horizontal: 15,5 ~ 21 V

Dimensions / Weight
Device height (retracted): 175 mm
Device height (extended): 980 mm

General characteristics
Material: plastic
Colour: white

Handling/comfort
Satellite search time: Bis zu 180 s (typisch)
Maximum permissible speed: 130 km/h

Input frequency range
Low band: 10,7 - 11,7 GHz
High band: 11,7 - 12,75 GHz

Noise factor
Noise figure: typ. 0,7 dB

Output frequency range
Low band: 950 - 1.950 MHz
High band: 1.100 - 2.150 MHz

Power consumption
In operation: 50 W / 4 A max. (während der Satellitensuche)

Power supply
Nominal voltage: DC 12 V
Power consumption: 170 mA (LNB)
Effective output: 50 W / 4,2 A max.

Prepared for
Number of clients: 1
Number of orbit positions: 10

Technical data
Outputs: 1
F/D: 0,6
G/T: 14,5
Gain: 35,7 dBi
Offset angle: 27 ° (EL 0 ~ 145° / AZ 390°)
Amplification: 55 ... 65 dB
Skew: -90 bis 90 °
Connector type: F socket
