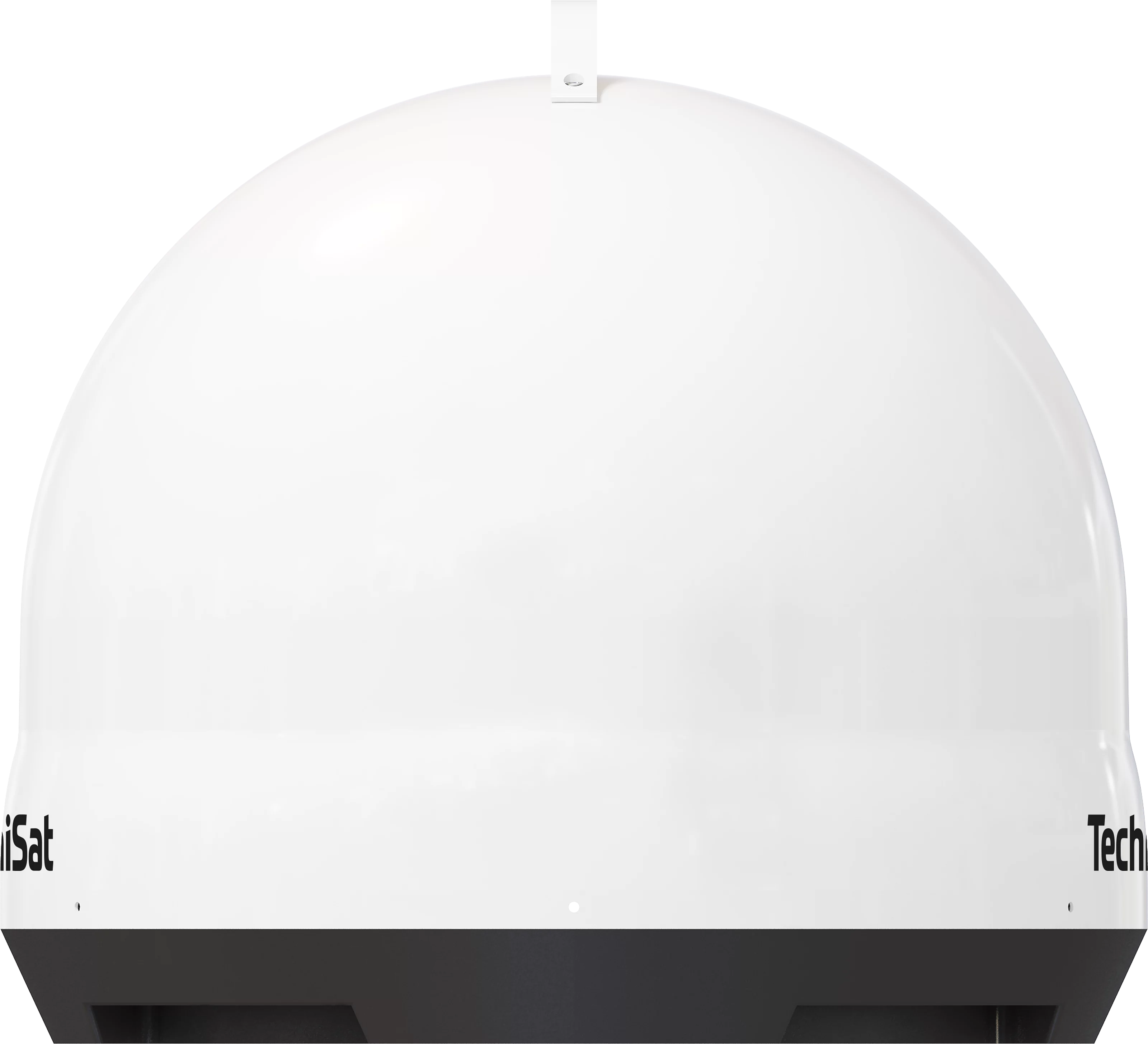

SKYRIDER DOME Twin

sonstiges
bf_filter_number_satellites: 4
bf_filter_number_of_participants: 2

Local oscillator
Low band: 9,75 GHz
High band: 10,6 GHz

LNB control
DiSEqC: 1.0 / 1.1
Vertical: 10,5 ~ 14,5 V
Horizontal: 15,5 ~ 21 V

Ambient operating conditions
IP class: X 6
Ambient temperature: -20 ... 60 °C

General characteristics
Material: plastic
Colour: white

Handling/comfort
Satellite search time: Bis zu 180 s (typisch)

Input frequency range
Low band: 10,7 - 11,7 GHz
High band: 11,7 - 12,75 GHz

Output frequency range
Low band: 950 - 1.950 MHz
High band: 1.100 - 2.150 MHz

Power consumption
In operation: 30 W max. (während der Satellitensuche)

Power supply
Nominal voltage: DC 12 ... 24 V
Power consumption: 170 mA (LNB)
Effective output: 18 W / 1,5 A max.

Prepared for
Number of clients: 2
Number of orbit positions: 4

Technical data
Outputs: 2
F/D: 0,23
G/T: 9,7
Gain: 31 dBi
Connector type: F socket
