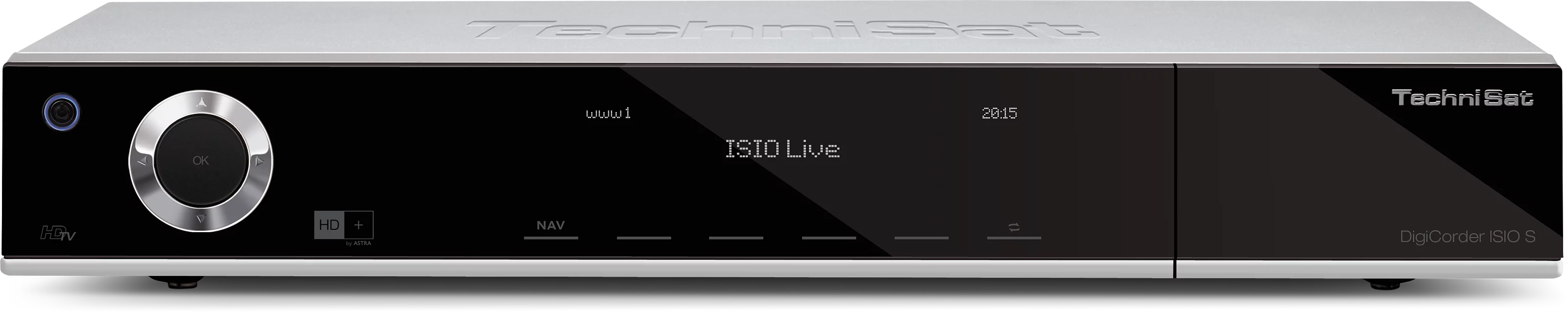

DIGICORDER ISIO S
Digital HDTV satellite receiver with internet functionality
| Hard drive | EAN | Colour | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|---|
| 500 GigaByte | 4019588517257 | silver | 0501/4725 | 4,1 kg | 2,8 kg | 43,5 x 6 x 19,9 cm | 49 x 16 x 26 cm |
| 500 GigaByte | 4019588507258 | black | 0500/4725 | 4,1 kg | 2,8 kg | 43,5 x 6 x 19,9 cm | 49 x 16 x 26 cm |
| 1.000 GigaByte | 4019588117259 | silver | 1001/4725 | 4,3 kg | 3 kg | 43,5 x 6 x 19,9 cm | 49 x 16 x 26 cm |
| 1.000 GigaByte | 4019588107250 | black | 1000/4725 | 4,3 kg | 3 kg | 43,5 x 6 x 19,9 cm | 49 x 16 x 26 cm |
| Top Features |
|---|
|
| Ambient operating conditions |
|---|
| Humidity: 10 ... 75 % |
| Ambient temperature: 5 ... 35 °C |
| LNB control |
|---|
| Vertical: 14 V |
| Horizontal: 18 V |
| Band switch: 22 kHz |
| Current consumption: max. 400 mA (kurzschlussfest) |
| DiSEqC: 1.0 / 1.2 / Sat-CR |
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Internet/Network |
|---|
| HbbTV: Yes |
| HTML 5 support: Yes |
| Card reader |
|---|
| SD card: Yes |
| Connections |
|---|
| HDMI™ (out): 1 |
| Digital electric audio output (S/PDIF): Yes |
| Digital optical audio out: Yes |
| Audio out analogue (RCA): Yes (rechts / links) |
| YUV (component output): 1 |
| Scart: 1 |
| Video Cinch out: 1 |
| Ethernet 10/100 (RJ-45): Yes (RJ-45) |
| F socket: 2 |
| Decryption system |
|---|
| Conax: Yes |
| Nagravision: Yes |
| CI+: Yes |
| Display |
|---|
| Picture in Picture (PIP): Yes (2 x SD, 1 x SD u. 1 x HD) |
| Freeze frame: Yes |
| Zoom: Yes |
| 720p: Yes |
| SD: Yes |
| HD: Yes |
| 1080i: Yes |
| Handling/comfort |
|---|
| Sleep timer: Yes |
| Alarm: Yes |
| Hotel mode |
|---|
| Protected access to hotel mode: Yes |
| Customisable start screen: Yes |
| Lockable volume: Yes |
| Menu locking: Yes |
| Control panel lock: Yes |
| Integrated LED clock: Yes |
| Selectable start source: Yes |
| Selectable start channel: Yes |
| Other features |
|---|
| OSD languages: English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian |
| Total programme memory: 5.000 |
| Regional channel selection: Yes |
| Power consumption |
|---|
| Standby fast start: 6,9 W |
| Standby LED: 0,25 W |
| In operation: 13 W |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Mains adapter: internal |
| Ready for reception |
|---|
| HD+: Yes |
| Supported formats & codecs |
|---|
| Video-Codecs: MPEG-2, MPEG-4, MPEG-1, H.264, DivX |
| Video-Formats: MKV, MP4, MOV, TS, TS4, VOB, WMV, Xvid, AVI |
| JPEG: Yes |
| Audio-Formats: AAC, MP3, M4A, MP2 |
| Tuner |
|---|
| Tuner type: DigitalSat |
| DVB-S tuner: 2 |
| Reception on: HDTV (MPEG-4 & 2), SD (MPEG-2) |
| Input impedance: 75 Ω |
| TECHNIROUTER ready: Yes |
| TECHNISELECT 12 ready: Yes |
| Tuner - Sat |
|---|
| Reception range: 950 ... 2.150 MHz |
| Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 , (autom. Anpassung) |
| DVB-S: QPSK |
| DVB-S: 2 ... 45 (MCPC / SCPC) |
| DVB-S2: 8PSK - QPSK |
| DVB-S2: 10 ... 31 (MCPC / SCPC) |
| FEC: RS, LDPC, BCH |
| Scope of Delivery |
|---|
| DigiCorder ISIO S, remote control with batteries, power cable, HDMI cable, instruction manual |
Test Results DIGICORDER ISIO S
Energiesparer
SatVision (07/2011)
Testsieger
CHIP (06/2013)
Note: Sehr gut (1,2)
Sat Empfang (03/2011)
Testsieger mit Testurteil Sehr gut (94,3 %)
SatVision (07/2011)
