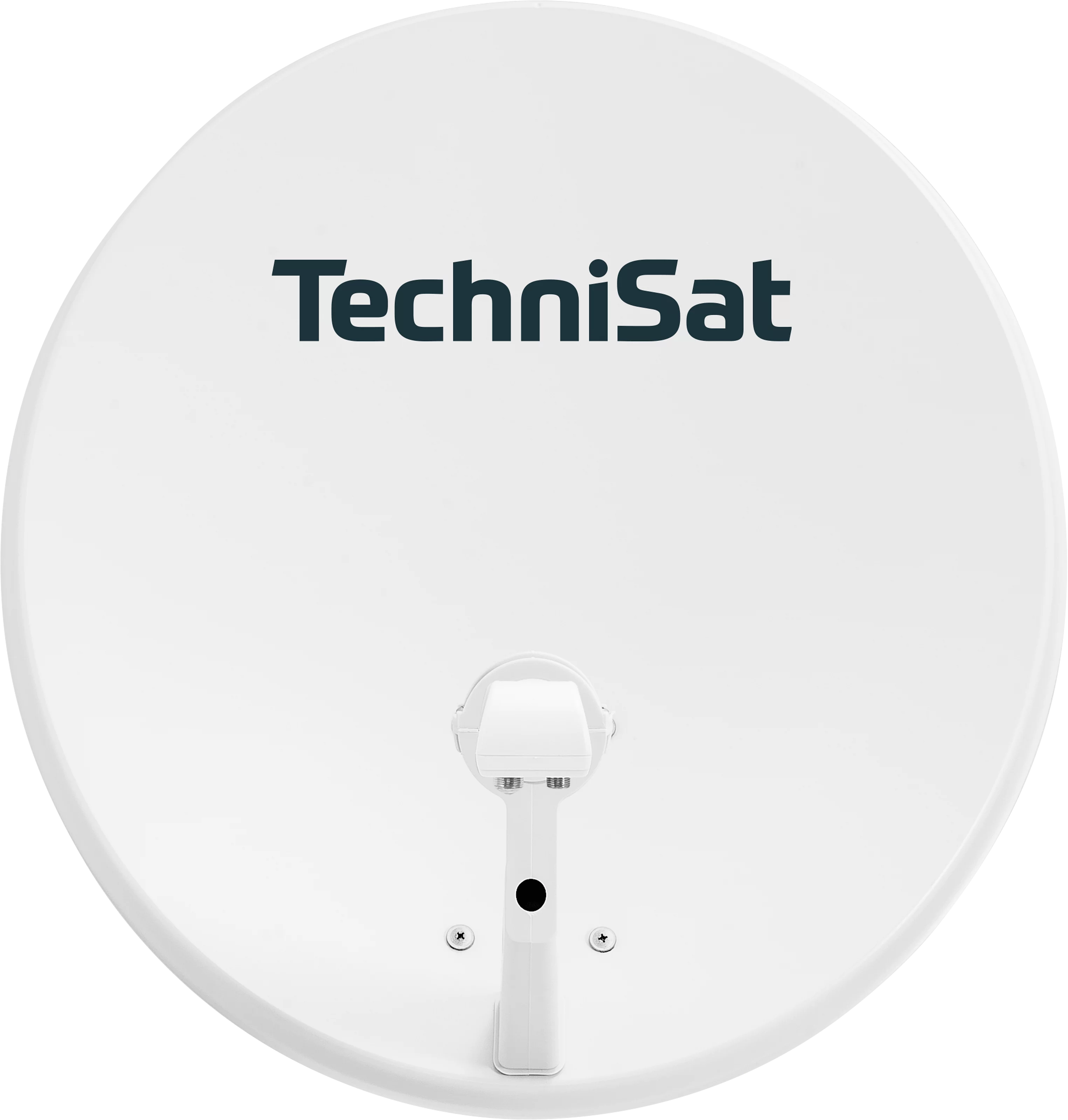

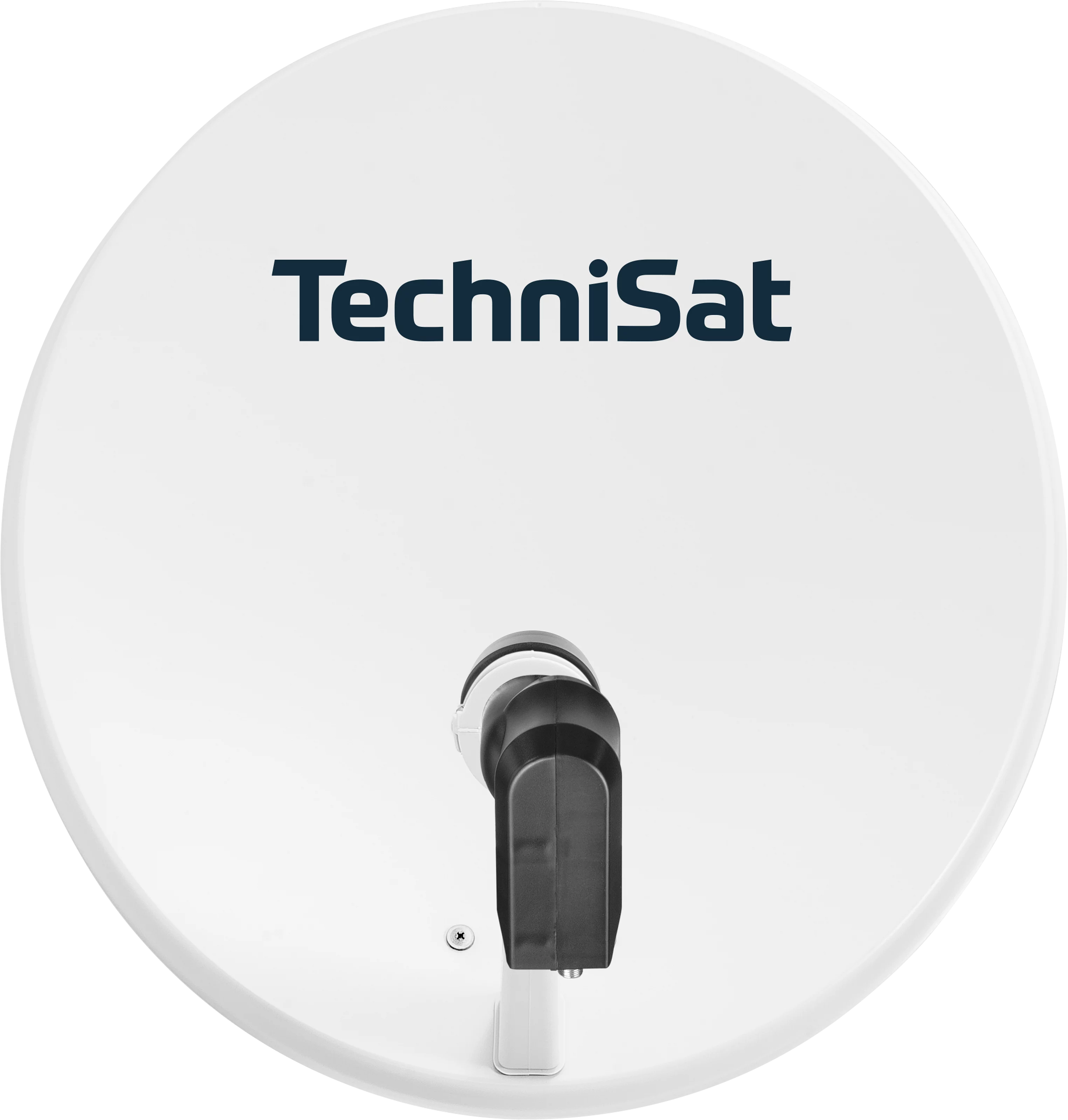

TECHNITENNE 60 with Twin-LNB
60 cm digital satellite antenna made of steel with twin LNB
| EAN |
Colour |
Item no. |
Weight |
Device (W x H x D) |
Box |
| 4019588136823 |
anthracite |
1360/2882 |
2,1 kg |
56 x 65 x 50 cm |
58 x 65,4 x 13,4 cm |
| 4019588106826 |
light grey |
1060/2882 |
2,1 kg |
56 x 65 x 50 cm |
58 x 65,4 x 13,4 cm |
| Local oscillator |
| Low band: 9,75 GHz |
| High band: 10,6 GHz |
| Accuracy: ± 1 MHz |
| Temperature drift: ± 0,5 MHz |
| Phase noise: -75 @10kHz |
| Filter-Navigation |
| Features: with LNB |
| Number satellites: 1 |
| Diameter: 60 cm |
| Number participants: 2 |
| LNB control |
| Vertical: 10,5 ... 14 V |
| Horizontal: 16 ... 23 V |
| Band switch: 22 kHz |
| General characteristics |
| Material: steel |
| Material strength: 0,5 mm |
| Coating: painted |
| Input frequency range |
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Output frequency range |
| Low band: 950 ... 1.950 MHz |
| High band: 1.100 ... 2.150 MHz |
| Prepared for |
| Number of orbit positions: 1 |
| Number of clients: 2 |
| Technical data |
| Rated measurement: 0,56 m |
| F/D: 0,49 |
| G/T: 14,5 |
| Offset angle: 27,77 ° |
| Gain: 35,3 dBi @11.30GHz |
| Mast Ø: 32 ... 50 mm |
| Feed reception: 40 mm |
| Outputs: 2 |
| Connector type: F female |
| Impedance: 75 Ω |
| Amplification: 58 ... 64 dB (LNB) |
| Scope of Delivery |
| TECHNITENNE 60, Universal-Twin-LNB, Montageanleitung |
