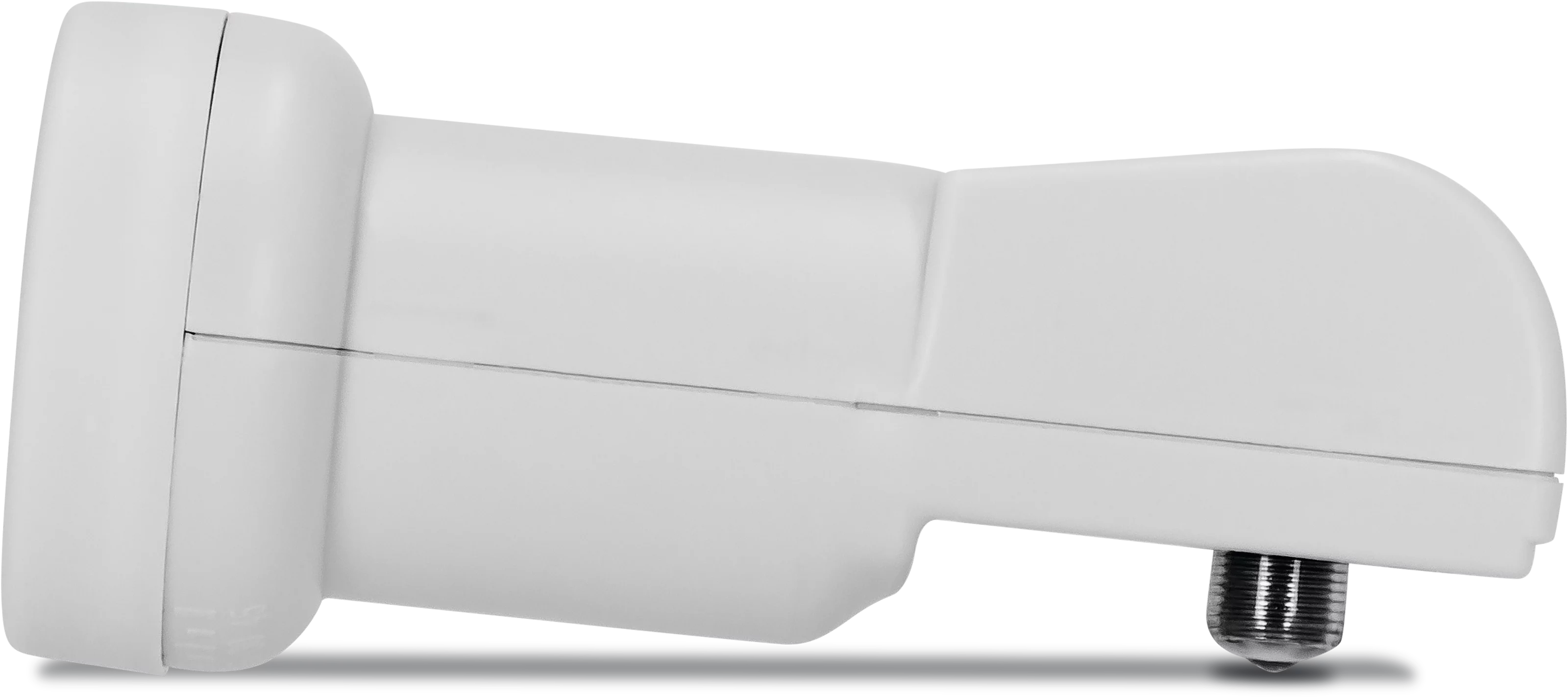

Universal-Twin-LNB

Universal-Twin-LNB

Digital-LNB für den 2-Teilnehmer-Empfang

Colour	EAN	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
white	4019588208827	0020/8882	180 g	102 g	5,4 x 5,4 x 12,3 cm	6 x 6 x 13,2 cm

Top Features

Twin LNB: signal converter for two-user reception, for converting TV, radio, and multimedia content broadcast digitally, analog, or in HD via satellite

The LNB can be installed on common satellite systems with a 40 mm feed clamp. The LNB has two outputs, each of which can be connected directly to a receiver

Both receivers can operate independently, as both LNB outputs carry the full satellite frequency range

This twin LNB supports only dual-participant reception. Expansion of the reception unit with a multiswitch is not intended

Local oscillator
Low band: 9,75 GHz
High band: 10,6 GHz
Accuracy: ± 1 MHz
Temperature drift: ± 0,5 MHz
Phase noise: -75 @10kHz

LNB control
Band switch: 22 kHz
Vertical: 10,5 ... 14 V
Horizontal: 16 ... 23 V

Ambient operating conditions
Ambient temperature: -40 ... 70 °C
Humidity: 10 ... 95 %

Input frequency range
Low band: 10,7 ... 11,7 GHz
High band: 11,7 ... 12,75 GHz

Noise factor
Lower frequency range: 0,7 dB max.
Upper frequency range: 0,7 dB max.
Noise figure: typ. 0,1 dB

Output frequency range
Low band: 950 ... 1.950 MHz
High band: 1.100 ... 2.150 MHz

Power supply
LNB voltage supply: 10,5 ... 23 V
Power consumption: max. 140 mA

Prepared for
Number of clients: 2
Number of orbit positions: 1

Technical data
Outputs: 2
Impedance: 75 Ω
Feed reception: 40 mm
Connector type: F female
Amplification: 58 ... 64 dB

Scope of Delivery
Universal-Twin-LNB
