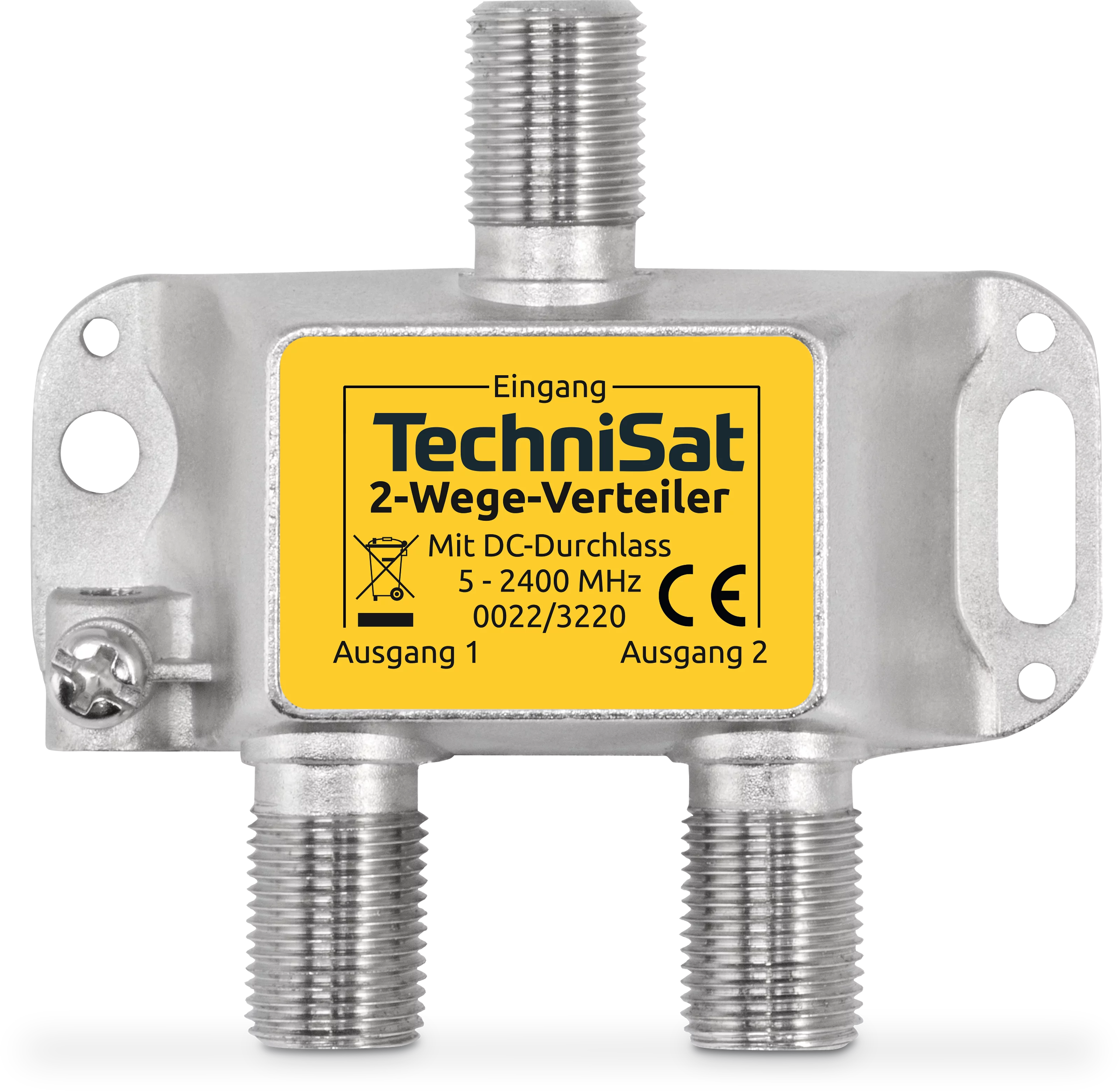

2 way satellite splitter
for the 2-fold distribution or merger of Sat signals
| Colour |
EAN |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| silver |
4019588223202 |
0022/3220 |
60 g |
41 g |
5,5 x 1,7 x 5,4 cm |
5,5 x 1,7 x 5,4 cm |
| Decoupling |
| 5 - 862 MHz: Typ. 16 dB (< 40 MHz = 8 dB) |
| 950 - 1750 MHz: Typ. 15 dB |
| 1750 - 2150 MHz: Typ. 12 dB |
| Return loss |
| 5 - 862 MHz: Typ. 16 dB |
| 950 - 1750 MHz: Typ. 12 dB |
| 1750 - 2150 MHz: Typ. 12 dB |
| Technical data |
| Input: 1 |
| Outputs: 2 |
| Frequency range: 5 ... 2.400 MHz |
| Shielding factor: ≥ 75 dB EN 50083-2 (Class A) |
| Connector type: F female |
| Impedance: 75 Ω |
| Transmission loss |
| 5 - 862 MHz: Typ. 4 dB (± 1) |
| 950 - 1750 MHz: Typ. 5 dB (± 1,5) |
| 1750 - 2150 MHz: Typ. 7 dB (± 2) |
| Scope of Delivery |
| 2-Wege Sat-Verteiler |
