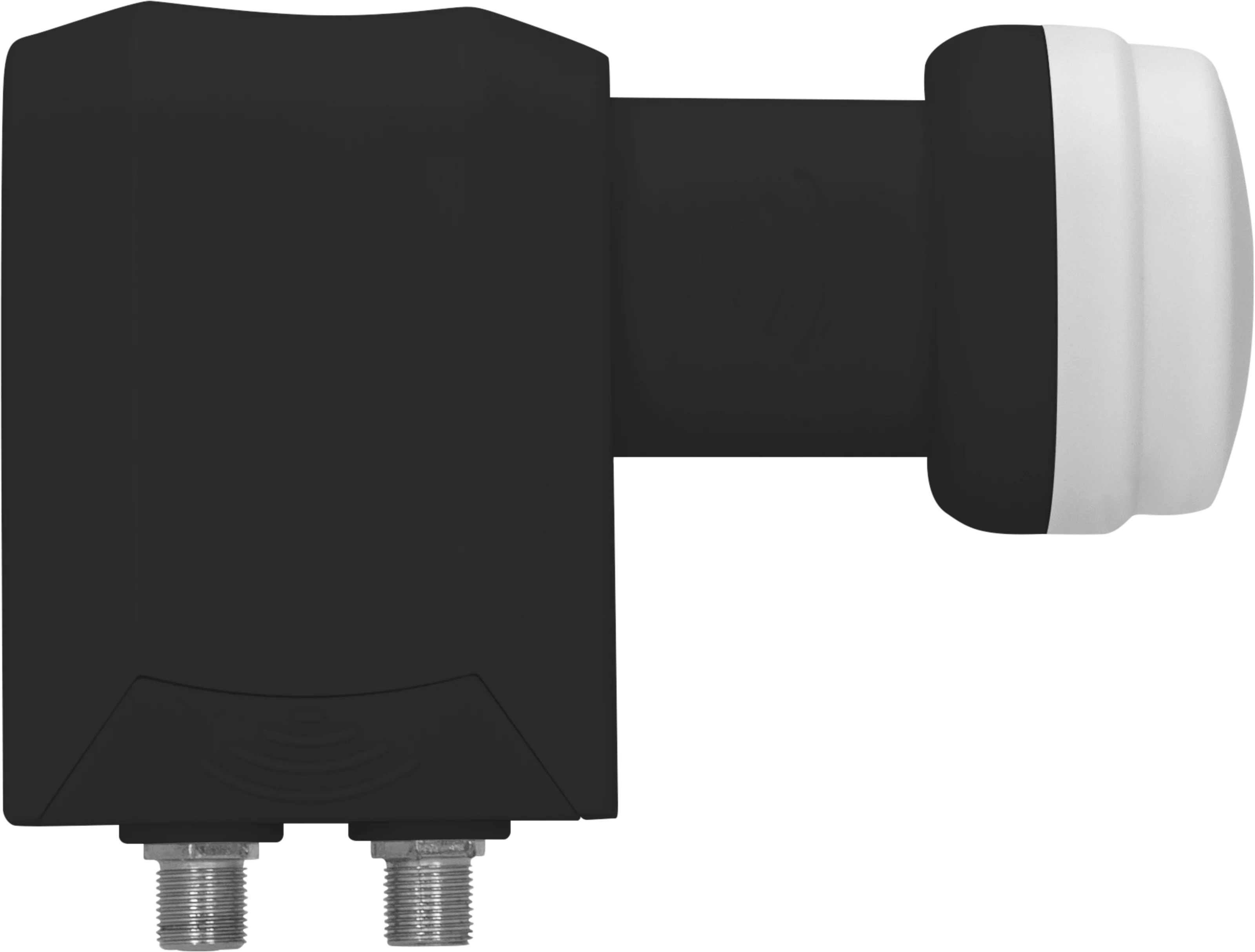

Universal-Twin-LNB
Digital LNB with 2 legacy outputs
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588083820 |
black |
0000/8382 |
170 g |
138 g |
5,4 x 10,1 x 13 cm |
10,6 x 13,8 x 6,1 cm |
| Top Features |
- Reception for up to two users: the Twin LNB can supply up to two devices (receiver/TV) with satellite signal; program selection is independent. Expansion via multiswitch is not possible
- One orbital position: The LNB receives signals from a single orbital position, typically Astra 19.2° East in Germany
- Universally usable: The LNB fits all satellite dishes with a 40 mm feed clamp and can be easily installed or replaced
- Interference-free reception: The LNB is protected from LTE mobile interference by its design
|
| sonstiges |
| bf_filter_number_satellites: 1 |
| bf_filter_number_of_participants: 2 |
| Local oscillator |
| Low band: 9,75 GHz |
| High band: 10,6 GHz |
| Accuracy: ± 1 MHz |
| Temperature drift: ± 1 MHz |
| Phase noise: -75 @10kHz |
| LNB control |
| Vertical: 11,5 ... 14,5 V |
| Horizontal: 16 ... 19 V |
| Band switch: 22 kHz |
| Ambient operating conditions |
| Humidity: 10 ... 95 % |
| Ambient temperature: -40 ... 70 °C |
| Input frequency range |
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Noise factor |
| Noise figure: typ. 0,9 dB |
| Output frequency range |
| Low band: 950 ... 1.950 MHz |
| High band: 1.100 ... 2.150 MHz |
| Power supply |
| LNB voltage supply: 11,5 ... 19 V |
| Power consumption: max. 140 mA |
| Prepared for |
| Number of clients: 2 |
| Number of orbit positions: 1 |
| Technical data |
| Feed reception: 40 mm |
| Outputs: 2 |
| Amplification: 58 ... 64 dB |
| Impedance: 75 Ω |
| Connector type: F female |
| Scope of Delivery |
| Universal-Twin-LNB |
