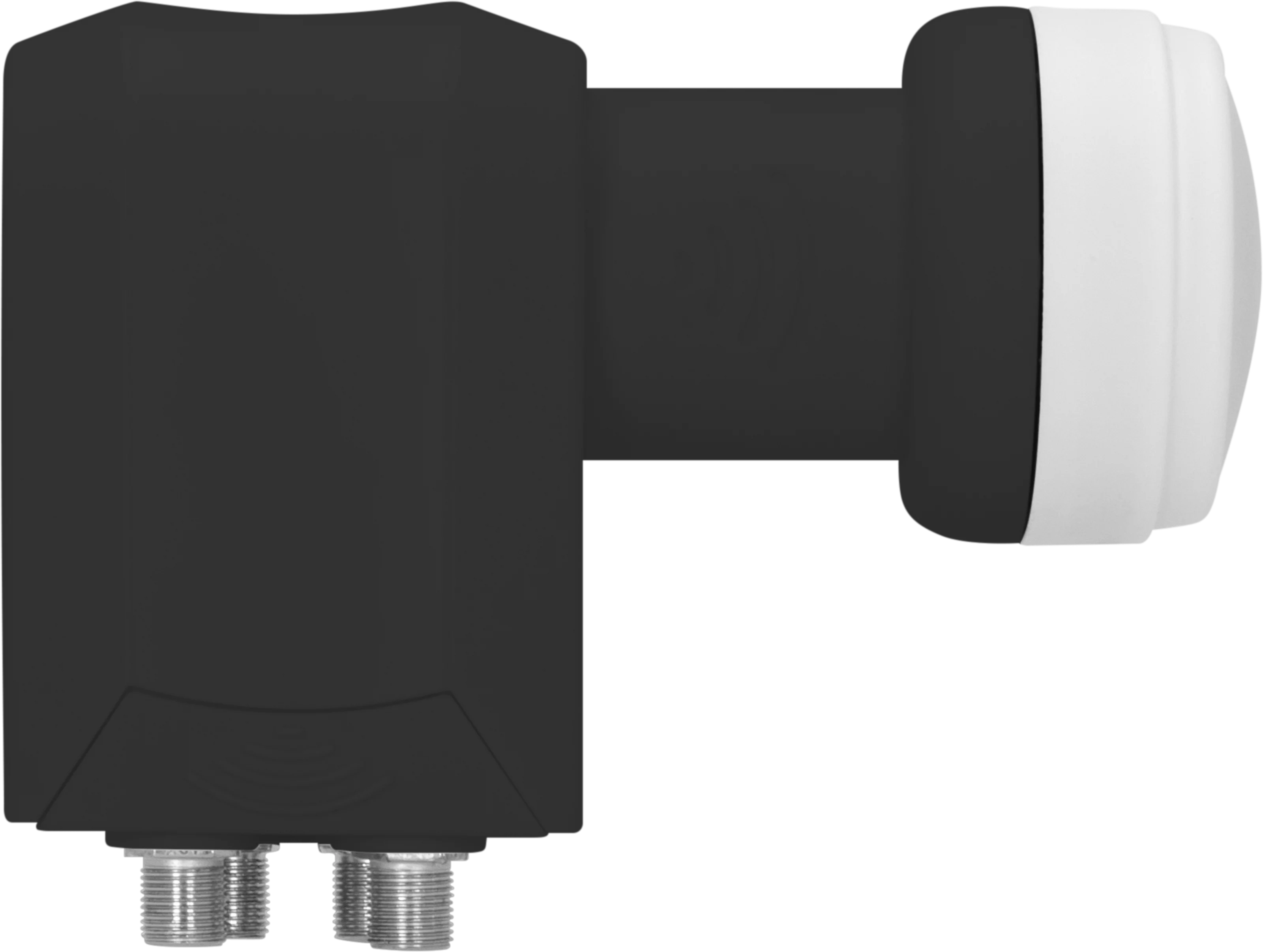

Digital LNB for multi-switch distribution

EAN	Colour	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
4019588083806	black	0000/8380	232 g	198 g	5,4 x 10,1 x 13,3 cm	10,6 x 13,8 x 6,1 cm

Top Features

For multiswitches & unlimited participants: 4-output LNB for supplying multiswitches, ideal for receiving Astra, Eutelsat, Hotbird, Türksat, or any other satellite

Latest technology: Advanced design ensures excellent digital picture and sound quality for a razor-sharp TV experience in Full HD, 3D, UHD, 4K, 8K / Very low power consumption (200 mA), noise figure 0.75 dB

Mobile signal shielding – LTE interference protection: The construction, LNB housing, and filters provide protection against interference (e.g., LTE, UMTS, GSM, DECT) / Signal amplification 60–67 dB.

Universally usable: The LNB is suitable for all common 40 mm feed holders (satellite dishes), and it can be quickly and easily replaced and installed

Weatherproof: The stylish design features a retractable plug cover for the F-connectors, resistant to heat and cold, a weather-resistant housing made of high-quality plastic – UV resistant

sonstiges
bf_filter_number_satellites: 1
bf_filter_number_of_participants: 4

Local oscillator
Low band: 9,75 GHz
High band: 10,6 GHz
Accuracy: ± 1 MHz
Temperature drift: ± 2,5 MHz
Phase noise: -85 @10kHz

LNB control
Vertical: 11,5 ... 14,5 V
Horizontal: 16 ... 19 V
Band switch: 22 kHz

Ambient operating conditions
Humidity: 10 ... 95 %
Ambient temperature: -40 ... 70 °C

Input frequency range
Low band: 10,7 ... 11,7 GHz
High band: 11,7 ... 12,75 GHz

Noise factor
Noise figure: typ. 0,75 dB

Output frequency range
Low band: 950 ... 1.950 MHz
High band: 1.100 ... 2.150 MHz

Power supply
LNB voltage supply: 11,5 ... 19 V
Power consumption: 200 mA

Prepared for
Number of orbit positions: 1

Technical data
Outputs: 4
Feed reception: 40 mm
Connector type: F female
Amplification: 60 ... 67 dB
Impedance: 75 Ω

Scope of Delivery
Universal-Quattro-LNB
