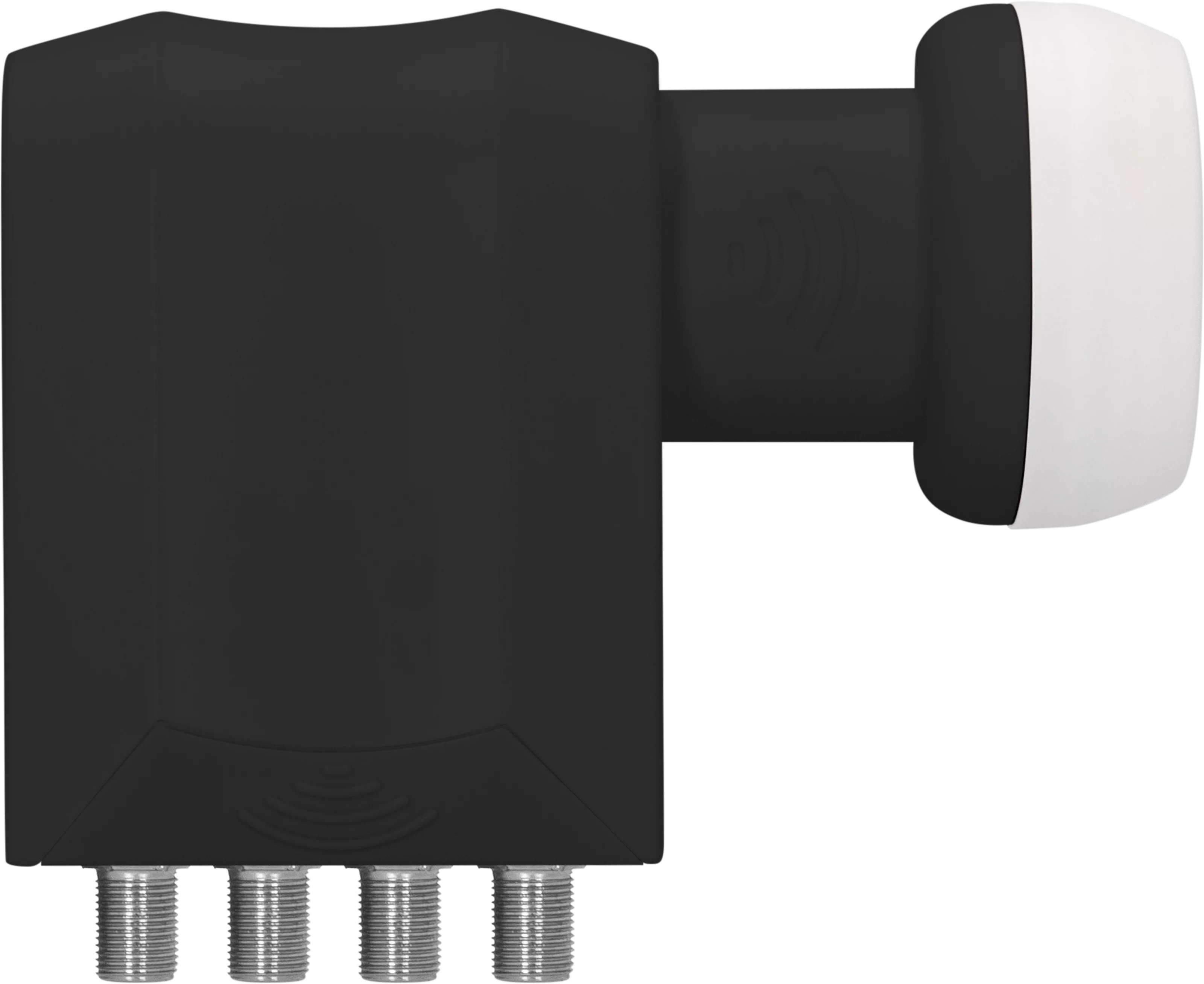

Universal Octo-LNB
Digital LNB with 8 legacy outputs
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588083981 |
black |
0000/8398 |
302 g |
266 g |
5,7 x 10,9 x 13,4 cm |
11,5 x 14 x 6,4 cm |
| Top Features |
- Reception for up to eight users: the Octo LNB can supply up to eight users (receivers/TVs) with satellite signal, who can independently select their programs
- One orbital position: The LNB receives signals from one orbital position, which is usually Astra 19.2° East in Germany
- Universally applicable: The LNB is suitable for all satellite dishes with a 40 mm feed clamp and can be easily installed or replaced
- Interference-free reception: The LNB’s design provides protection against LTE mobile interference
|
| sonstiges |
| bf_filter_number_of_participants: 8 |
| bf_filter_number_satellites: 1 |
| Local oscillator |
| Low band: 9,75 GHz |
| High band: 10,6 GHz |
| Accuracy: ± 1 MHz |
| Temperature drift: ± 2,5 MHz |
| Phase noise: -83 @10kHz |
| LNB control |
| Vertical: 11,5 ... 14,5 V |
| Horizontal: 16 ... 19 V |
| Band switch: 22 kHz |
| Ambient operating conditions |
| Humidity: 10 ... 95 % |
| Ambient temperature: -40 ... 70 °C |
| Input frequency range |
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Noise factor |
| Noise figure: typ. 1 dB |
| Output frequency range |
| Low band: 950 ... 1.950 MHz |
| High band: 1.100 ... 2.150 MHz |
| Power supply |
| Power consumption: 210 mA |
| Prepared for |
| Number of orbit positions: 1 |
| Number of clients: 8 |
| Technical data |
| Impedance: 75 Ω |
| Feed reception: 40 mm |
| Connector type: F female |
| Outputs: 8 |
| Amplification: 58 ... 65 dB |
| Scope of Delivery |
| Universal-Octo-LNB |
