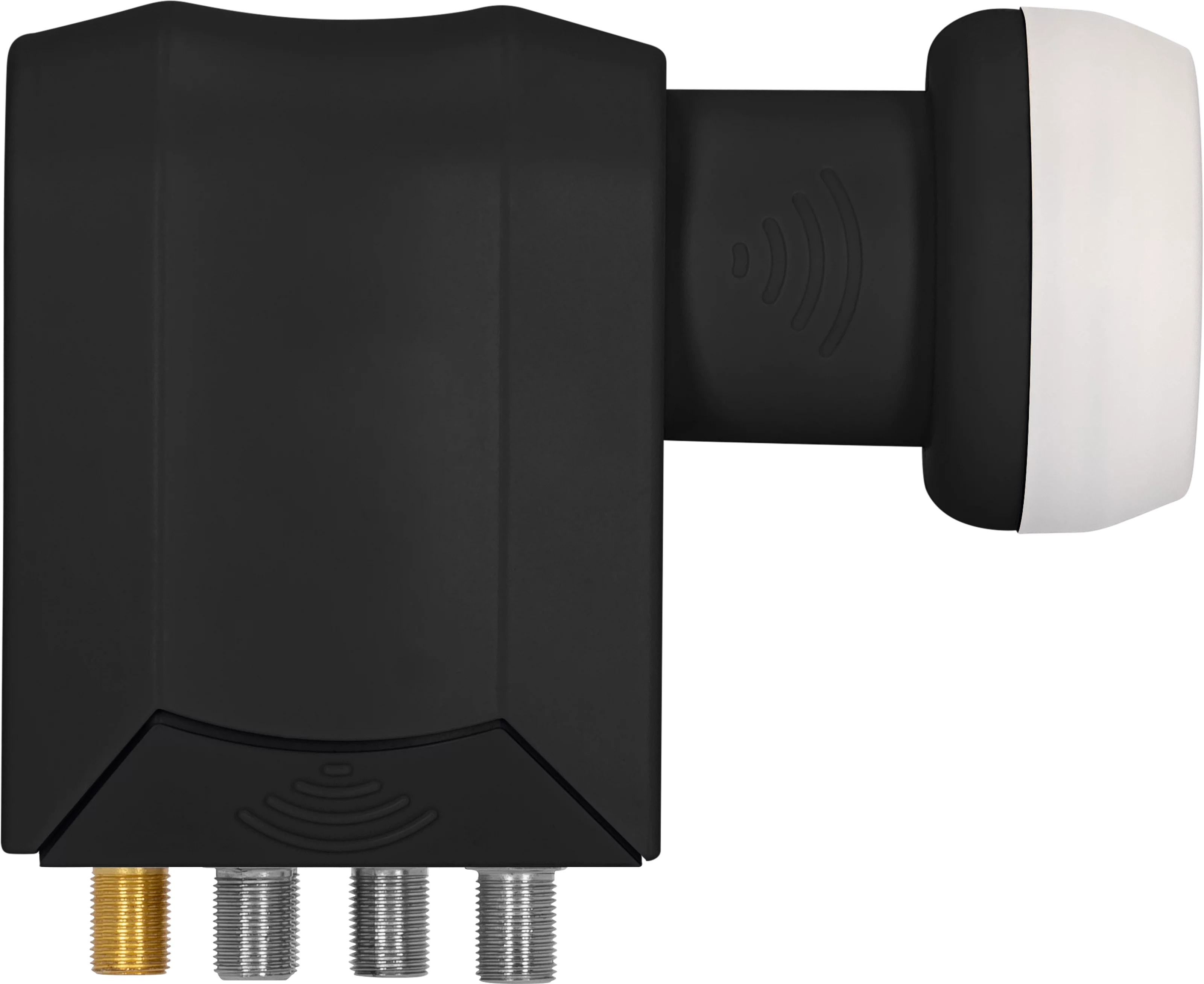

Universal SCR 4+4 LNB
Satellite channel router LNB with 4 legacy outputs
| VPE Karton |
VPE Palette |
EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 30 |
720 |
4019588083882 |
black |
0000/8388 |
282 g |
250 g |
5,4 x 5,4 x 12,4 cm |
11 x 13,3 x 6 cm |
| Top Features |
- With the signal converter, you can supply up to 4 users via one coaxial cable and an additional 4 users via universal outputs
- Ideal solution for supplying signal to multi-tuner devices (Twin/Quattro receivers) to watch one program and record one or more others simultaneously (DVR)
- The four additional universal outputs (4 x Legacy) offer added flexibility for connecting non-SCR-compatible receivers
- The LNB is protected from LTE mobile interference by its design
|
| sonstiges |
| bf_filter_number_of_participants: 8 |
| bf_filter_number_satellites: 1 |
| Local oscillator |
| Low band: 9,75 GHz |
| High band: 10,6 GHz |
| Accuracy: ± 1 MHz |
| Temperature drift: ± 2 MHz |
| Phase noise: -83 @10kHz |
| LNB control |
| Vertical: 11,5 ... 15,5 V |
| Horizontal: 16 ... 19 V |
| Band switch: 22 kHz |
| DiSEqC: EN50494 |
| Ambient operating conditions |
| Ambient temperature: -40 ... 70 °C |
| Humidity: 10 ... 95 % |
| Input frequency range |
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Noise factor |
| Noise figure: typ. 0,7 dB |
| Output frequency range |
| Low band: 950 ... 1.950 MHz |
| High band: 1.100 ... 2.150 MHz |
| Power supply |
| Power consumption: 250 mA |
| Single-cable output |
| Output frequency: 950 ... 2.150 MHz |
| Number of output channels: 4 |
| Frequency of the output channels: 1284, 1400, 1516, 1632 MHz |
| Technical data |
| Outputs: 5 ; 1x SCR, 4x Legacy |
| Connector type: F female |
| Feed reception: 40 mm |
| Amplification: 57 dB |
| Impedance: 75 Ω |
| Scope of Delivery |
| Universal-SCR 4+4 LNB |
