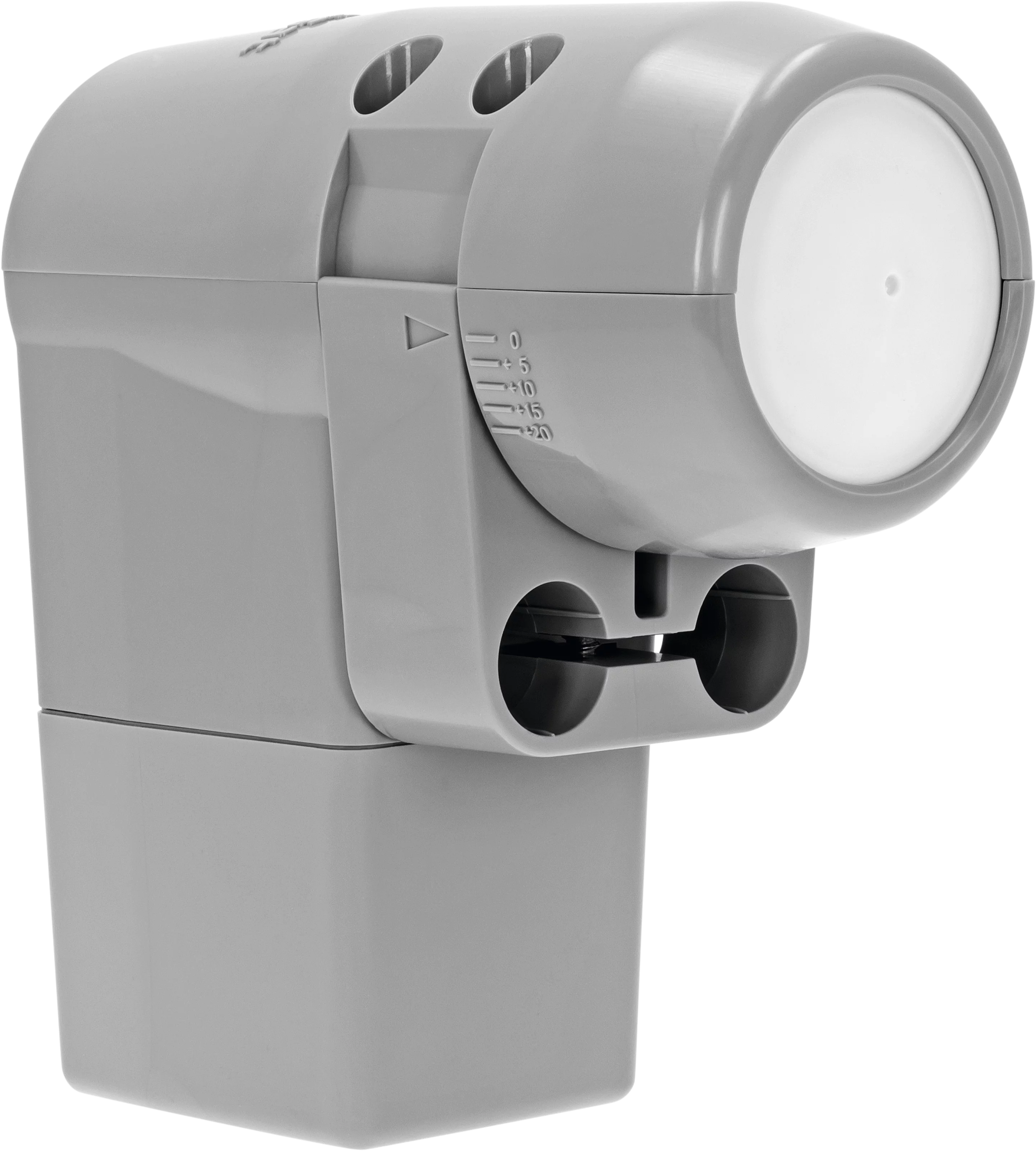

UNYSAT Universal-SCR 8+6 LNB
Single-cable LNB for 8 participants and 6 additional legacy outputs
| Colour | EAN | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| grey | 4019588109865 | 0010/8986 | 470 g | 416 g | 13,5 x 14,5 x 6 cm | 15 x 17 x 7,5 cm |
| Top Features |
|---|
|
| sonstiges |
|---|
| bf_filter_number_satellites: 1 |
| bf_filter_number_of_participants: 14 |
| Local oscillator |
|---|
| Low band: 9,75 GHz |
| High band: 10,6 GHz |
| Accuracy: ± 1 MHz |
| Temperature drift: ± 1,5 MHz |
| Phase noise: -75 @10kHz |
| LNB control |
|---|
| Band switch: 22 kHz |
| DiSEqC: EN50494 |
| Vertical: 11 ... 14 V |
| Horizontal: 16 ... 20 V |
| Ambient operating conditions |
|---|
| Ambient temperature: -40 ... 60 °C |
| Humidity: 10 ... 95 % |
| Input frequency range |
|---|
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Noise factor |
|---|
| Noise figure: typ. 0,8 dB |
| Output frequency range |
|---|
| Low band: 950 ... 1.950 MHz |
| High band: 1.100 ... 2.150 MHz |
| Power supply |
|---|
| Power consumption: 250 mA |
| Prepared for |
|---|
| Number of clients: 14 |
| Number of orbit positions: 1 |
| Single-cable output |
|---|
| Output frequency: 950 ... 2.150 MHz |
| Number of output channels: 8 |
| Frequency of the output channels: 1284, 1400, 1516, 1632, 1748, 1864, 1980, 2096 MHz |
| Technical data |
|---|
| Outputs: 14 ; 8x SCR, 6x Legacy |
| Feed reception: For SATMAN |
| Skew: -20 ... 20 ° |
| Connector type: F female |
| Impedance: 75 Ω |
| Amplification: 55 dB |
| Scope of Delivery |
|---|
| UNYSAT Universal-SCR 8+6 LNB |
