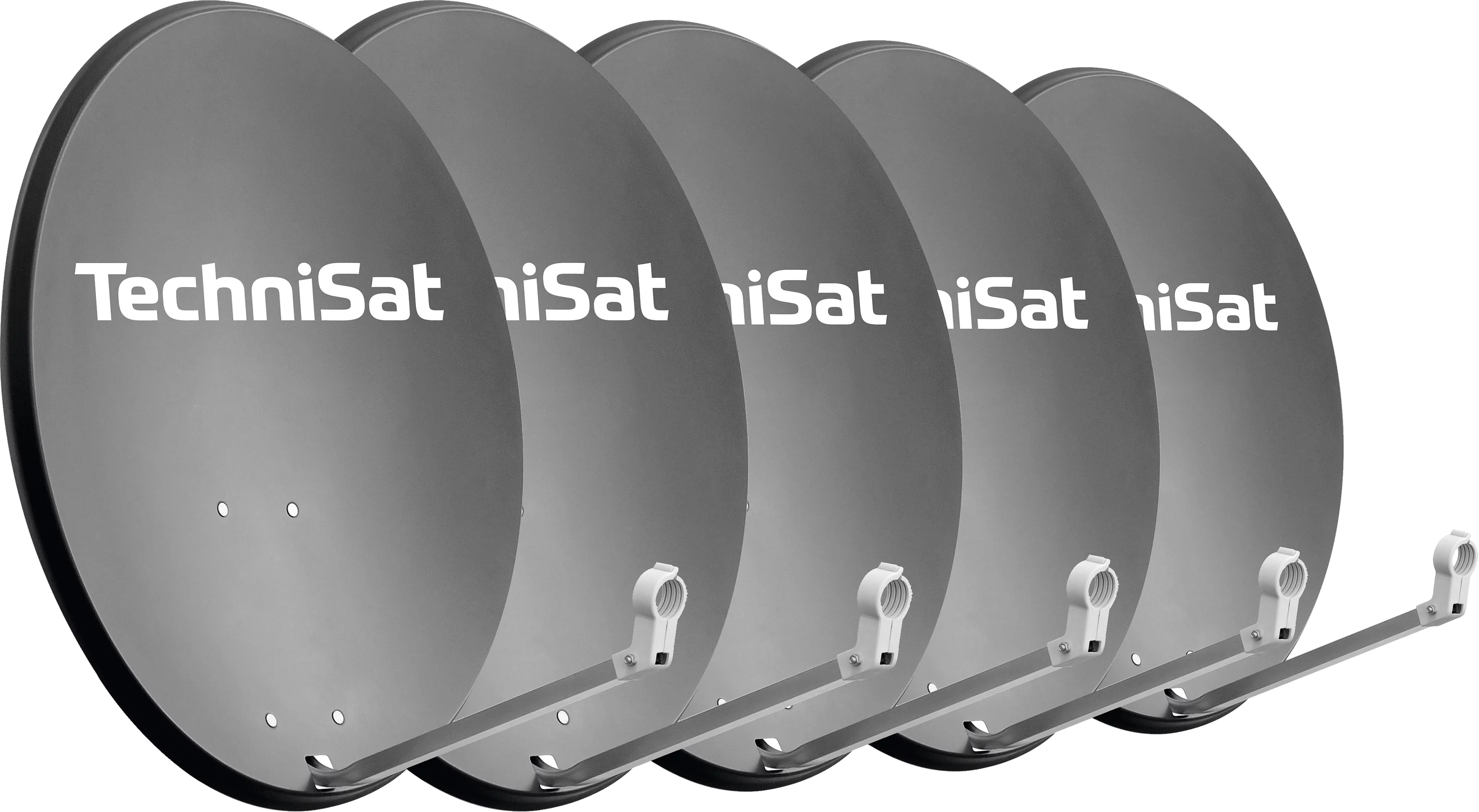

TECHNIDISH 80
Satellite antenna with a diameter of 80 cm with an AZ/EL holder for receiving a digital DVB-S/DVB-S2 signal.
| Colour |
EAN |
Item no. |
| grafirowy |
4019588805309 |
1080/0530 |
| grafirowy |
4019588805309 |
1080/0530 |
| grafirowy |
4019588805309 |
1080/0530 |
| General characteristics |
| Top features: For 1 to multiple participants |
| Top features: 1 orbital position (for example Astra 19.2° East) |
| Top features: Ideal for wall and roof mounting |
| Top features: For distribution to multiple participants on demand, TechniSat distribution elements are required |
| Coating: Powder-coated on both sites |
| Material: steel |
| Input frequency range |
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Prepared for |
| Number of orbit positions: 1 |
| Technical data |
| Rated measurement: 0,8 m |
| F/D: 0,64 |
| Offset angle: 26 ° |
| Gain: 38,1 dBi @11,3 GHz |
| Mast Ø: 50 mm |
| Feed reception: LNB retaining clamp (40mm) |
| Scope of Delivery |
| TECHNIDISH 80 satellite dish, AZ/EL holder, 40 mm mount, user manual, converter * (depending on the set). |
