DIGITENNE TT2

DIGITENNE TT2

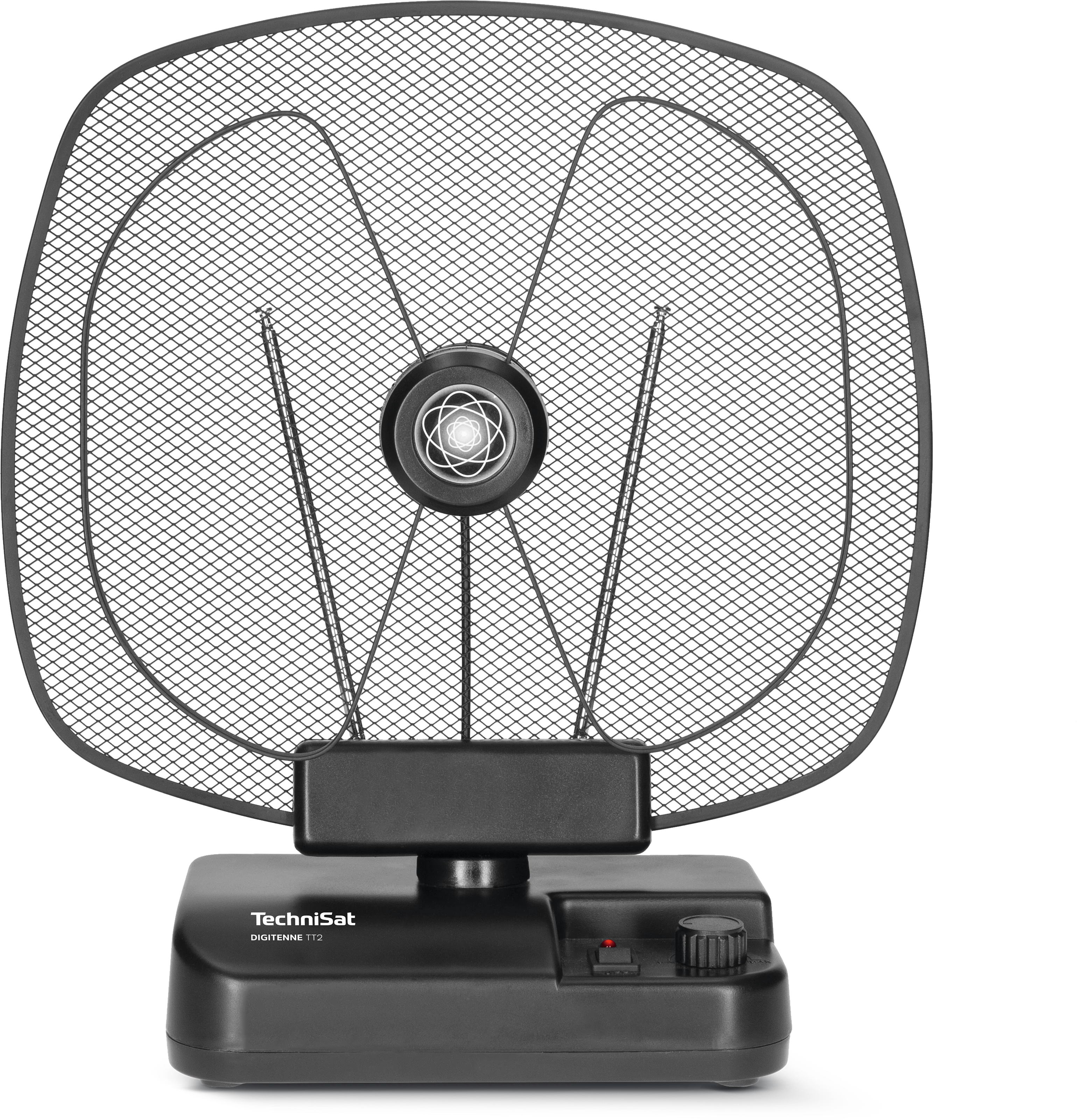

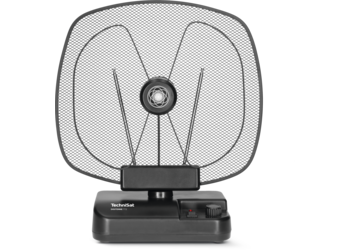

Indoor antenna with built-in amplifier for the reception of DVB-T, DAB+ and FM
Colour EAN Item no. Weight (Box) Weight Device (W x H x D) Box
black 4019588432000 0004/3200 882 g 636 g 29,5 x 33,2 x 11,3 cm 28,5 x 35 x 12,75 cm
Top Features
  • Adjustable 36 dB full-band amplifier antenna with LTE4 filter for receiving TV via DVB-T/DVB-T2, DAB+ digital radio, and FM signals
  • The active indoor dipole antenna DIGITENNE TT2, with power supply and adjustable amplifier performance, receives digital TV programs via DVB-T even with weak signal at the location
  • The antenna receives DAB+ radio in the best digital quality and is also suitable for FM reception. Power is supplied via the integrated power supply
  • An additional LTE4 filter prevents interference from mobile signals, providing the DIGITENNE with optimal reception quality and signal amplification
Amplification
UKW: 30 dB (adjustable)
VHF: 30 dB (adjustable)
UHF: 36 dB (adjustable)
Power supply
Mains adapter: intern
Nominal voltage: 230 V
Frequency: 50 ... 60 Hz
Effective output: 3,5 W
Reception range
UKW: 87,5 ... 108 MHz
VHF: 108 ... 230 MHz
UHF: 470 ... 790 MHz
Technical data
Noise factor: < 5 dB
Protection class: IP20
Connector type: IEC
Impedance: 75 Ω
Scope of Delivery
DIGITENNE TT2, user manual
