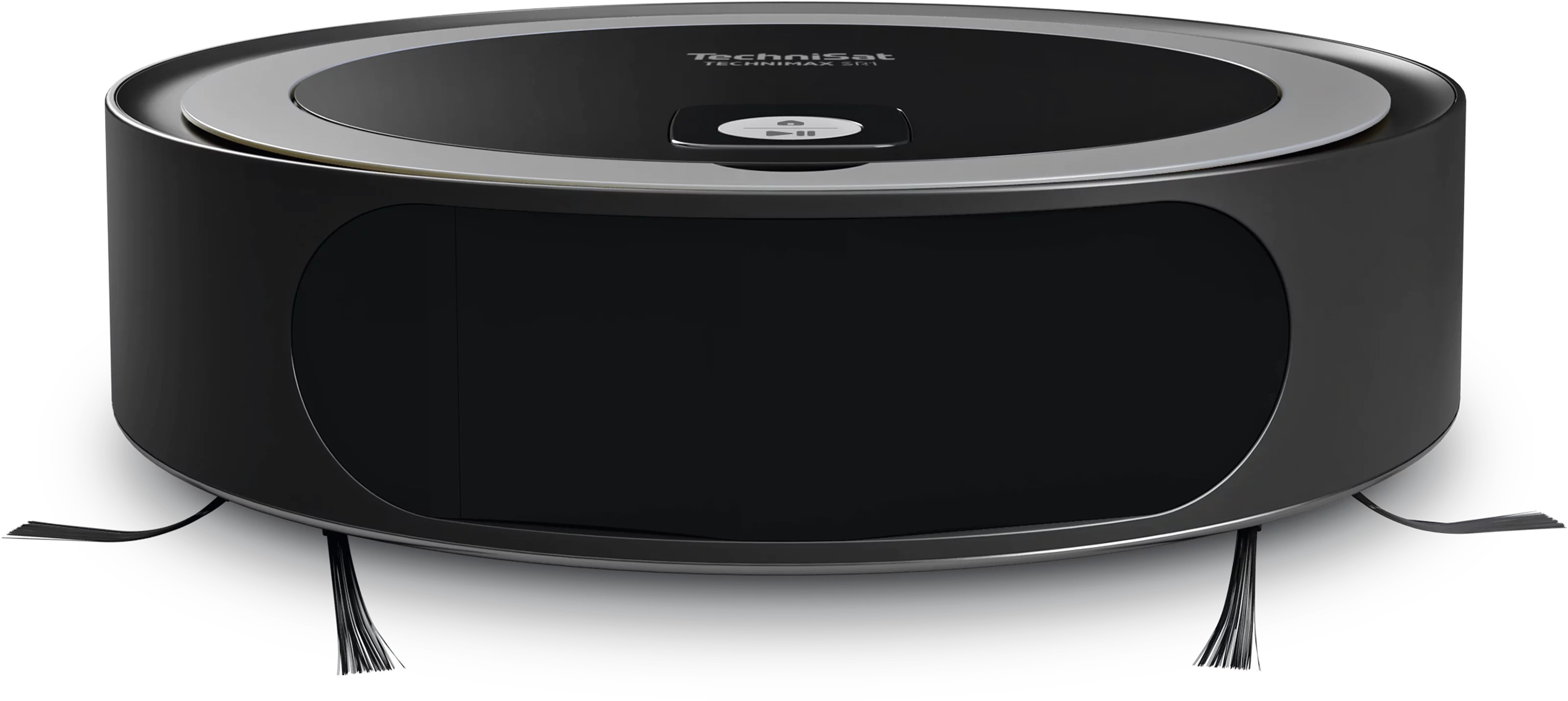

TECHNIMAX SR1

TECHNIMAX SR1

Intelligent vacuum robot with laser navigation
EAN Colour Item no. Weight (Box) Weight Device (W x H x D) Box
4019588070301 black 0000/7030 6,5 kg 3,5 kg 34,6 x 9 x 34,6 cm 51 x 14,8 x 40,6 cm
Top Features
  • Creation of virtual rooms, cleaning zones and no-go areas
  • Durable brushless motor with strong cleaning ability
  • Permanent visual map thanks to laser sensor
  • Thorough corner and edge cleaning, flat construction only 9cm in height
  • Schedule for automated cleaning
  • Android & iOS app with remote access
  • Particularly allergy friendly thanks to HEPA 13 filters
  • Amazon Alexa voice control
  • Easy setup and operation with automatic room detection
  • Intelligent, precise laser navigation
Navigation
map: Permanent visual map
virtual cleaning zones: Yes
virtual walls: Yes
no-go areas: Yes
Create rooms: Yes
Multiple floors: Yes (bis zu 3)
Cleaning characteristics
cleaning modes: Automatic, spot, schedule, room, area
cleaning area: up to 200 m²
vacuum power: 36 W
suction power (pressure differential): Bis zu 1.850 Pa
power levels: Eco, normal, turbo
filter type: HEPA 13 (>99.95%)
dust container: 0,6 l
level monitor: Yes
passable rugs: up to 15 mm
noise level: 55 - 63 dB
brushless motor: Yes
size of the main brush: 160 mm
RPM of main brush: 6.800 r/min
number of side brushes: 2
diameter of side brushes: 160 mm
speed of side brush: 5.650 r/min
brush width: 360 mm
WLAN
WLAN: 2,4 GHz (802.11 b/g/n)
Ambient operating conditions
Ambient temperature: 10 - 40 °C
Humidity: 40 - 60 %
General characteristics
Encryption: 64/128/152bit WEP, WPA WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Handling/comfort
navigation type: Smart navigation technology
control via app: Yes
Remote access: Yes
Scheduling: Yes
Voice control with Amazon Alexa: Yes
LED display: Network, battery status, level of dust container, errors
virtual walls: Yes
Smart Home client: Yes
Network & communication
Bluetooth: Yes
Operation possibilities
Tablet PC: Yes
Smartphone: Yes
Other features
OSD languages: English, German, French, Italian, Dutch, Polish, Czech
Status LED: Yes
Power consumption
Automatic charging: Yes
Power switch: Yes
Off status: 0 W
Power consumption in standby mode with active network connection: 2 W
In operation: 36 W
Power supply
Battery life: up to 120 min per battery charge
Battery charge time: up to 240 min
Rechargeable battery: Lithium ions with 14.6 V and 2600 mAh
Nominal voltage: 14,4 - 16,8 V
Type of power supply: External
Effective output: 36 W
Mains adapter: DC 18 V / 1 A
Power supply rated voltage: 100 - 240 V
Power supply frequency: 50 / 60 Hz
Sensor
laser sensor: Yes
collision sensor: Yes
crash sensor: 4
Follow wall: Yes
Type of movement: Intelligent
Sensor type: Laser class 1, bumper
rug sensor: Yes
obstacle sensor: Yes
Scope of Delivery
TECHNIMAX SR1, quick start guide, power supply, docking station, main brush, 2 side brushes, dust container, HEPA 13 filter, cleaning tool
