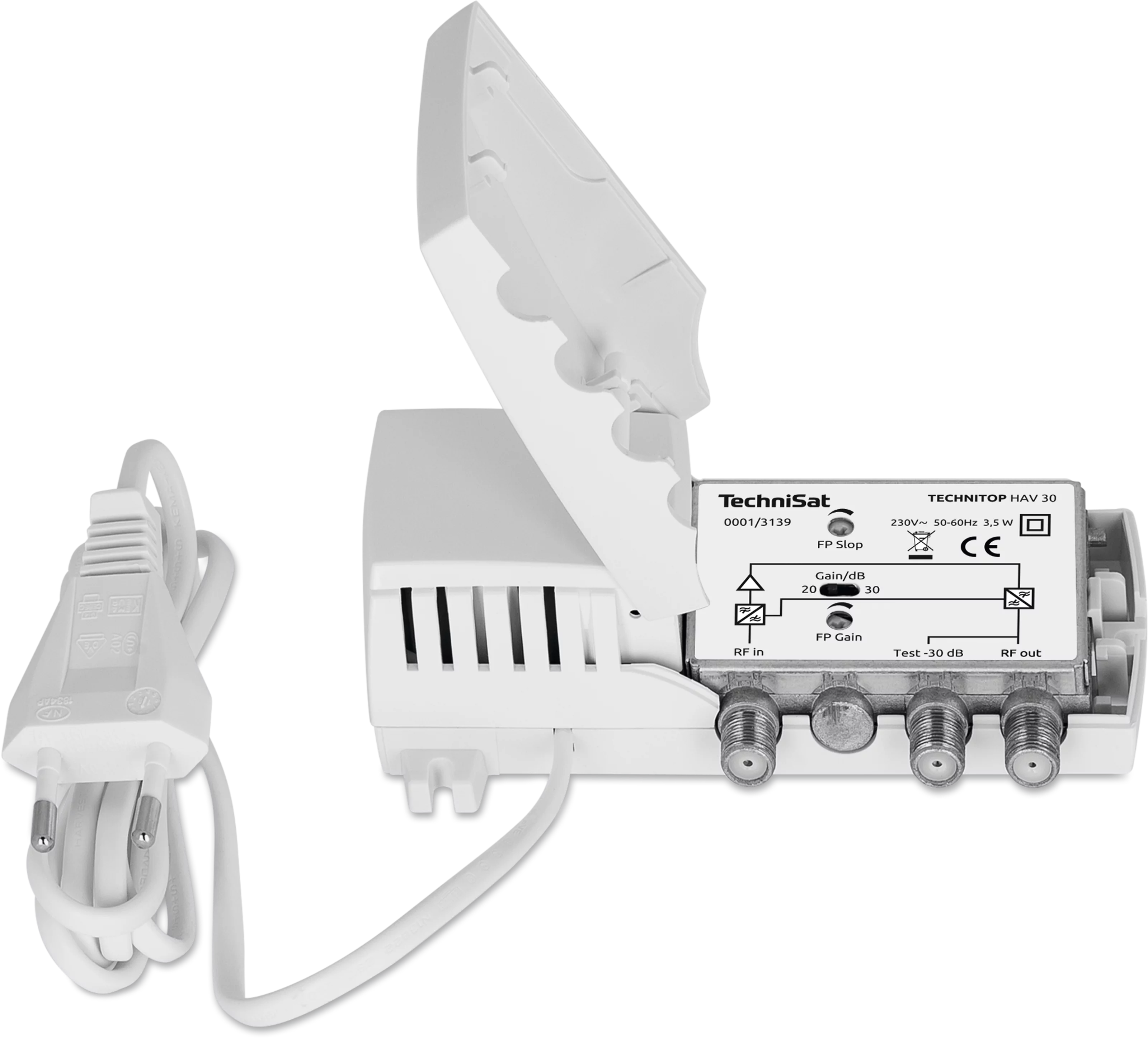

TECHNITOP HAV 30
CATV amplifier with 30/20 dB gain and return path of 5-65 MHz.
| Colour |
EAN |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| white |
4019588131392 |
0001/3139 |
362 g |
332 g |
13,3 x 6,7 x 3,9 cm |
14,2 x 9,7 x 5 cm |
| Ambient operating conditions |
| Ambient temperature: -20 ... 50 °C |
| IP class: 20 |
| Humidity: 10 ... 75 % |
| Amplification |
| Amplification: ≤ 30 dB |
| Return path: -2,5 dB |
| General characteristics |
| Top features: Switchable gain 20/30 dB |
| Top features: Gain and slope adjustable |
| Top features: Return channel compatible (DOCSIS) |
| Output level |
| Standard IMA UHF: 111 dB |
| Standard IMA UHF: 111 dB |
| IMA DIN 45004B VHF: 102 dB |
| IMA DIN 45004B UHF: 102 dB |
| Power requirement |
| Operating voltage: 230 V |
| Power input: 4 W |
| Power supply |
| Frequency: 50 Hz |
| Effective output: 3,5 W |
| Mains adapter: internal |
| Nominal voltage: 230 V ~ |
| Range of adjustment |
| Attenuator: 0 ... 17 dB |
| Equaliser: 0 ... 17 dB |
| Technical data |
| Frequency range: 87 ... 862 MHz |
| Output level: 97 (CTB, CTO, EN 50083-3) |
| Frequency range return path: 5 ... 65 MHz |
| Amplification: 20 / 30 dB switchable |
| Noise factor: ≤ 8,5 dB |
| Shielding factor: ≥ 75 dB EN 50083-2 (Class A) |
| Connector type: F female |
| Impedance: 75 Ω |
| Return loss: ≥ 10 dB |
| Scope of Delivery |
| TECHNITOP HAV 30; installation manual |
