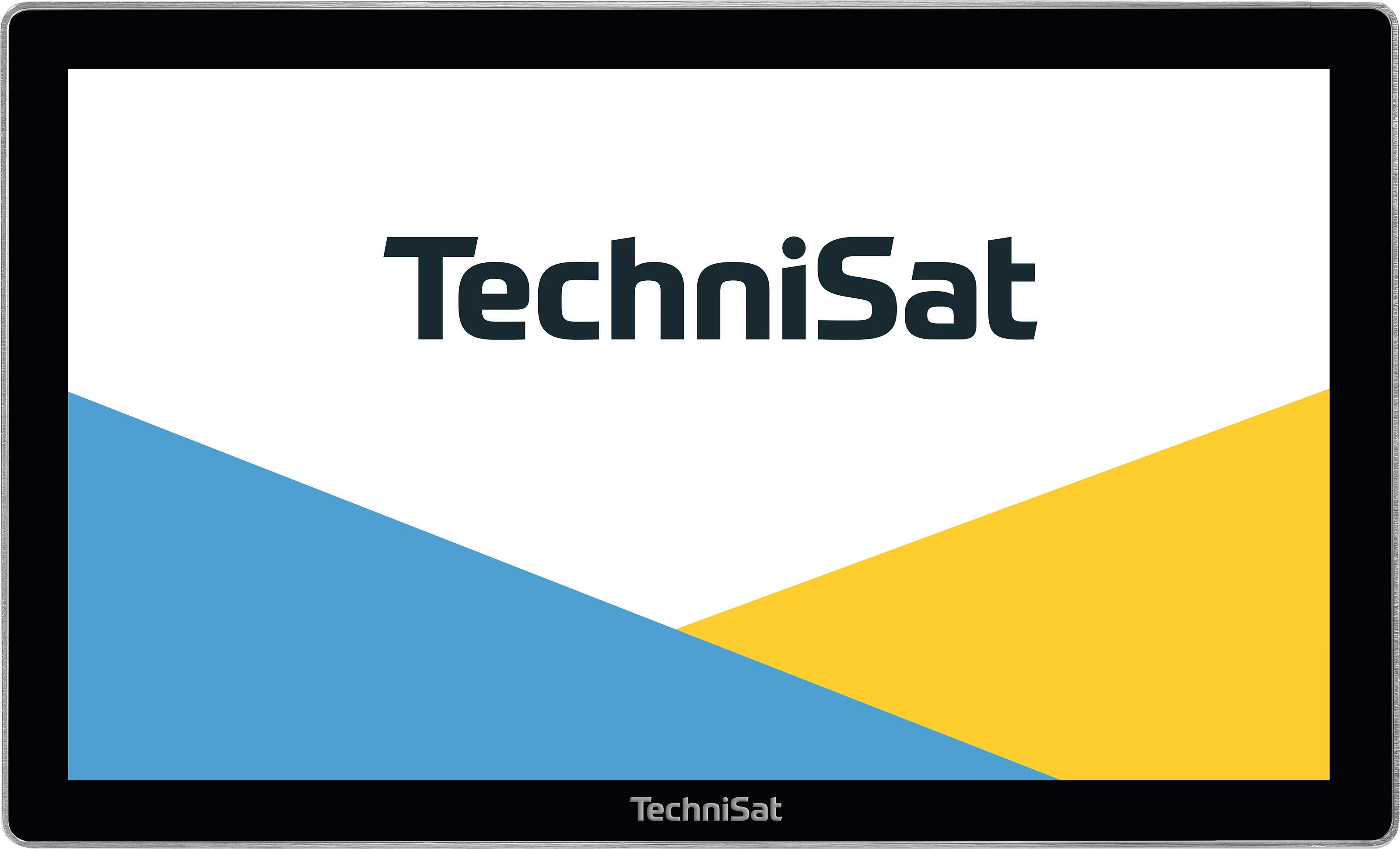

TECHNIPAD PRO 24
Powerful touch screen with Android operating sYstem
| Colour | EAN | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| black | 4019588092242 | 0000/9224 | 11,5 kg | 7,2 kg | 58 x 35 x 7 cm | 66 x 43 x 11,5 cm |
| Top Features |
|---|
|
| WLAN |
|---|
| WLAN: IEEE 802.11 (b/g/n) |
| Power and energy consumption |
|---|
| Supplier’s name or trade mark: TechniSat |
| Supplier’s address: TechniSat Digital GmbH Julius Saxler Straße 54550 |
| Model identifier: 0000/9224 |
| Energy Efficiency Class for standard Dynamic Range (SDR): E |
| On mode power demand for Standard Dynamic Range (SDR): 23 W |
| Off mode, power demand, if applicable: 0 W |
| Standby mode power demand, if applicable: 0,5 W |
| Networked standby mode power demand, ifapplicable: 0,8 W |
| Electronic display category: Digital Signage |
| Size ratio: 16:9 |
| Screen resolution (pixels): 1920 x 1080 |
| Screen diagonal: 61 cm |
| Screen diagonal: 24 in |
| Visible screen area: 15,2 dm² |
| Panel technology used: TFT LCD |
| mage refresh frequency rate (default): 67 Hz |
| Minimum guaranteed availability of software andfirmware updates (from the date of end of theplacement on the market): 3 Jahre |
| Minimum guaranteed availability of spare parts (fromthe date of end of the placement on the market): 7 Jahre |
| Minimum guaranteed product support: 8 Jahre |
| Power supply type:: Intern |
| Bluetooth Version & Profile |
|---|
| Bluetooth version: 4 |
| Chipset |
|---|
| Processor: RK3288 Quad-Core Cortex A9 |
| Connections |
|---|
| HDMI™ (out): 1 |
| HDMI™ (in): Ja |
| USB: 2 |
| Micro USB: 1 |
| microSD card: 1 (max. 64 GB) |
| Handling/comfort |
|---|
| Multilingual: Yes |
| Loudspeakers |
|---|
| Stereo speakers: Yes |
| Network & communication |
|---|
| Bluetooth: Yes |
| Operating System |
|---|
| Operating System: Android 6.0 |
| Power consumption |
|---|
| In operation: 36 W |
| Standby: 0,5 W |
| Power consumption in standby mode with active network connection: 0,8 W |
| Energy class: G |
| annual energy consumption when switched on: 36 kilowatt hour per annum |
| Power supply |
|---|
| Mains adapter: Intern |
| Nominal voltage: 230 V |
| Frequency: 50 60 Hz |
| Screen |
|---|
| Screen sizes: 24 in |
| Resolution: 1920x1200 |
| Touch: Kapazitiv |
| Storage System |
|---|
| Internal memory: 16 GigaByte |
| Storage Systems |
|---|
| Working memory: 2 GigaByte |
| Supported formats & codecs |
|---|
| Video-Formats: AVI, ASF, DAT, FLV, MKV, MOV, MP4, MPG, RM, RMVB, TS, VOB, WMV, Xvid |
| Audio-Formats: MP3, AAC, MP2, M4A, FLAC, OGG, WAV, WMA |
| wall bracket |
|---|
| VESA wall mounting standards: VESA 100 x 100 |
| Scope of Delivery |
|---|
| TECHNIPAD PRO 24, power cable, USB to Ethernet adapter, WLAN antenna, operating instructions<br> |
