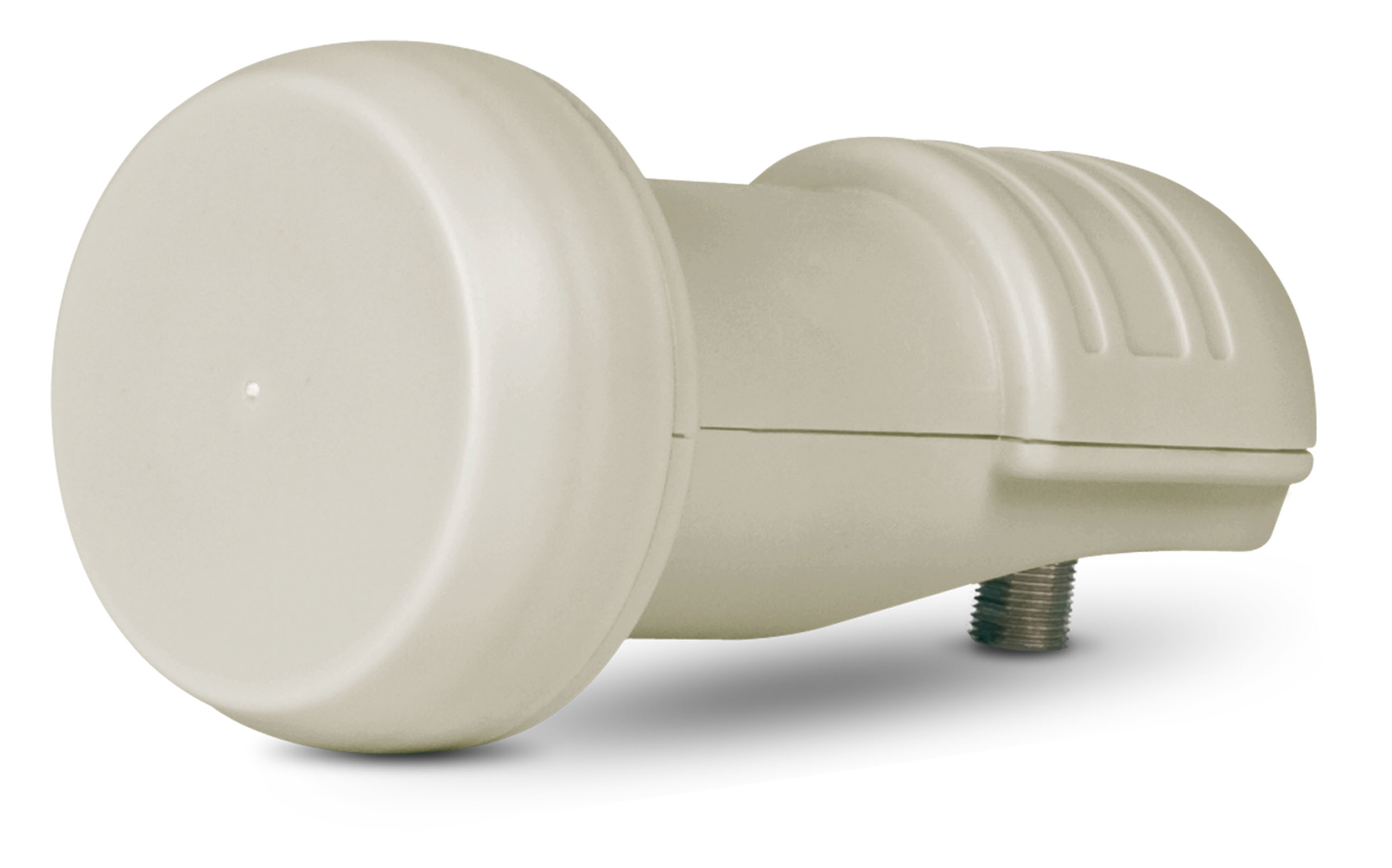

Universal-V/H-LNB
Digital-LNB for single-reception
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588178946 |
grey |
0017/8194 |
200 g |
120 g |
5,8 x 5,8 x 11,3 cm |
6,5 x 6,5 x 12 cm |
| Local oscillator |
| Low band: 9,75 GHz |
| High band: 10,6 GHz |
| LNB control |
| Vertical: 11,5 ... 14 V |
| Horizontal: 16 ... 19 V |
| Band switch: 22 kHz |
| Ambient operating conditions |
| Humidity: 10 ... 90 % |
| Ambient temperature: -30 ... 60 °C |
| Input frequency range |
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Noise factor |
| Noise figure: 0,7 dB |
| Output frequency range |
| Low band: 950 ... 1.950 MHz |
| High band: 1.100 ... 2.150 MHz |
| Power supply |
| LNB voltage supply: 11,5 ... 19 V |
| Power consumption: max. 190 mA |
| Technical data |
| Outputs: 1 |
| Impedance: 75 Ω |
| Feed reception: 40 mm |
| Amplification: 50 ... 65 dB |
| Connector type: F-Buchse |
