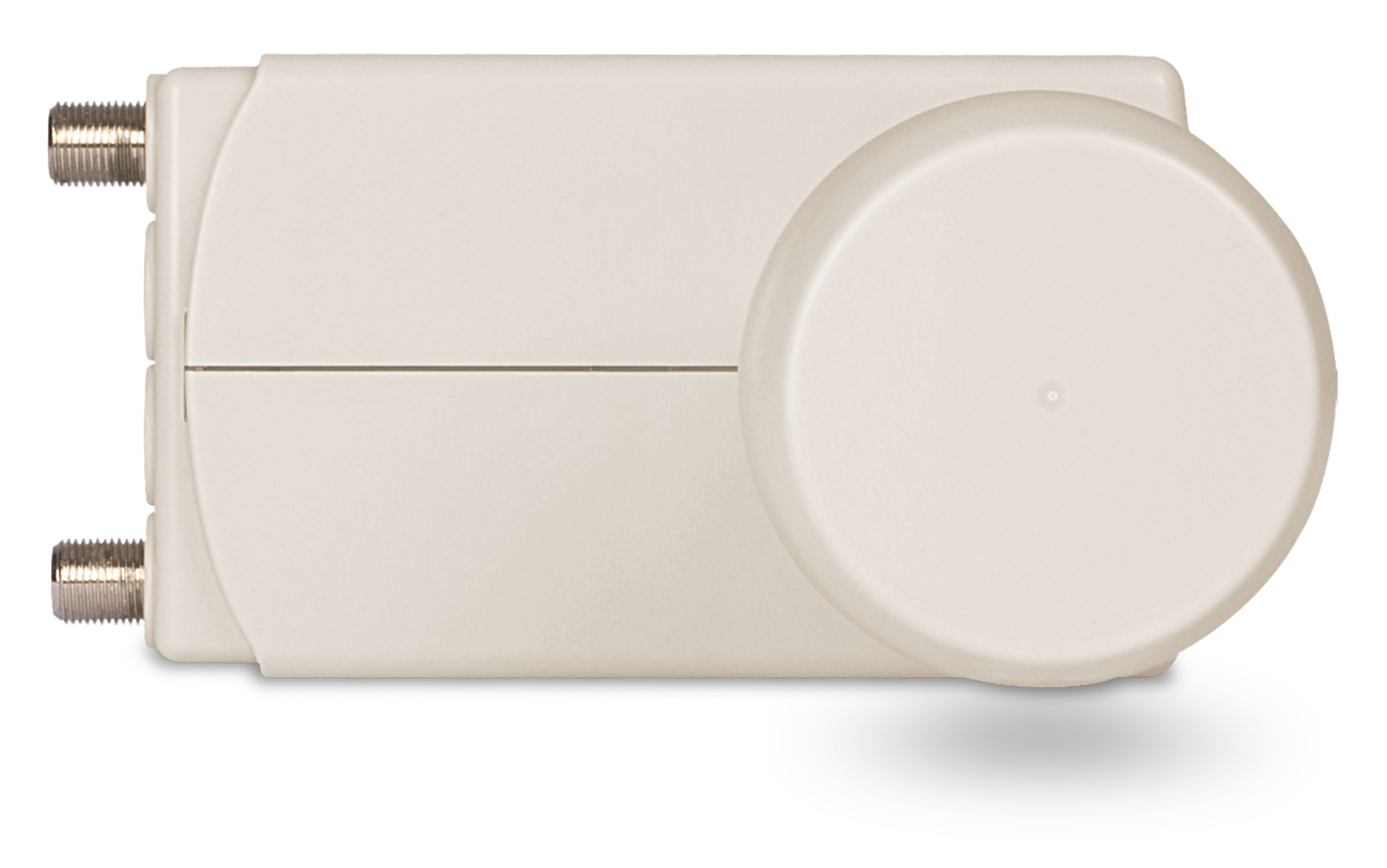

Universal-Twin-LNB
Digital-TWIN-LNB for two participants
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588788824 |
grey |
0007/8882 |
300 g |
300 g |
10,1 x 7 x 12,5 cm |
7,5 x 11,5 x 13 cm |
| Local oscillator |
| Low band: 9,75 GHz |
| High band: 10,6 GHz |
| Accuracy: ± 1 MHz |
| Temperature drift: ± 3 MHz |
| Phase noise: -75 @10kHz |
| LNB control |
| Band switch: 22 kHz |
| Vertical: 11,5 ... 14 V |
| Horizontal: 16 ... 19 V |
| Ambient operating conditions |
| Humidity: 10 ... 90 % |
| Ambient temperature: -30 ... 60 °C |
| Input frequency range |
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Noise factor |
| Lower frequency range: 0,7 dB max. |
| Upper frequency range: 0,7 dB max. |
| Noise figure: 0,8 dB |
| Output frequency range |
| Low band: 950 ... 1.950 MHz |
| High band: 1.100 ... 2.150 MHz |
| Power supply |
| LNB voltage supply: 11,5 ... 19 V |
| Power consumption: max. 190 mA |
| Prepared for |
| Number of orbit positions: 1 |
| Number of clients: 2 |
| Technical data |
| Outputs: 2 |
| Connector type: F-Buchse |
| Amplification: 52 ... 65 dB |
| Impedance: 75 Ω |
| Feed reception: 40 mm |
| Scope of Delivery |
| Universal Twin LNB |
