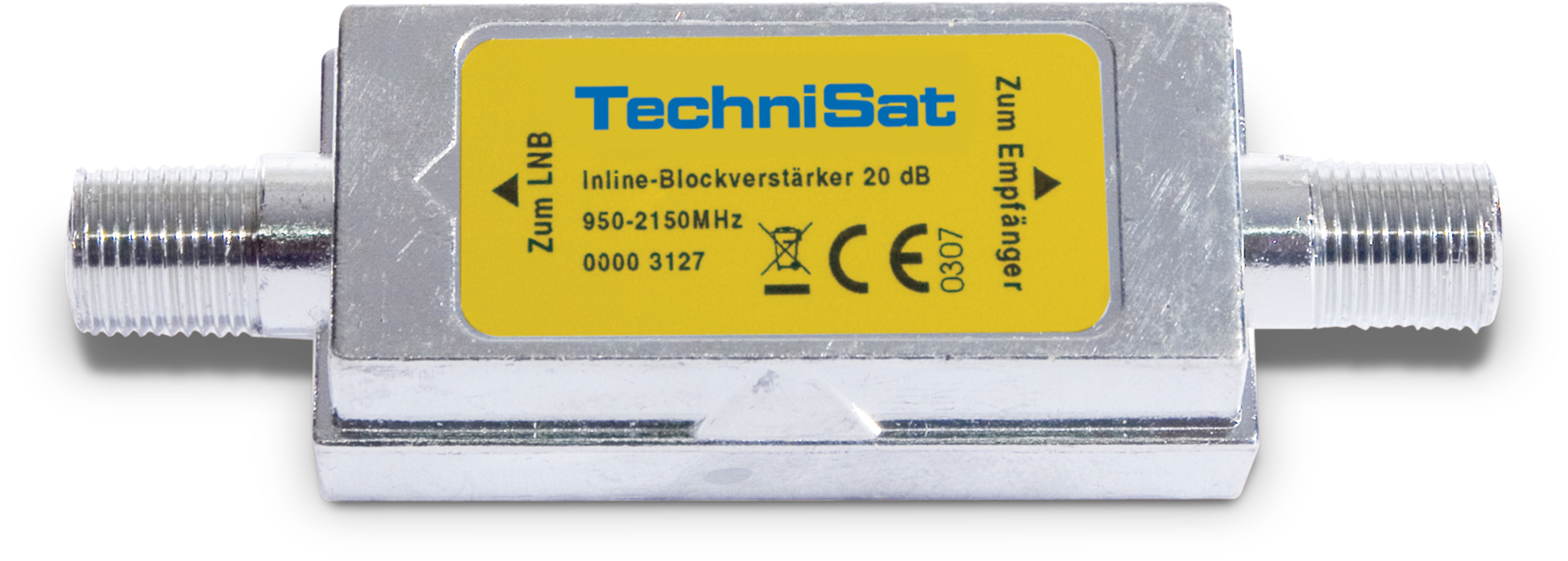

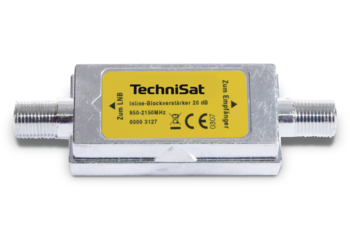

Inline Block Amplifier
20 dB amplifier for Sat signals
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
| 4019588131279 |
silver |
0001/3127 |
22 g |
22 g |
| Top Features |
- Power supply via coaxial cable.
|
| Technical data |
| Frequency range: 950 ... 2.150 MHz |
| Amplification: 20 dB |
| Shielding factor: ≥ 75 dB EN 50083-2 (Class A) |
| Noise factor: 6 dB |
| Impedance: 75 Ω |
| Input level: max. 86 |
| Output level: max. 106 |
| Current consumption: 40 ... 60 mA @18VDC |
| Voltage supply: 11 ... 20 VDC |
| Connector type: F female/F female |
| Return loss: 8 dB |
| Scope of Delivery |
| Inline-Blockverstärker 2150 |
