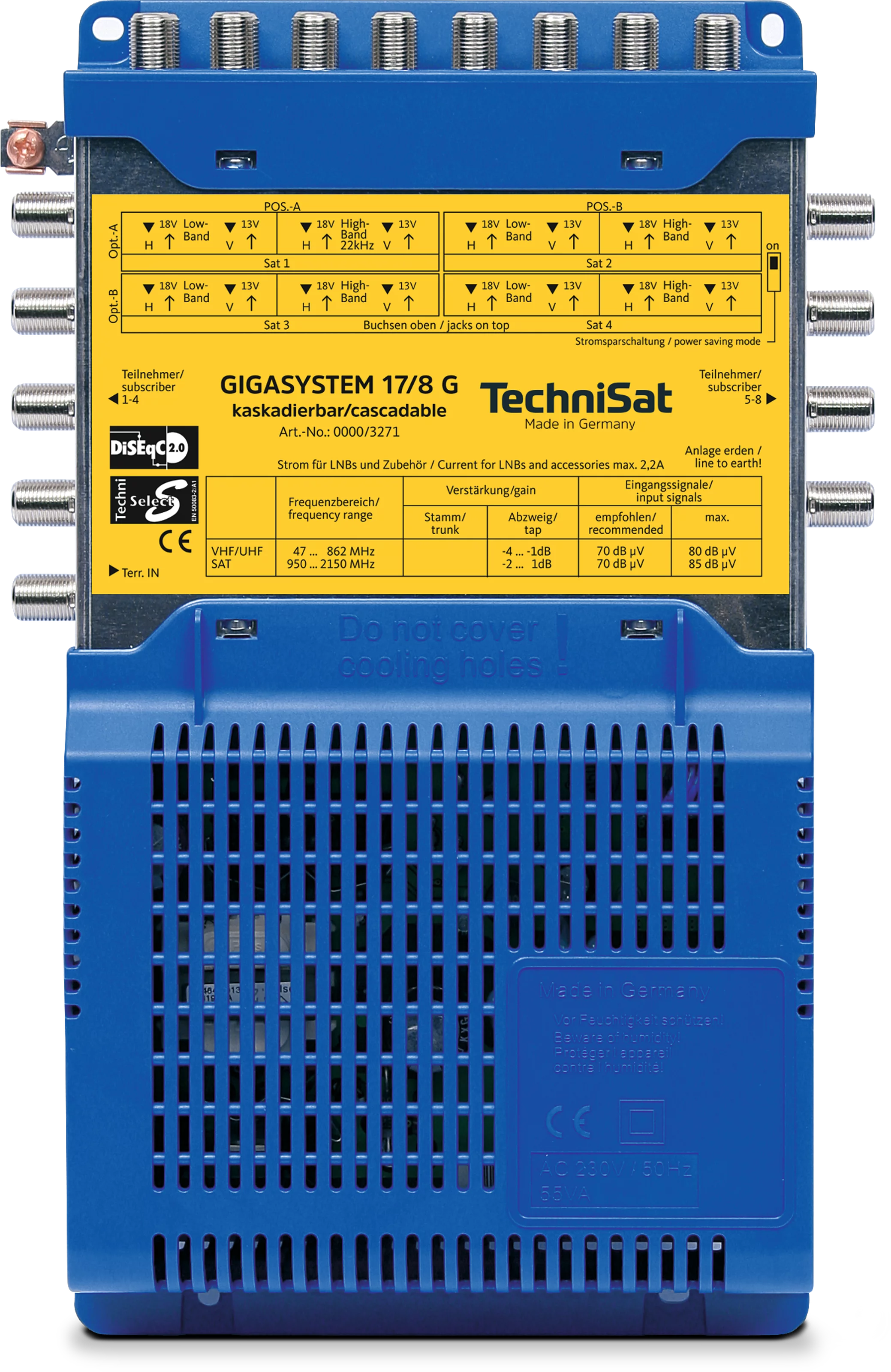

GIGASYSTEM 17/8 G
Multischalter-System mit Anschlussmöglichkeit von16 ZF-Ebenen (SatBlöcke) und einem terrestrischen Eingang zur Verteilung auf bis zu mehrere 100 Teilnehmer
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588032712 |
blue/yellow |
0000/3271 |
1,1 kg |
800 g |
17,5 x 27,7 x 5,5 cm |
29,4 x 18,2 x 6 cm |
| Top Features |
- The GIGASYSTEM 17/8 is designed for building a satellite distribution system, with which signals from up to four satellite positions can be distributed to up to eight users
- Multiswitch system with connection capability for 16 IF levels (sat blocks) and one terrestrial input, enables distribution to up to several hundred participants with optional components
- The 17/8 G base unit has a total of 17 inputs, 16 of which are SAT IF inputs that can accommodate the signal paths from up to four Quattro LNBs
- The seventeenth input is for feeding in terrestrial antenna signals. The base unit 17/8 G can be expanded with up to 4 cascades; these and suitable components are optionally available
|
| sonstiges |
| bf_filter_number_of_participants: 8 |
| Amplification |
| Sat: -2 ... 1 dB |
| Terrestrial: -4 ... -1 dB |
| General characteristics |
| Top features: Ausbaufähig mit bis zu 4 Kaskaden |
| Top features: Ohne Dämpfung im Sat-Bereich |
| Top features: Mit Schräglagenentzerrung |
| Top features: Für 4 Quattro-LNB |
| Power supply |
| Frequency: 50 ... 60 Hz |
| Nominal voltage: 230 V |
| Mains adapter: internal |
| Reception range |
| Sat: 950 ... 2.150 MHz |
| Terrestrial: 47 ... 862 MHz |
| Technical data |
| Satellite inputs: 16 |
| Terrestrial input: 1 |
| Outputs: 8 |
| Scope of Delivery |
| GigaSystem 17/8 G, Instruction manual |
