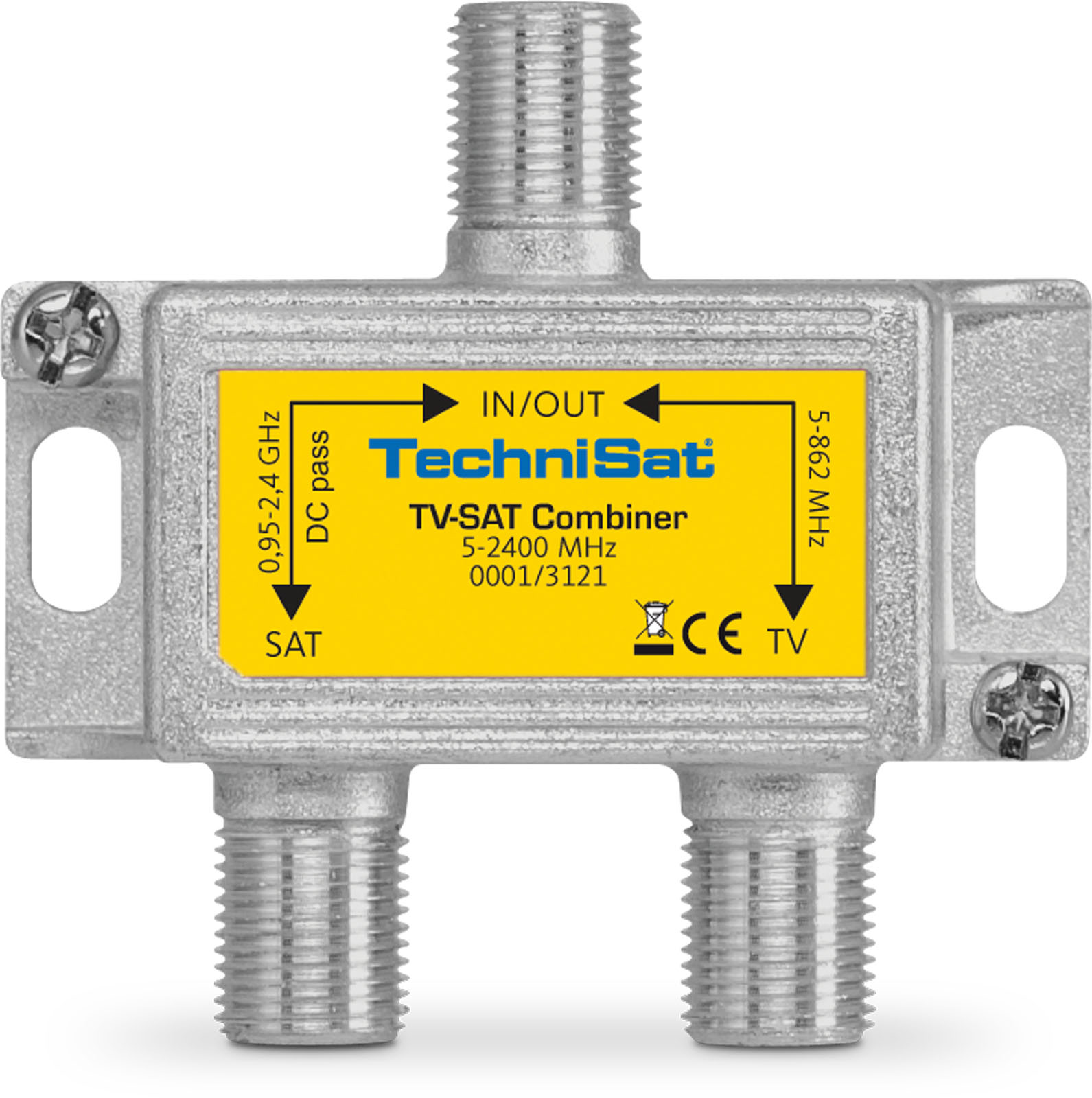

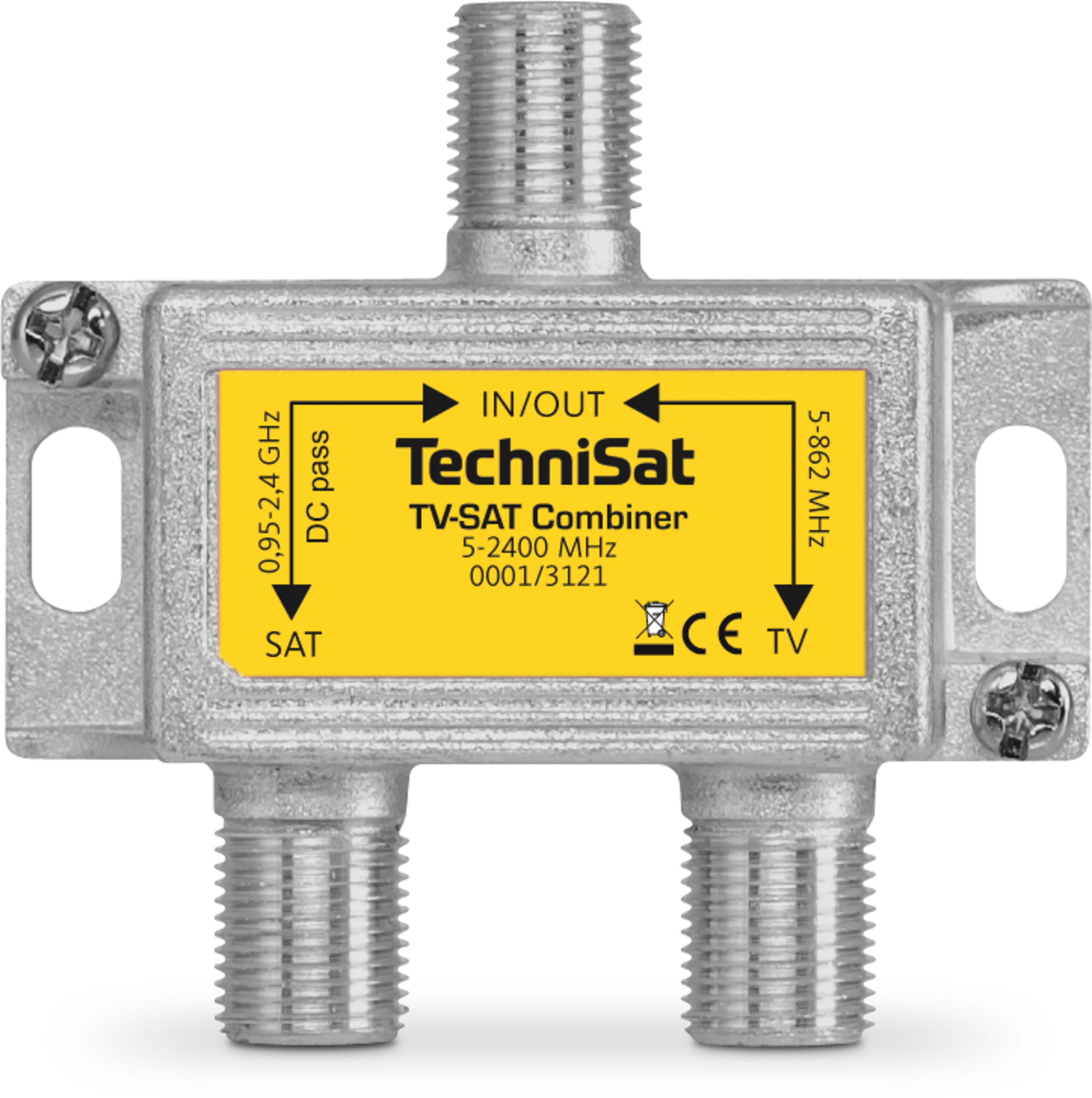

UHF/VHF-Sat-Combiner
For combining of terrestrial and satellite signals
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
| 4019588131217 |
silver/yellow |
0001/3121 |
200 g |
200 g |
| sonstiges |
| bf_filter_number_of_participants: 2 |
| bf_filter_number_satellites: 1 |
| DC outlet |
| Terrestrial: No |
| SAT: 30V/1A |
| Decoupling |
| 5 - 862 MHz: 25 dB |
| 950 - 1750 MHz: 25 dB |
| 1750 - 2150 MHz: 25 dB |
| Return loss |
| 5 - 862 MHz: 11 dB |
| 950 - 1750 MHz: 11 dB |
| 1750 - 2150 MHz: 11 dB |
| Technical data |
| Input: 2 |
| Outputs: 1 |
| Frequency range: 5 ... 2.400 MHz |
| Shielding factor: ≥ 75 dB EN 50083-2 (Class A) |
| Connector type: F female |
| Impedance: 75 Ω |
| Transmission loss |
| 5 - 862 MHz: 1,5 dB |
| 950 - 1750 MHz: 1,5 dB |
| 1750 - 2150 MHz: 1,5 dB |
| Scope of Delivery |
| TV-Sat-Combiner |
