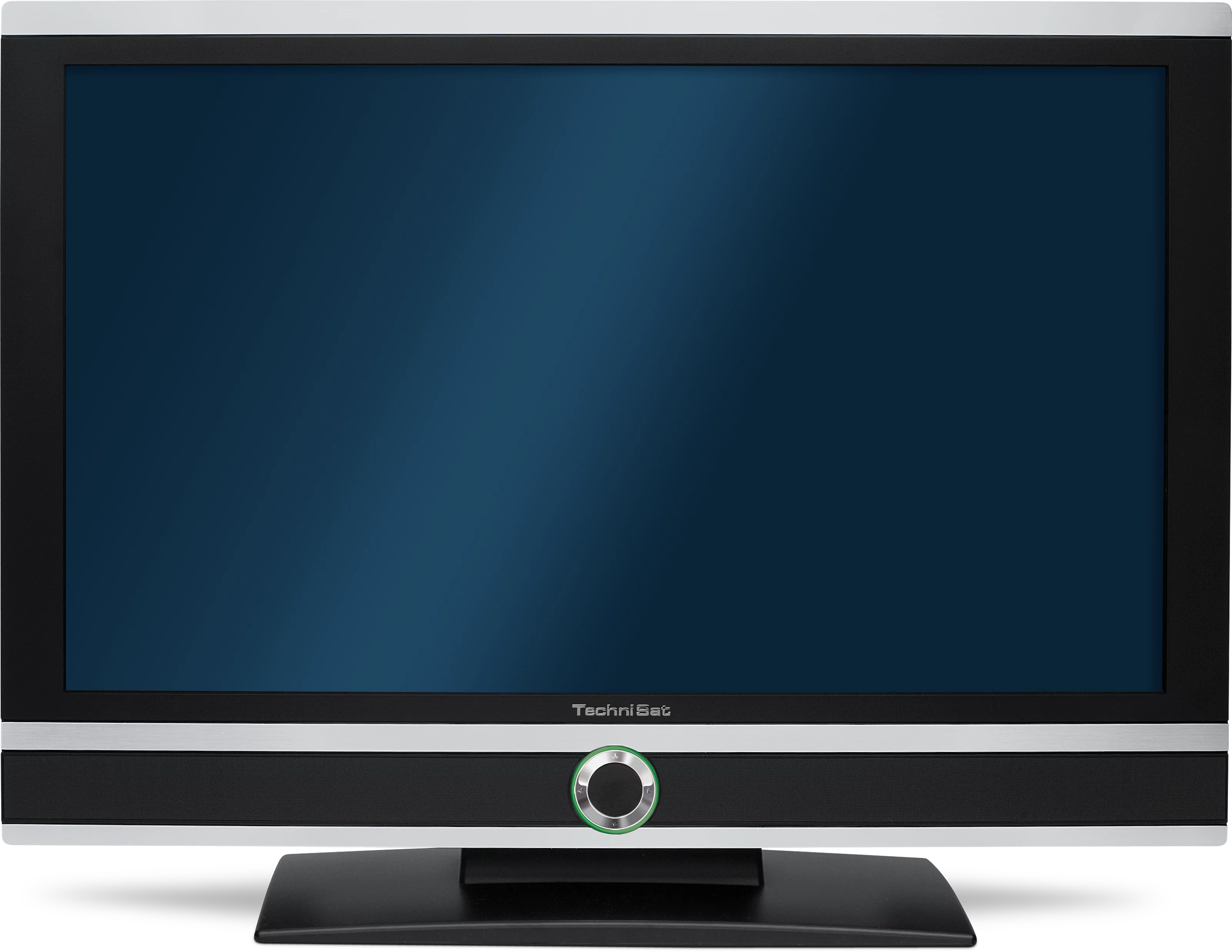

TECHNILINE 32 HD
32 inch Full-HD digital TV with integrated HDTV Multi Tuner for reception of analogue and digital TV including HDTV
| Weight without stand | EAN | Colour | Item no. | Weight (Box) | Weight | Unit without stand (W x H x D) | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|---|---|
| 13 kg | 4019588325104 | silver | 5532/1306 | 17 kg | 13,5 kg | 780 x 530 x 95 mm | 78 x 58,5 x 20 cm | 88,5 x 67,3 x 26 cm |
| 13 kg | 4019588325111 | titanium | 5532/1316 | 17 kg | 13,5 kg | 780 x 530 x 95 mm | 78 x 58,5 x 20 cm | 88,5 x 67,3 x 26 cm |
| 4019588532069 | black/silver metallic | 5532/0306 | 17,5 kg | 13,5 kg | 780 x 530 x 95 mm | 78 x 58,5 x 20 cm | 88,5 x 67,3 x 26 cm | |
| 4019588523166 | black/titanium metallic | 5532/0316 | 17,5 kg | 13,5 kg | 780 x 530 x 95 mm | 78 x 58,5 x 20 cm | 88,5 x 67,3 x 26 cm | |
| 4019588532267 | black/black | 5532/0326 | 17,5 kg | 13,5 kg | 780 x 530 x 95 mm | 78 x 58,5 x 20 cm | 88,5 x 67,3 x 26 cm | |
| 13 kg | 4019588325104 | silver | 5532/1306 | 17 kg | 13,5 kg | 780 x 530 x 95 mm | 78 x 58,5 x 20 cm | 88,5 x 67,3 x 26 cm |
| 13 kg | 4019588325104 | silver | 5532/1306 | 17 kg | 13,5 kg | 780 x 530 x 95 mm | 78 x 58,5 x 20 cm | 88,5 x 67,3 x 26 cm |
| Top Features |
|---|
|
| Ambient operating conditions |
|---|
| Ambient temperature: 5 ... 35 °C |
| Humidity: 10 ... 75 % |
| LNB control |
|---|
| Current consumption: 400 mA |
| DiSEqC: DiSEqC 1.0 and 1.2 / DiSEqC 1x Sat Channel Router |
| Horizontal: <20 V without load, > 17.2 V at 400 mA / LNB shut-off standby mode V |
| Band switch: 22 kHz |
| Vertical: <14 V without load, > 11.5 V at 400 mA V |
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Audio |
|---|
| Speakers: 2 x 2-way sound system with bass reflex |
| Connections |
|---|
| HDMI™ (in): 2 |
| Digital electric audio output (S/PDIF): Yes (Cinch) |
| Digital optical audio out: Yes (Toslink) |
| Digital audio in (S/PDIF): Yes (Cinch) |
| Audio in/AUX in: Yes (3.5mm Klinke) |
| VGA: Yes |
| YUV (component input): Yes |
| Scart: 1 |
| F socket: 1 |
| IEC-Connector: Yes |
| Decryption system |
|---|
| CI+: Yes |
| Dimensions / Weight |
|---|
| Set height without stand: 530 mm |
| Set depth without stand: 95 mm |
| Set width without stand: 780 mm |
| Weight without stand: 11,5 kg |
| Display |
|---|
| Size (cm): 81 cm |
| Format: 16:9 |
| Contrast ratio: 4.000:1 |
| Picture in Picture (PIP): Yes externe Quelle |
| Brightness: 450 cd/m² |
| Response time: < 8 ms |
| Angle of view: 178 |
| Picture and Picture (PAP): Yes externe Quelle |
| Freeze frame: Yes |
| Zoom: Yes |
| Type: TFT-LCD "Full HD" |
| 720p: Yes |
| Size (inches): 32 |
| SD: Yes |
| HD: Yes |
| 1080i: Yes |
| Resolution (vertical and horizontal): 1920 x 1080 |
| General characteristics |
|---|
| Appearance: TFT-LCD Full HD |
| Handling/comfort |
|---|
| Sleep timer: Yes |
| Clock: Yes |
| Alarm: Yes |
| Hotel mode |
|---|
| Customisable start screen: Yes |
| Configurable on times: Yes |
| Energy card function: Yes |
| USB cloning function: Yes |
| Multimedia connectors: Yes |
| Menu locking: Yes |
| Radio mode: Yes |
| Mixing of channel slots: Yes |
| Multicode remote control: Yes |
| Fireproofed housing: Yes |
| materials contained |
|---|
| Lead: Yes |
| Other features |
|---|
| OSD languages: English, Dutch, French, Russian, Hungarian, German, Spanish, Greek, Swedish, Polish, Turkish, Italian, Portuguese, Czech |
| Total programme memory: 5.000 |
| Regional channel selection: Yes |
| Power consumption |
|---|
| SFIplus updating: 25 W |
| Energy class: C |
| Software update: 25 W |
| Standby fast start: 21 W |
| Standby LED: 0,72 W |
| In operation: 80 W |
| annual energy consumption when switched on: 117 kilowatt hour per annum |
| Standby: 0,5 W |
| Off status: 0 W |
| Power switch: Yes |
| Power supply |
|---|
| Frequency: 50 Hz |
| Mains adapter: internal |
| Nominal voltage: 230 V |
| Supported formats & codecs |
|---|
| Video-Codecs: MPEG-1, MPEG-2, H.264 |
| Video-Formats: TS, MPG, TS4, VOB |
| JPEG: Yes |
| Audio-Formats: MP2, MP3 |
| Tuner |
|---|
| Tuner type: Single-HDTV-Multituner |
| DVB-S tuner: 1 |
| DVB-C Tuner: 1 |
| DVB-T Tuner: 1 |
| Analogue UHF/VHF/CATV tuner: 1 |
| Input impedance: 75 Ω |
| Reception on: HDTV (Mpeg-4+2) SD (MPEG-2) |
| TECHNIROUTER ready: Yes |
| Tuner - Analogue |
|---|
| Video standards: B/G stereo, D/K mono, L/L, I, NICAM |
| Reception range: 46 860 MHz |
| Tuner - Cable |
|---|
| Symbol rate: 1,7 7 |
| Reception range: 51 858 MHz |
| FEC: Reed-Solomon |
| Demodulation: 16/32/64/128/256 QAM |
| Tuner - Sat |
|---|
| DVB-S: 2 ... 45 |
| Reception range: 950 ... 2.150 MHz |
| Viterbi rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8, 8/9, 9/10 Autoanpassung |
| DVB-S2: 10 ... 31 |
| DVB-S2: 8PSK - QPSK |
| FEC: Viterbi and Reed-Solomon |
| DVB-S: QPSK |
| Tuner - Terrestrial |
|---|
| Reception range 1: 174 ... 230 MHz |
| Demodulation: COFDM |
| Power supply: 0,03 A |
| Bitrate: 4 32 |
| Voltage supply: 5 V |
| Transmission mode: 2k/8k |
| Reception range 2: 470 ... 860 MHz |
| wall bracket |
|---|
| VESA wall mounting standards: VESA 400 x 200 |
| Scope of Delivery |
|---|
| TechniLine 32 HD, Pedestal, 230 V euro connection cable, Remote control with batteries, Angle adapter USB, Angle adapter jack plug, Hexagon tool, Maintenance instruction with maintenance set, Instruction manual |
Test Results TECHNILINE 32 HD
Ausstattung: sehr gut
InfoSat (12/09)
SAT Empfang (02/2010)
