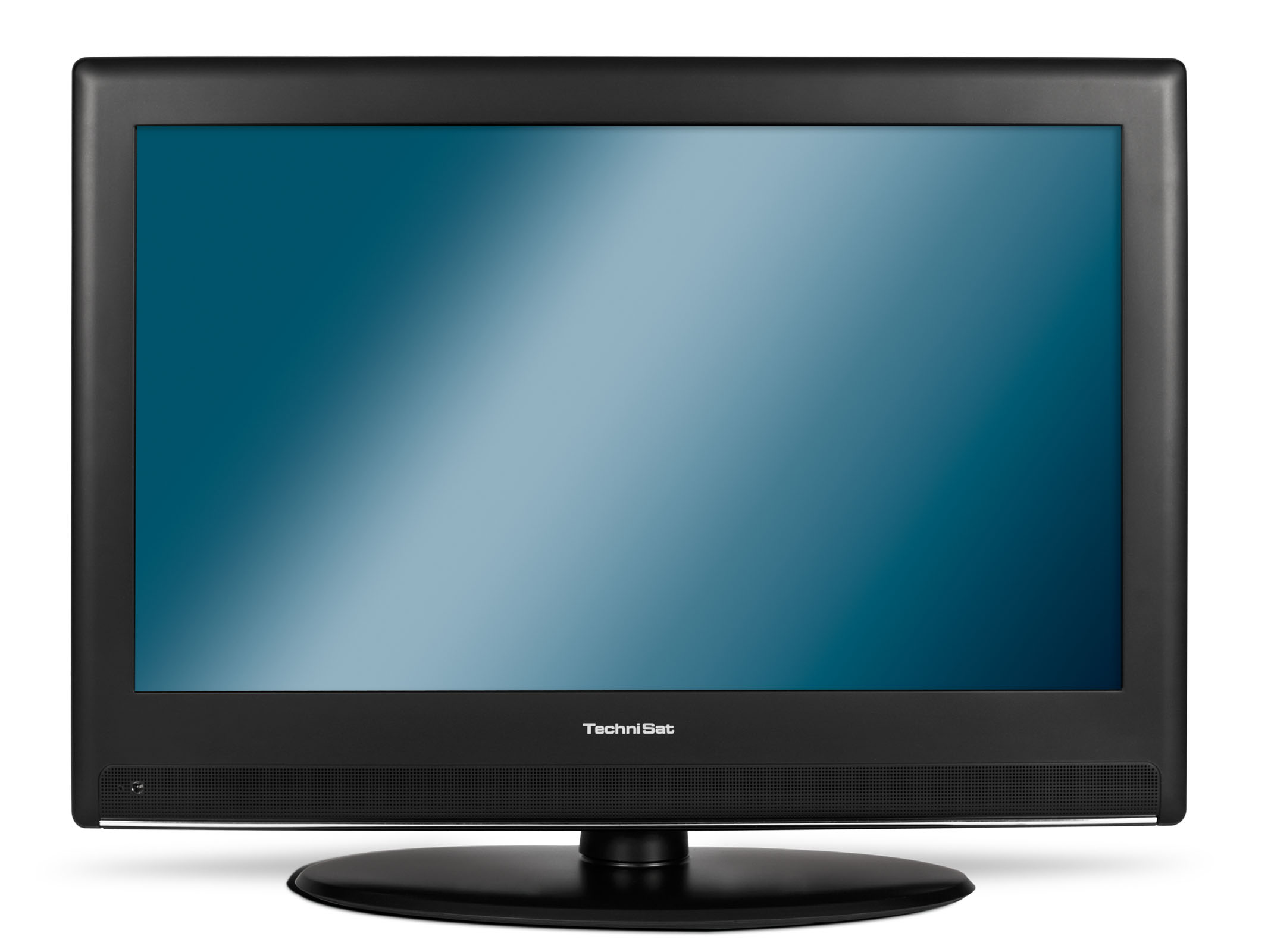

TECHNIVISION 26 ST
26 inch LCD television with integrated digital satellite and DVB-T tuner with Common Interface
| EAN | Colour | Item no. | Weight (Box) | Weight | Unit without stand (W x H x D) | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|---|
| 4019588266445 | black | 5026/6404 | 11,5 kg | 8,2 kg | 660 x 450 x 100 mm | 66 x 49,5 x 20,5 cm | 75,5 x 58,5 x 25 cm |
| 4019588266438 | black | 5026/6403 | 9 kg | 9 kg | 660 x 450 x 100 mm | 66 x 49,5 x 20,5 cm | 75,5 x 58,5 x 25 cm |
| Ambient operating conditions |
|---|
| Humidity: 10 75 % |
| Ambient temperature: 5 35 °C |
| LNB control |
|---|
| Current consumption: 400 mA |
| DiSEqC: DiSEqC 1.0 / DiSEqC 1.2 Sat Channel Router |
| Band switch: 22 kHz |
| Horizontal: <20 V without load, > 17.2 V at 400 mA / LNB shut-off standby mode V |
| Vertical: <14 V without load, > 11.5 V at 400 mA V |
| Audio |
|---|
| Speakers: 2 W |
| AC3 Dolby Digital bitstream out: Yes |
| Connections |
|---|
| HDMI™ (in): 1 |
| Common Interface (CI): 2 |
| Subwoofer output: Yes |
| VGA: Yes |
| YUV (component input): Yes |
| Scart: 1 |
| S Video: Yes |
| Video IN: 1 |
| F socket: 1 |
| RS-232: |
| Decryption system |
|---|
| CI: Yes |
| Dimensions / Weight |
|---|
| Set depth without stand: 100 mm |
| Weight without stand: 7 kg |
| Set height without stand: 450 mm |
| Set width without stand: 660 mm |
| Display |
|---|
| Size (cm): 66 |
| Format: 16:9 |
| Contrast ratio: 700:1 |
| Brightness: 400 cd/m² |
| Response time: 5 ms |
| Angle of view: 150° V / 160° H |
| Freeze frame: Yes |
| Zoom: Yes |
| Type: TFT-LCD |
| Size (inches): 26 |
| SD: Yes |
| Resolution (vertical and horizontal): 1366 x 768 |
| Handling/comfort |
|---|
| Sleep timer: Yes |
| Alarm: Yes |
| Hotel mode |
|---|
| Radio mode: Yes |
| Mixing of channel slots: Yes |
| materials contained |
|---|
| Lead: Yes |
| Other features |
|---|
| OSD languages: Czech, Polish, Hungarian, Greek, English, Dutch, Russian, German, Swedish, Spanish, Portuguese, French, Turkish, Italian |
| Total programme memory: 4.000 |
| Power consumption |
|---|
| Energy class: D |
| Standby LED: 0,53 W |
| In operation: 83 W |
| annual energy consumption when switched on: 121 kilowatt hour per annum |
| Off status: |
| Power switch: Yes |
| Power supply |
|---|
| Mains adapter: internal |
| Frequency: 50 Hz |
| Nominal voltage: 230 V |
| Tuner |
|---|
| Tuner type: DigitalSat und DVB-T-Empfangstuner |
| DVB-S tuner: 1 |
| DVB-T Tuner: 1 |
| Analogue UHF/VHF/CATV tuner: 1 |
| Reception on: SD (MPEG-2) |
| Input impedance: 75 Ω |
| TECHNIROUTER ready: Yes |
| Tuner - Analogue |
|---|
| Reception range: 46 860 MHz |
| Video standards: PAL, SECAM |
| Tuner - Sat |
|---|
| DVB-S: QPSK |
| Reception range: 950 ... 2.150 MHz |
| DVB-S: 1 ... 45 |
| FEC: Viterbi and Reed-Solomon |
| Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 |
| Tuner - Terrestrial |
|---|
| Reception range 2: 470 ... 860 MHz |
| Reception range 1: 174 ... 230 MHz |
| Voltage supply: 0,05 V |
| Transmission mode: 2k/8k |
| Power supply: 5 A |
| Bitrate: 4 32 |
| Demodulation: COFDM |
| wall bracket |
|---|
| VESA wall mounting standards: VESA 200 x 100 |
| Scope of Delivery |
|---|
| TechniVision 26 ST, Remote control, Power cable |
