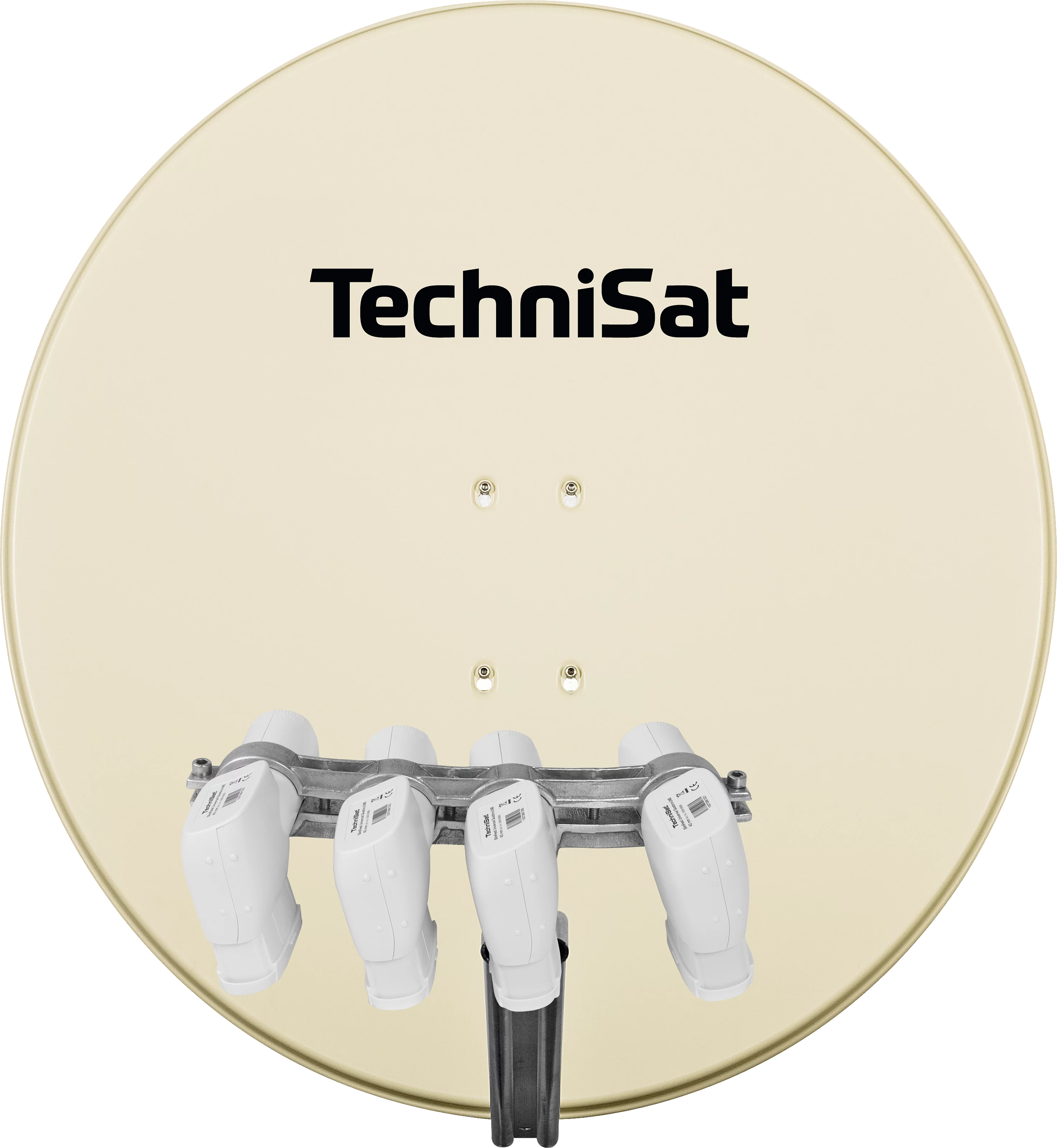

SKYTENNE
Digital satellite dish with a diameter of 85 cm ready for the reception of four Orbital positions at the same time without any rotor. Perfect for Multi-participant reception(with multi switch)!
| EAN | Colour | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| 4019588850446 | beige | 6085/1544 | 10,2 kg | 6,6 kg | 85 x 87 cm | 87 x 95 x 24 cm |
| 4019588853447 | slate/grey | 6385/1544 | 10,2 kg | 6,6 kg | 85 x 87 cm | 87 x 95 x 24 cm |
| 4019588854444 | brick/red | 6485/1544 | 10,2 kg | 6,6 kg | 85 x 87 cm | 87 x 95 x 24 cm |
| 4019588852440 | fir/green | 6285/1544 | 10,2 kg | 6,6 kg | 85 x 87 cm | 87 x 95 x 24 cm |
| 4019588857445 | polar white | 6785/1544 | 10,2 kg | 6,6 kg | ||
| 4019588855441 | yellow with Smiley | 6585/1544 | 10,2 kg | 6,6 kg | 85 x 87 cm | 87 x 95 x 24 cm |
| Local oscillator |
|---|
| Low band: 9,75 GHz ± 3MHz |
| High band: 10,6 GHz ± 3MHz |
| Ambient operating conditions |
|---|
| Humidity: 5 - 100 % |
| Ambient temperature: -40 bis 65 °C |
| General characteristics |
|---|
| Material: Aluminium |
| Top features: 1 to various receptors |
| Top features: 4 orbital positions |
| Top features: optimized for roof mounting |
| Top features: perfect for the reception of the BBC channels on Astra & Eutelsat 28.5° |
| Top features: You may need various distribution components for the Mutliparticipant reception please ask you nearest TechniSat Partner |
| Material strength: 1,6 mm |
| Coating: Powder-coated on both sites |
| Colour: beige, polar white, slate-grey, brick-red, fir green, yellow |
| Colour tone: beige, polar white, slate-grey, brick-red, fir green, yellow |
| Input frequency range |
|---|
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Noise factor |
|---|
| Lower frequency range: 0,1 dB max. |
| Upper frequency range: 0,1 dB max. |
| Output frequency range |
|---|
| Low band: 950 ... 1.950 MHz |
| High band: 1.100 ... 2.150 MHz |
| Power supply |
|---|
| LNB voltage supply: 11 ... 20 V |
| Power consumption: typ. 680 mA (4 x LNB á 170 mA) |
| Technical data |
|---|
| Rated measurement: 0,85 m |
| F/D: 0,67 |
| G/T: 17,2 |
| Offset angle: 21 ° |
| Gain: 38,2 dBi @11,3 GHz |
| Satellite positions: Eutelsat 13° Ost, Astra 19,2° Ost, Astra 23,5° Ost, Astra 28,2° Ost |
| Mast Ø: 65 mm max. |
| Feed reception: for Skytenne-System |
| Scope of Delivery |
|---|
| Digital Satellite dish SATMAN 850 Plus, AZ/EL-mount (with corresponding multifeed-bus), 4 x Universal-Quattro-LNB, srews, installation manual |
Test Results SKYTENNE
Zweiter Platz in der Kategorie Sat-Anlagen bei der Leserwahl zum König-Kunde-Award 2014
(Camping, Cars & Caravans)
Zweiter Platz in der Kategorie Sat-Anlagen bei der Leserwahl zum König-Kunde-Award 2014
(Camping, Cars & Caravans)
Note: sehr gut | 92,2%
SATVISION (04/2011)
Note: sehr gut | 92,2%
SATVISION (04/2011)
