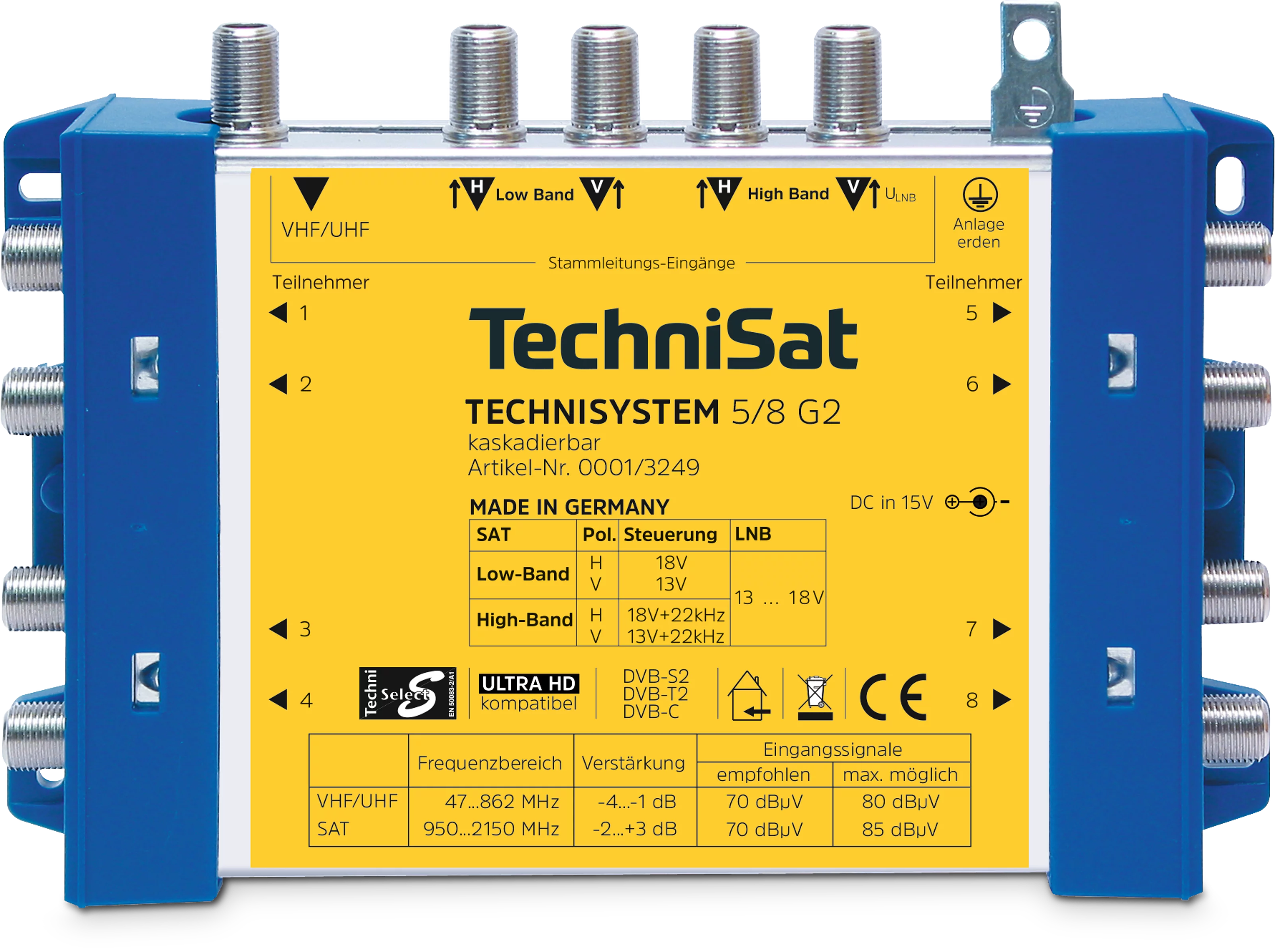

TECHNISYSTEM 5/8 G2

TECHNISYSTEM 5/8 G2

Multi-switch system with connection possibility of 4 ZF levels for distribution to up to 8 participants

EAN	Colour	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
4019588132498	blue/yellow	0001/3249	1 kg	300 kg	17,2 x 11,5 x 3,2 cm	17,4 x 13,5 x 10,5 cm

Top Features

Made in Germany; professional multiswitch system for implementing larger cable networks in residential units, complexes, and large facilities

The professional system for Quattro LNBs features 4 satellite inputs, 1 terrestrial input, and 8 outputs

No attenuation in the satellite band, with tilt compensation

Attention: The components of the TECHNISYSTEM are not compatible with TECHNISWITCH components

Scope of delivery: TechniSat TECHNISYSTEM 5/8 G2 (basic unit), plug-in power supply (15V/1.5A), user manual

Ambient operating conditions
Ambient temperature: -25 ... 55 °C

Amplification
Sat: -2 ... 3 dB
Terrestrial: -4 ... -1 dB

Decoupling
Output: > 35 dB
Trunks: 40 dB

General characteristics
Top features: Professionelles Multischaltersystem für Großanlagen
Top features: Ohne Dämpfung im Sat-Bereich
Top features: Mit Schräglagenentzerrung
Top features: Für Quattro-LNB

Power supply
Nominal voltage: 100 ... 240 V
Frequency: 50 ... 60 Hz
Mains adapter: extern DC 15V/1,2A

Reception range
Sat: 950 ... 2.150 MHz
Terrestrial: 47 ... 862 MHz

Technical data
Satellite inputs: 4
Terrestrial input: 1
Outputs: 8
Distribution length: 100 m

Scope of Delivery
TECHNISYSTEM 5/8 G2, Power supply, Manual
