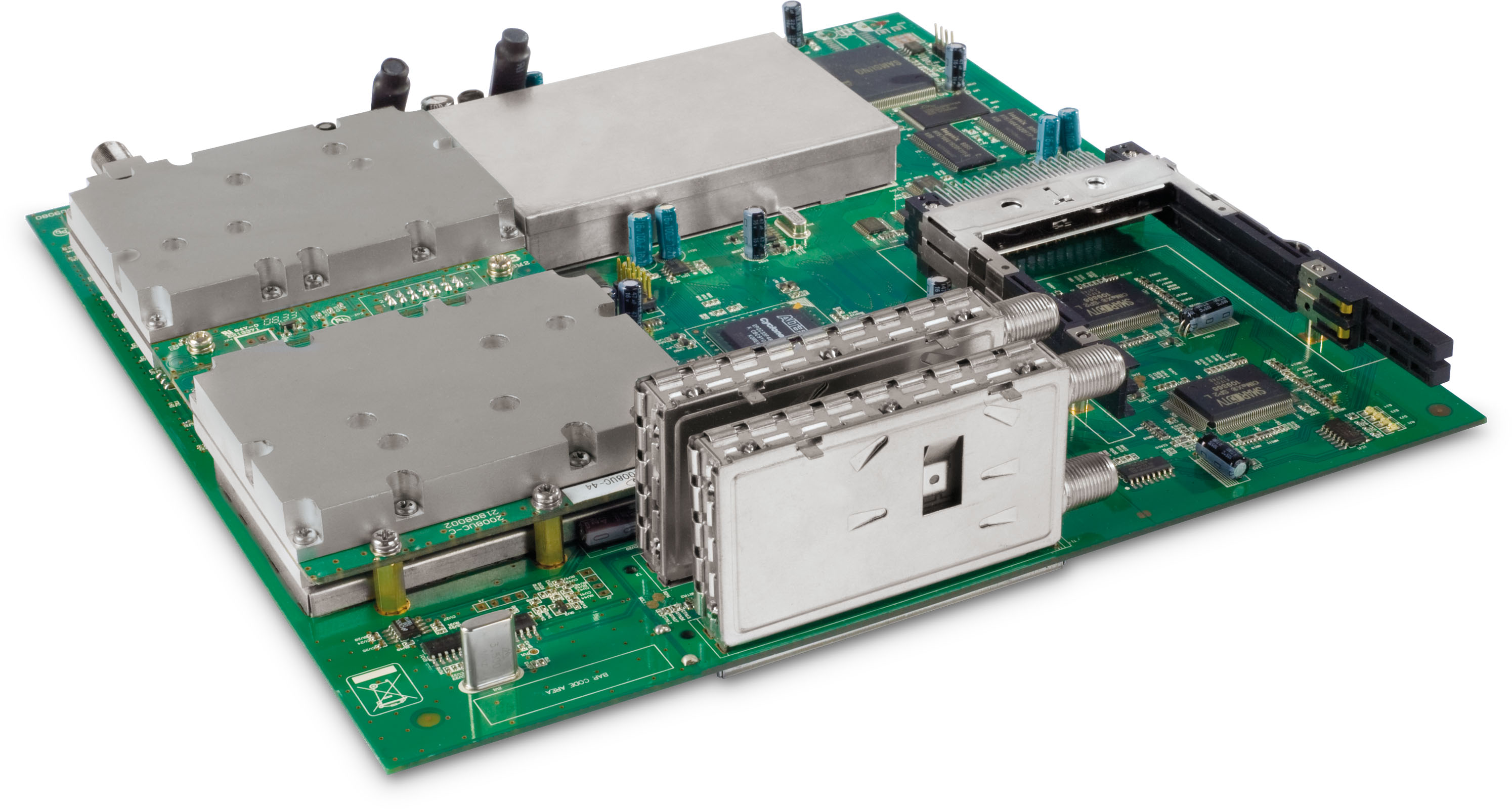

SKYCABLE 8-PSK/PAL CI TWIN
Convert 2 digital satellite channels (DVB-S/S2) into 2 analogue PAL B/G channels
| EAN | Colour | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| 4019588059627 | green | 0000/5962 | 1,1 kg | 800 g | 3,5 x 23,7 x 24 cm | 63 x 28,3 x 35,3 cm |
| Tuner (DVB-S2) |
|---|
| DVB-S2 demodulator: EN 302 307 |
| Demodulation: 8PSK, QPSK |
| Roll off factor: 0,20; 0,25; 0,35 |
| FEC block size: 64 kB |
| FEC Code rate (LDPC): 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Outer coding (BCH): GF(2^16), t=8, 10, 12 |
| Decoder |
|---|
| Video decoder: MPEG2, MP@ML |
| Audio decoder: MPEG1, MPEG2 |
| General characteristics |
|---|
| Top features: Echte TWIN Karte; Umsetzen von 2 SD Sat-Programmen (verschlüsselt oder unverschlüsselt) in 2 PAL B/G Kanäle |
| Top features: Eingangsfrequenzbereich von 950 bis 2150 MHz |
| Top features: Ausgangsfrequenzbereich von 110 bis 862 MHz (S2 bis K69) nachbarkanaltauglich |
| Top features: Ausgangspegel regelbar von 98 – 107 dBμV |
| Top features: 2 x Common Interface (getrennt einstellbar) |
| RF modulator |
|---|
| Modulation: CCIR PAL B/G |
| RF output converter |
|---|
| Noise: ≤ 45 typisch |
| C/N: 55 dB typisch |
| Output level: 81 ... 90 dB |
| Harmonic product: ≤ -50 dB typisch |
| Output frequency: 100 ... 860 MHz |
| Tuner DVB-S |
|---|
| DVB-S demodulator: EN 300 421 |
| Demodulation: QPSK |
| Symbol rates: 2 ... 45 |
| FEC code rate: 1/2, 2/4, 3/4, 5/6, 6/7, 7/8 (automatisch) |
| Interleaving: Convolutional; l=12 |
| Outer coding: Reed Solomon 204, 188, T=8 |
| Scope of Delivery |
|---|
| SkyCable 8PSK/PAL CI TWIN Karte |
