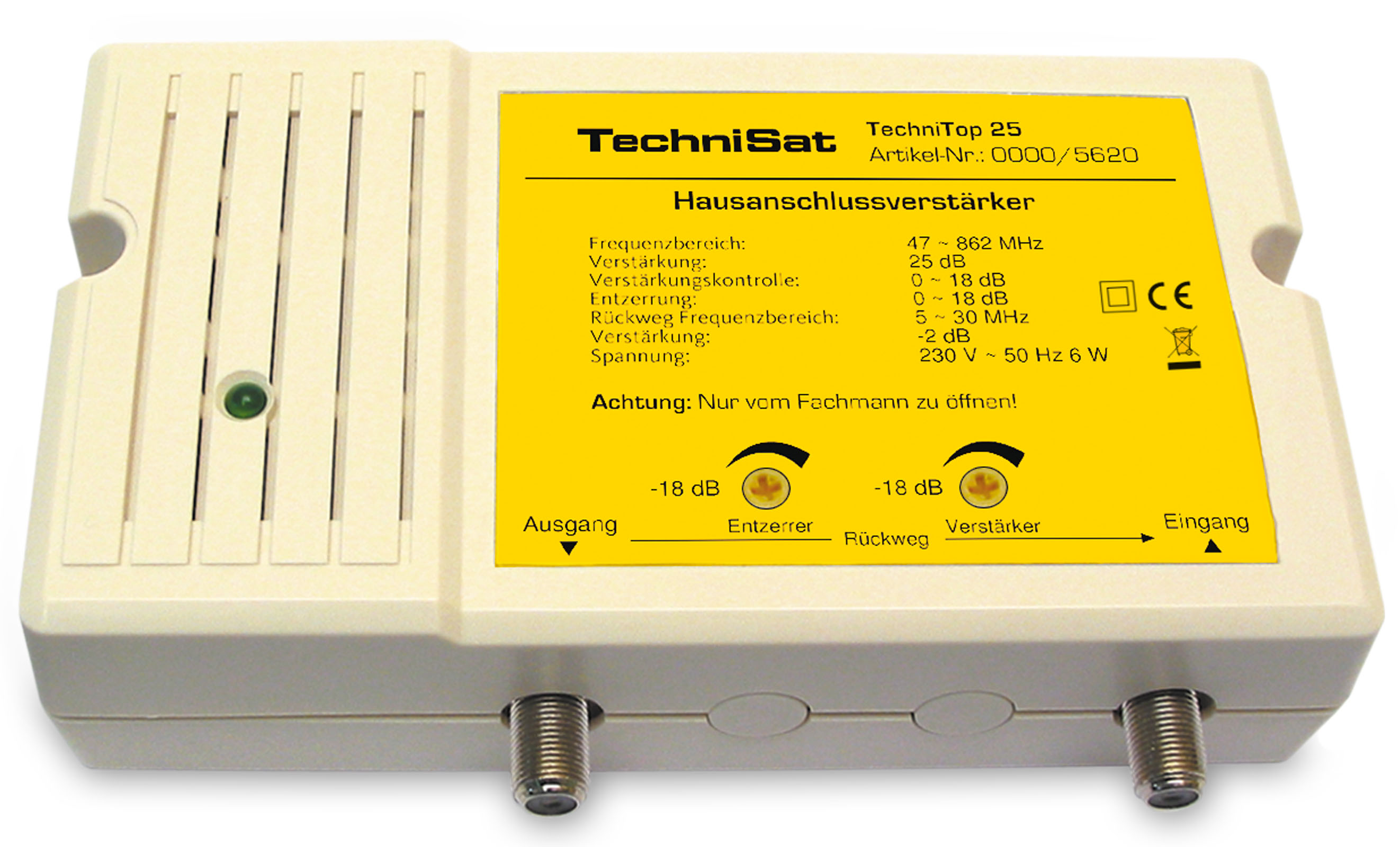

TechniTop 25
CATV amplifier with 25 dB gain and return path of 5-30 MHz.
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588056206 |
beige |
0000/5620 |
600 g |
496 g |
16 x 10,6 x 4,3 cm |
13,3 x 17 x 5,1 cm |
| General characteristics |
| Top features: Dämpfung und Entzerrung einstellbar |
| Output level |
| Standard IMA UHF: 111 dB |
| Standard IMA UHF: 111 dB |
| IMA DIN 45004B VHF: 102 dB |
| IMA DIN 45004B UHF: 102 dB |
| Power requirement |
| Power input: 4 W |
| Power supply |
| Nominal voltage: 230 V |
| Frequency: 50 ... 60 Hz |
| Mains adapter: internal |
| Range of adjustment |
| Attenuator: 0 ... 18 dB |
| Equaliser: 0 ... 18 dB |
| Technical data |
| Frequency range: 47 ... 862 MHz |
| Frequency range return path: 5 ... 30 MHz |
| Amplification: 25 dB |
| Noise factor: ≥ 7 dB |
| Shielding factor: ≥ 75 dB |
| Connector type: F female |
| Scope of Delivery |
| TechniTop 25 |
