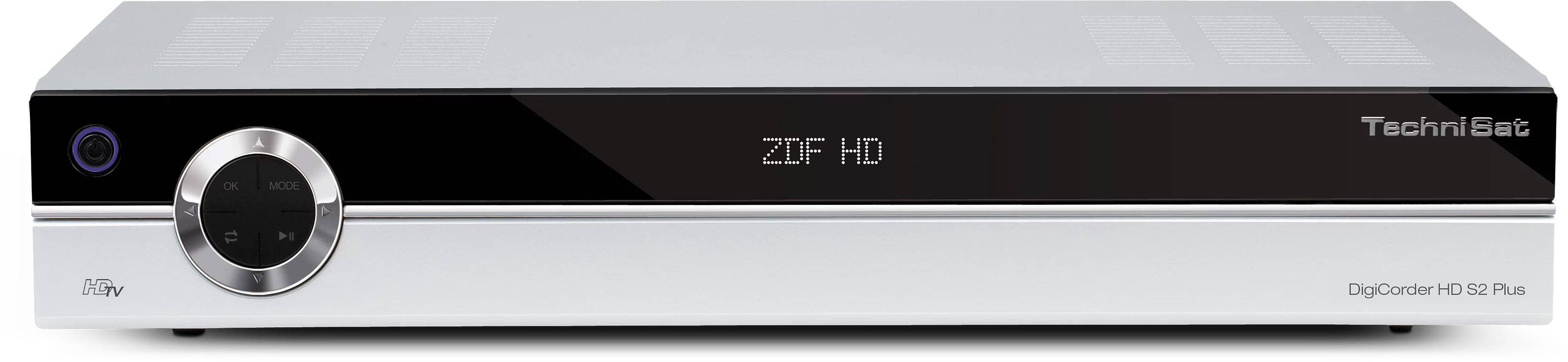

DIGICORDER HD S2 Plus
First-class HDTV receiver with integrated hard disc, which makes it possible to watch TV in a quality previously unheard of
| Hard drive |
EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 320 GigaByte |
4019588137219 |
silver |
1321/4720 |
2,9 kg |
2,66 kg |
37 x 6,5 x 22 cm |
44,5 x 12 x 28 cm |
| 320 GigaByte |
4019588137219 |
silver |
1321/4720 |
2,9 kg |
2,66 kg |
37 x 6,5 x 22 cm |
44,5 x 12 x 28 cm |
| 320 GigaByte |
4019588137219 |
silver |
1321/4720 |
2,9 kg |
2,66 kg |
37 x 6,5 x 22 cm |
44,5 x 12 x 28 cm |
| 320 GigaByte |
4019588137219 |
silver |
1321/4720 |
2,9 kg |
2,66 kg |
37 x 6,5 x 22 cm |
44,5 x 12 x 28 cm |
| 500 GigaByte |
4019588151208 |
silver |
0151/4720 |
2,9 kg |
2,6 kg |
37 x 6,5 x 22 cm |
44,5 x 12 x 28 cm |
| 320 GigaByte |
4019588137219 |
silver |
1321/4720 |
2,9 kg |
2,66 kg |
37 x 6,5 x 22 cm |
44,5 x 12 x 28 cm |
| Top Features |
- Integrierte Festplatte (160 GB, 320 GB oder 500 GB)
- Netzwerk- und USB-Schnittstelle
|
| LNB control |
| Vertical: 14 V |
| Horizontal: 18 V |
| Band switch: 22 kHz |
| DiSEqC: 1 |
| TechniSat added value services |
| AUTOINSTALL: Yes |
| Connections |
| HDMI™ (out): 1 |
| Common Interface (CI): 2 |
| Digital electric audio output (S/PDIF): Yes |
| Digital optical audio out: Yes |
| Audio out analogue (RCA): Yes |
| YUV (component output): 1 |
| Scart: 2 (RGB & S-Video) |
| Video Cinch out: 1 |
| Ethernet 10/100 (RJ-45): Yes (RJ-45) |
| F socket: 2 |
| RS-232: 1 |
| Decryption system |
| Conax: Yes |
| CI: Yes |
| Display |
| Picture in Picture (PIP): Yes (2 x SD, 1 x SD u. 1 x HD) |
| Freeze frame: Yes |
| Zoom: Yes |
| SD: Yes |
| 720p: Yes |
| HD: Yes |
| 1080i: Yes |
| Handling/comfort |
| Sleep timer: Yes |
| Other features |
| Total programme memory: 5.000 |
| Loopthrough: Yes |
| Power consumption |
| Standby LED: < 1 W |
| In operation: < 24 W |
| Power supply |
| Frequency: 50 Hz |
| Nominal voltage: 180 ... 250 V |
| Mains adapter: internal |
| Tuner |
| Tuner type: Twin-Tuner |
| Single Cable Solution (SatCR): SCR1 = EN50494 |
| TECHNIROUTER ready: Yes |
| Input impedance: 75 Ω |
| Reception on: HDTV (MPEG-4+2) SD (MPEG-2) |
| Tuner - Sat |
| Reception range: 2 x 950 ... 2.150 MHz |
| DVB-S: QPSK |
| DVB-S: 2 ... 45 |
| DVB-S2: 10 ... 31 (8PSK), 10…30Mbaud/s (QPSK) |
| DVB-S2: 8PSK - QPSK |
| Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 , (autom. Anpassung) |
| FEC: Viterbi and Reed-Solomon |
| Scope of Delivery |
| DigiCorder HD S2 Plus, Netzkabel, HDMI-Kabel, Komfort-Fernbedienung inkl. Batterien, Bedienungsanleitung, Garantiekarte |
Test Results DIGICORDER HD S2 Plus
