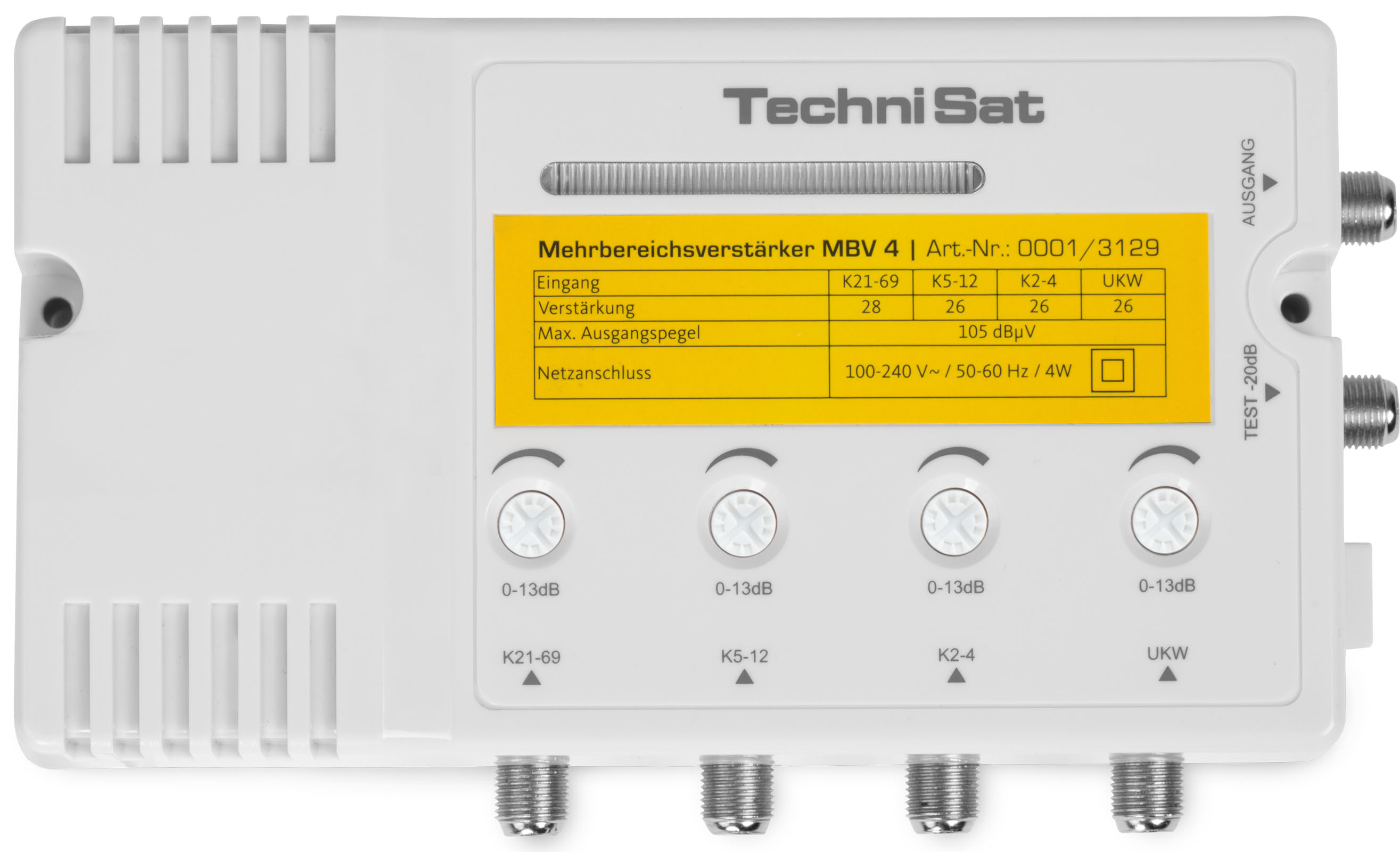

Multi range amplifier MBV 4
For amplifying and merging of UKW, VHF I + III, UHF signals with progressive input level alignment.
| EAN | Colour | Item no. | Weight |
|---|---|---|---|
| 4019588131293 | beige | 0001/3129 | 520 g |
| Amplification |
|---|
| UKW: 26 dB |
| VHF I: 26 dB |
| VHF III: 26 dB |
| UHF: 28 dB |
| General characteristics |
|---|
| Top features: Eingänge für UKW, VHF I + III, UHF |
| Top features: Verstärkung einstellbar |
| Top features: F-Anschlüsse |
| Top features: -20 dB Messausgang |
| Top features: Ausgangspegel bis 105 dBµV |
| Top features: Eingbautes Netzteil |
| Reception range |
|---|
| UKW: 87,5 ... 108 MHz |
| VHF I E2-E4: 47 ... 68 MHz |
| VHF III E5-E12: 174 ... 230 MHz |
| UHF E21-E69: 470 ... 862 MHz |
| Technical data |
|---|
| Noise factor: ≤ 8 dB |
| Level attenuation: 0 ... 13 dB (einstellbar) |
| Impedance: 75 Ω |
| Output level: 105 |
| Current consumption: 20 mA |
| Voltage supply: 230 VAC / 50 Hz (eingebautes Netzteil) |
| Scope of Delivery |
|---|
| Mehrbereichsverstärker MBV 4 |
