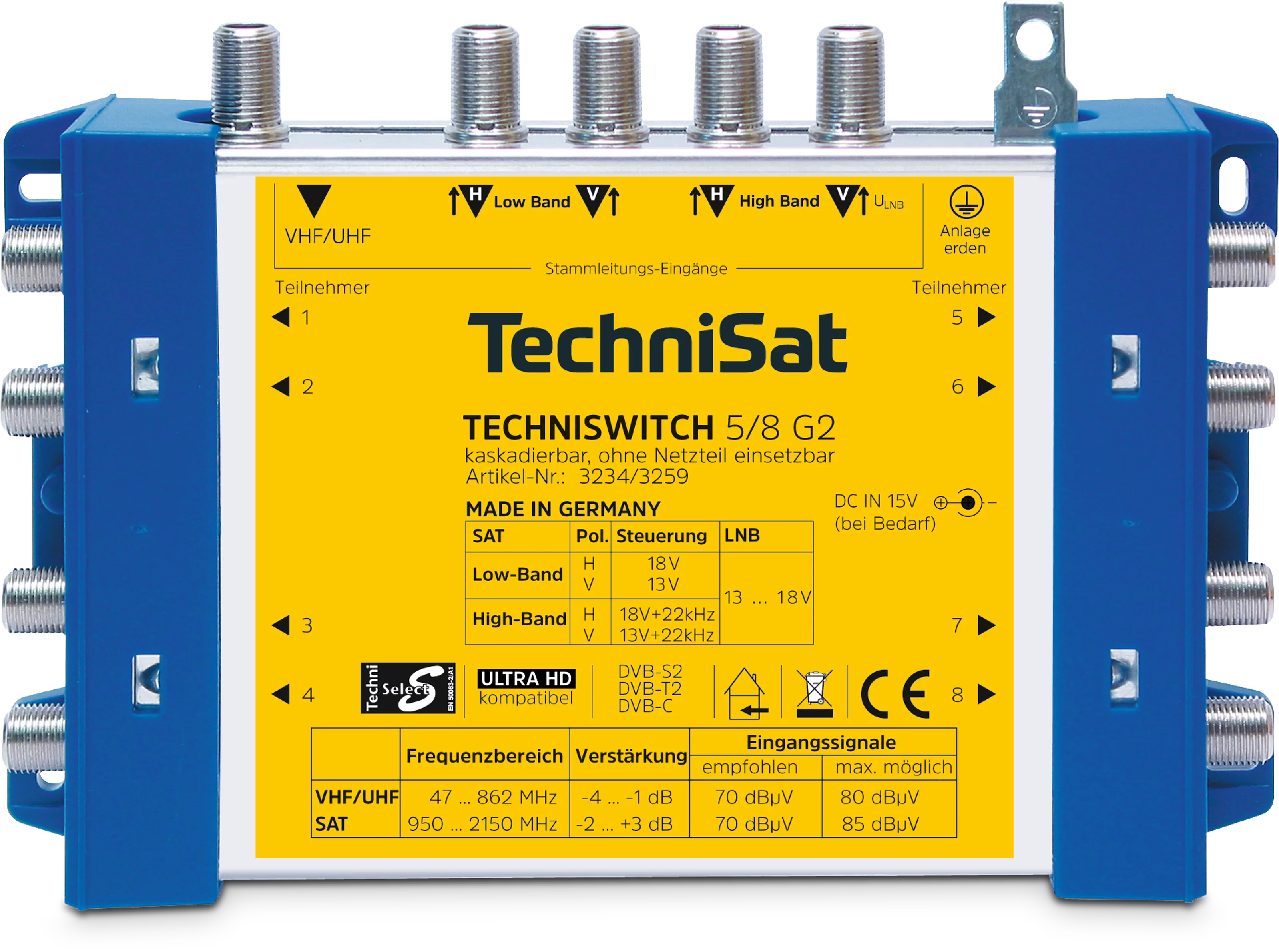

TECHNISWITCH 5/8 G2
Multi-switch system with connection possibility of 4 levels for distribution to up to 24 participants
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588353596 |
blue/yellow |
3235/3259 |
600 g |
300 g |
17,2 x 11,2 x 3,3 cm |
17,5 x 13,4 x 10,5 cm |
| Top Features |
- DAB+ and FM radio with RDS – Enjoy noise-free reception with DAB+ digital radio or listen to your favorite stations via classic FM radio with RDS and PLL technology
- The professional system for Quattro LNB features 4 satellite inputs, 1 terrestrial input, and 8 outputs
- Without attenuation in the satellite range, with tilt equalization.
- Note: TECHNISYSTEM components are not compatible with TECHNISWITCH parts
|
| Ambient operating conditions |
| Ambient temperature: -25 ... 55 °C |
| Amplification |
| Sat: -2 ... 3 dB |
| Terrestrial: -4 ... -1 dB |
| Decoupling |
| Output: > 35 dB |
| General characteristics |
| Top features: For distribution of one satellite position |
| Top features: Up to 24 subscribers can be connected |
| Top features: For connecting a Quatro LNB |
| Top features: Up to 100 m distribution length due to inclination compensation |
| Top features: Energy saving - no mains adapter for operation |
| Top features: No attenuation in satellite range |
| Power supply |
| Nominal voltage: 100 ... 240 V |
| Frequency: 50 ... 60 Hz |
| Mains adapter: extern DC 15V/1,2A |
| Reception range |
| Sat: 950 ... 2.150 MHz |
| Terrestrial: 47 ... 862 MHz |
| Technical data |
| Satellite inputs: 4 |
| Terrestrial input: 1 |
| Outputs: 8 |
| Distribution length: max. 100 m |
| Scope of Delivery |
| TechniSwitch 5/8 G2, Power supply, manual |
