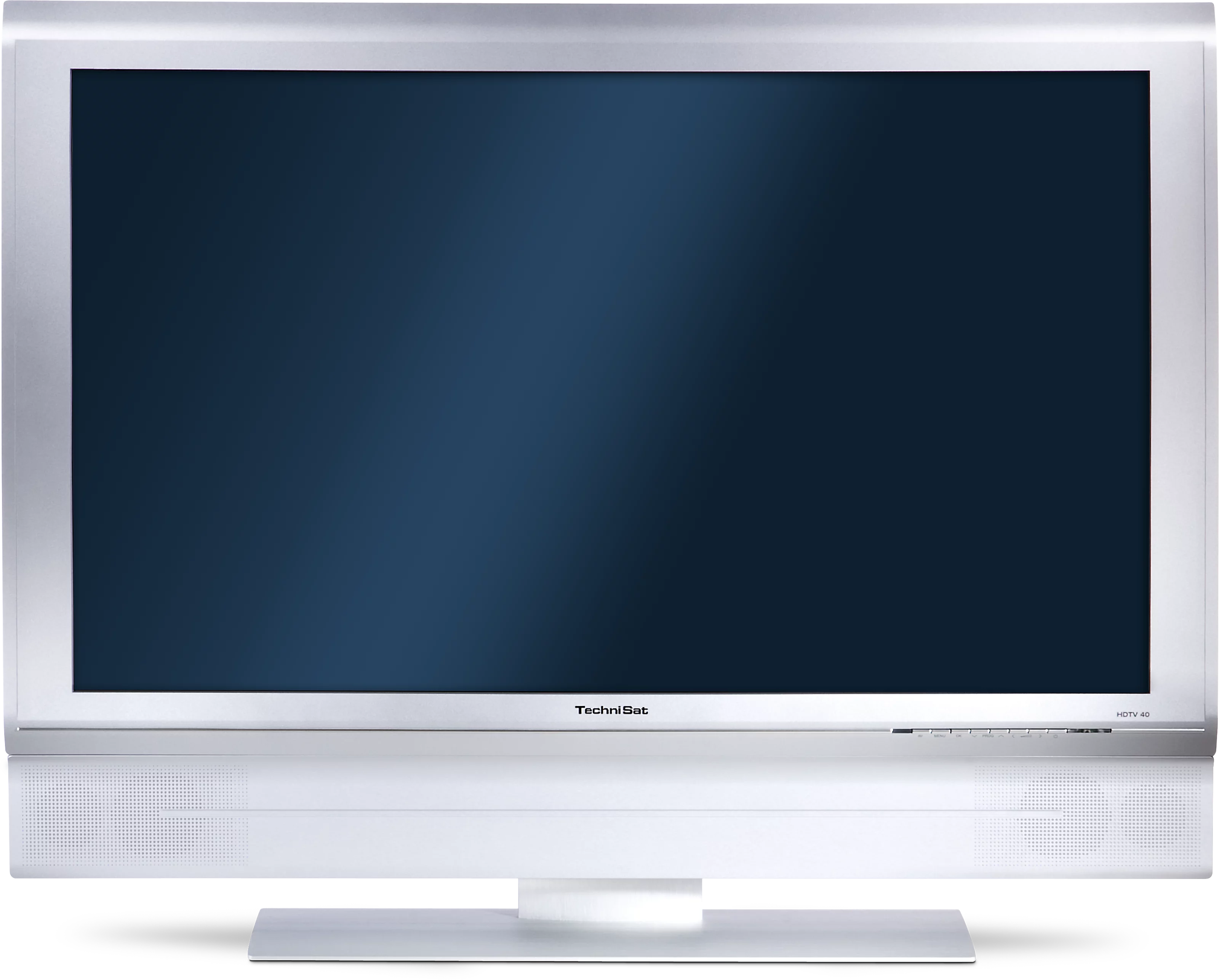

HDTV 40
40 inch multimedia television set (Full-HD) with elegant front frame, comes equipped with Dual HDTV multi-tuner and digital video recorder (integrated hard drive)
| EAN | Colour | Item no. | Unit without stand (W x H x D) | Device (W x H x D) | Box |
|---|---|---|---|---|---|
| 4019588343009 | silver | 5340/0300 | 1.005 x 715 x 110 mm | 100,5 x 77,5 x 20 cm | 122 x 88 x 32 cm |
| 4019588343160 | black | 5340/0316 | 1.005 x 715 x 110 mm | 100,5 x 77,5 x 20 cm | 122 x 88 x 32 cm |
| 4019588343054 | platin | 5340/0305 | 1.005 x 715 x 110 mm | 100,5 x 77,5 x 20 cm | 122 x 88 x 32 cm |
| Top Features |
|---|
|
| Ambient operating conditions |
|---|
| Humidity: 10 - 75 % |
| Ambient temperature: 5 - 35 °C |
| LNB control |
|---|
| Current consumption: 400 mA |
| DiSEqC: DiSEqC 1.0 / DiSEqC 1.x Sat Channel Router |
| Vertical: <14 V without load, > 11.5 V at 400 mA V |
| Band switch: 22 kHz |
| Horizontal: <20 V without load, > 17.2 V at 400 mA / LNB shut-off standby mode V |
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Audio |
|---|
| AC3 Dolby Digital bitstream out: Yes |
| Speakers: 2 x 2-way sound system with bass reflex |
| Connections |
|---|
| HDMI™ (in): 3 |
| Common Interface (CI): 2 |
| Smartcard reader: Yes |
| Subwoofer output: Yes |
| VGA: Yes |
| YUV (component input): Yes |
| Scart: 2 |
| S Video: Yes |
| Video IN: 1 |
| Ethernet 10/100 (RJ-45): Yes (RJ-45) |
| F socket: 2 |
| IEC-Connector: Yes |
| RS-232: |
| Decryption system |
|---|
| Conax: Yes |
| CI: Yes |
| Dimensions / Weight |
|---|
| Set width without stand: 1.005 mm |
| Set height without stand: 715 mm |
| Set depth without stand: 110 mm |
| Display |
|---|
| Size (cm): 102 cm |
| Format: 16:9 |
| Contrast ratio: 3.000:1 |
| Brightness: 500 cd/m² |
| Picture in Picture (PIP): Yes |
| Response time: 8 ms |
| Angle of view: 178° / 178° |
| Picture and Picture (PAP): Yes |
| Freeze frame: Yes |
| Zoom: Yes |
| SD: Yes |
| Resolution (vertical and horizontal): 1920 x 1080 |
| Size (inches): 40 |
| Type: TFT-LCD "Full HD" |
| HD: Yes |
| 720p: Yes |
| 1080i: Yes |
| General characteristics |
|---|
| Hard drive: 250 GigaByte |
| Handling/comfort |
|---|
| Clock: Yes |
| Sleep timer: Yes |
| Alarm: Yes |
| Hotel mode |
|---|
| Customisable start screen: Yes |
| Configurable on times: Yes |
| Energy card function: Yes |
| USB cloning function: Yes |
| Multimedia connectors: Yes |
| Menu locking: Yes |
| Radio mode: Yes |
| Mixing of channel slots: Yes |
| Multicode remote control: Yes |
| Fireproofed housing: Yes |
| materials contained |
|---|
| Lead: Yes |
| Other features |
|---|
| OSD languages: French, Polish, Russian, English, Swedish, Greek, Dutch, Czech, Portuguese, German, Italian, Hungarian, Turkish, Spanish |
| Total programme memory: 5.000 |
| Regional channel selection: Yes |
| Power consumption |
|---|
| SFIplus updating: 45 W |
| Software update: 45 W |
| Energy class: D |
| Standby fast start: 36 W |
| Standby LED: 0,55 W |
| In operation: 169 W |
| annual energy consumption when switched on: 247 kilowatt hour per annum |
| Off status: |
| Power switch: Yes |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Mains adapter: internal |
| Frequency: 50 Hz |
| Tuner |
|---|
| Tuner type: Dual-HDTV-Multituner |
| DVB-S tuner: 2 |
| DVB-C Tuner: 2 |
| DVB-T Tuner: 2 |
| Analogue UHF/VHF/CATV tuner: 2 |
| Reception on: HDTV (Mpeg-4+2) SD (MPEG-2) |
| Input impedance: 75 Ω |
| TECHNIROUTER ready: Yes |
| Tuner - Analogue |
|---|
| Reception range: 46 ... 860 MHz |
| Video standards: PAL, SECAM |
| Tuner - Cable |
|---|
| Symbol rate: 1,7 ... 7 |
| FEC: Reed-Solomon |
| Reception range: 47 ... 862 MHz |
| Demodulation: 16/32/64/128/256 QAM |
| Tuner - Sat |
|---|
| DVB-S2: 8PSK - QPSK |
| DVB-S: QPSK |
| Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 |
| FEC: Viterbi and Reed-Solomon |
| Reception range: 950 ... 2.150 MHz |
| DVB-S2: 10 ... 31 |
| DVB-S: 1 ... 45 |
| Tuner - Terrestrial |
|---|
| Demodulation: COFDM |
| Reception range 1: 174 ... 230 MHz |
| Voltage supply: 0,05 V |
| Reception range 2: 470 ... 860 MHz |
| Bitrate: 4 ... 32 |
| Power supply: 5 A |
| Transmission mode: 2k/8k |
| wall bracket |
|---|
| VESA wall mounting standards: VESA 400 x 200 |
| Scope of Delivery |
|---|
| HDTV 40, mains power cable, fully specified remote control, remoty remote control, 4 batteries (1.5 V AAA), angled screwdriver, operating manual, quick-and-easy manual, guarantee documents |
Test Results HDTV 40
AudioVideoFoto (11/2008)
