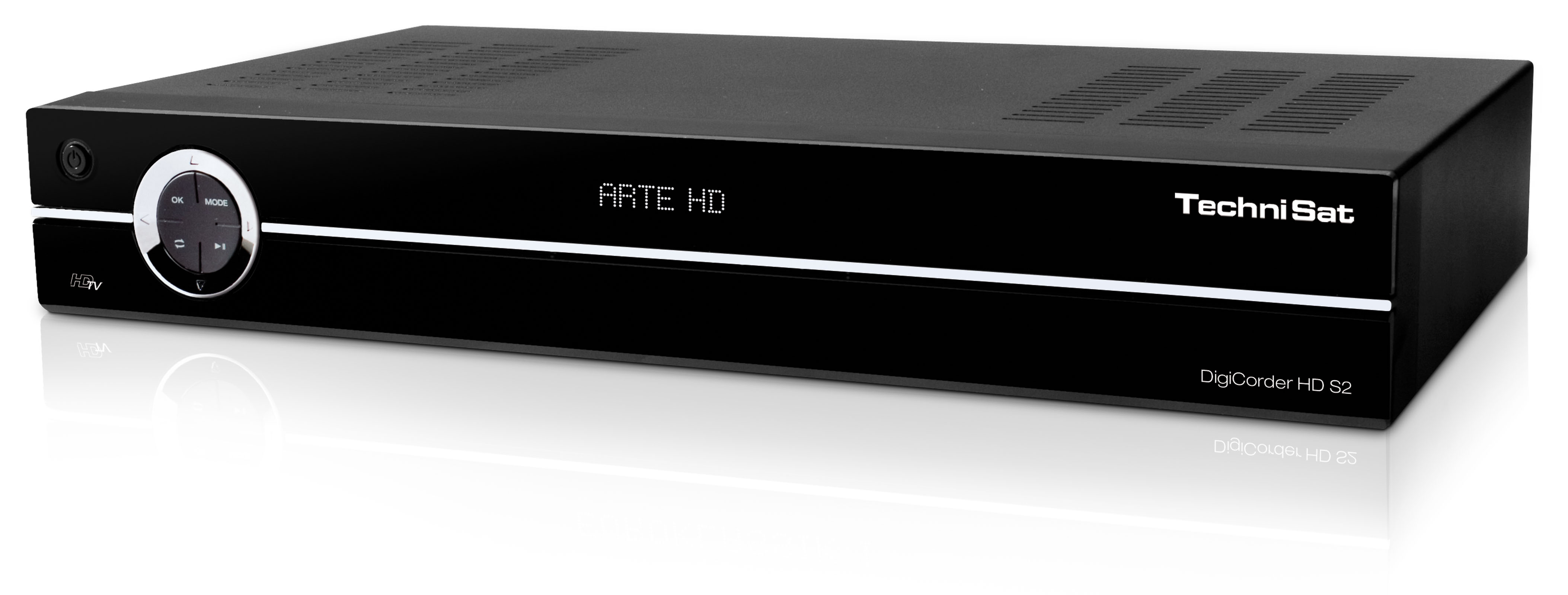

DIGICORDER HD S2
First-class HDTV receiver with integrated hard disc, which makes it possible to watch TV in a quality previously unheard of
| EAN | Colour | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| 4019588047204 | black | 0000/4720 | 2,9 kg | 2,66 kg | 37 x 6,5 x 22 cm | 44,5 x 12 x 28 cm |
| LNB control |
|---|
| DiSEqC: 1 |
| Horizontal: 18 V |
| Vertical: 14 V |
| Band switch: 22 kHz |
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Audio |
|---|
| AC3 Dolby Digital bitstream out: Yes |
| Connections |
|---|
| HDMI™ (out): 1 |
| Common Interface (CI): 2 |
| Digital electric audio output (S/PDIF): Yes |
| Digital optical audio out: Yes |
| Audio out analogue (RCA): Yes |
| YUV (component output): 1 |
| Scart: 2 |
| Video Cinch out: 1 |
| Ethernet 10/100 (RJ-45): Yes (RJ-45) |
| F socket: 2 |
| RS-232: 1 |
| Decryption system |
|---|
| Conax: Yes |
| CI: Yes |
| Display |
|---|
| Picture in Picture (PIP): Yes (2 x SD, 1 x SD u. 1 x HD) |
| Freeze frame: Yes |
| Zoom: Yes |
| SD: Yes |
| 720p: Yes |
| 1080i: Yes |
| HD: Yes |
| Other features |
|---|
| Total programme memory: 5.000 |
| Loopthrough: Yes |
| Power consumption |
|---|
| Standby LED: < 1 W |
| In operation: < 24 W |
| Power supply |
|---|
| Mains adapter: internal |
| Nominal voltage: 180 ... 250 V |
| Frequency: 50 Hz |
| Tuner |
|---|
| Tuner type: Twin-Tuner |
| Single Cable Solution (SatCR): SCR1 = EN50494 |
| Input impedance: 75 Ω |
| TECHNIROUTER ready: Yes |
| Reception on: HDTV (Mpeg-4+2) SD (MPEG-2) |
| Tuner - Sat |
|---|
| DVB-S: QPSK |
| Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 , (autom. Anpassung) |
| DVB-S2: 8PSK - QPSK |
| DVB-S: 2 ... 45 |
| FEC: Viterbi and Reed-Solomon |
| DVB-S2: 10 ... 31 (8PSK), 10…30Mbaud/s (QPSK) |
| Reception range: 2 x 950 ... 2.150 MHz |
| Scope of Delivery |
|---|
| Scope of delivery DigiCorder HD S2 1 mains cable 1 SCART cable 1 remote control 2 batteries (1.5 V AAA) Operating manual Guarantee card |
Test Results DIGICORDER HD S2
Testsieger
video (01/2008)
Preis/Leistung: Sehr gut | Note: 1,3
HiFi Test TV-Video (01/2008)
Preis/Leistung: Sehr gut | Note: 1,3
Heimkino (02/2008)
Testurteil: Sehr gut | Preiurteil: Sehr gut
HomeVision (05/2008)
Test-Sieger
AudioVideoFoto (02/2008)
Testsieger | Note: Gut (1,8)
Siftung Warentest (10/2008)
