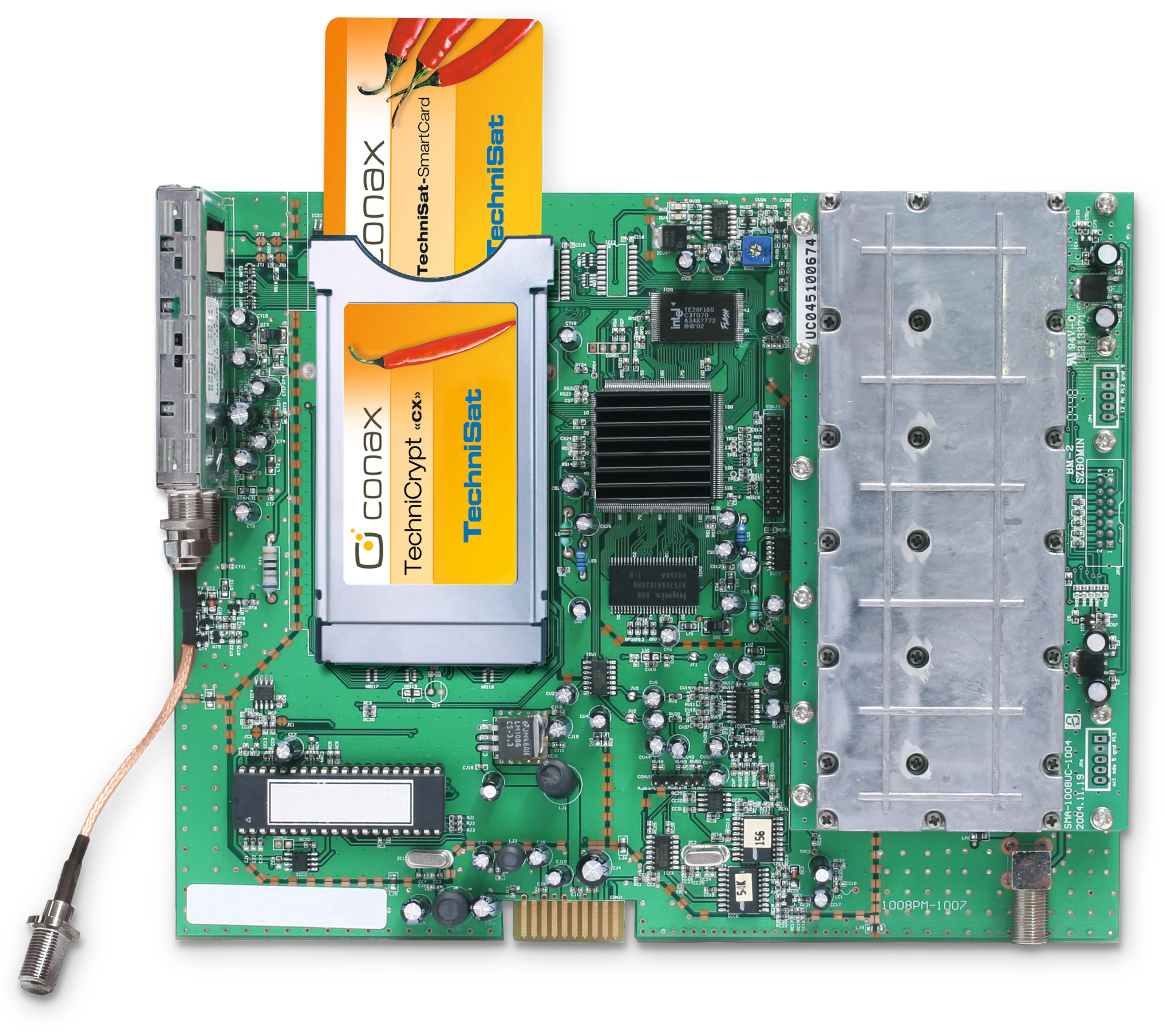

TECHNINET DVB-S PAL 1 CI
Converter card for a digital satellite broadcasts (DVB-S 1) in one analog PAL programm
| EAN | Colour | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| 4019588059450 | green | 0000/5945 | 800 g | 600 g | 23,5 x 45 x 18,5 cm | 22,5 x 8,5 x 30 cm |
| Decoder |
|---|
| Audio decoder: MPEG1, MPEG2 |
| Video decoder: MPEG2, MP@ML |
| General characteristics |
|---|
| Top features: Umsetzen von 1 SD Sat-Programm (verschlüsselt oder unverschlüsselt) in 1 PAL Programm |
| Top features: Eingangsfrequenzbereich von 950 bis 2150 MHz |
| Top features: Ausgangsfrequenzbereich von 110 bis 862 MHz (S2 bis K69) nachbarkanaltauglich |
| Top features: Ausgangpegel regelbar von 80 - 100 dBµV |
| Top features: Common Interface |
| RF modulator |
|---|
| Modulation: CCIR PAL B/G |
| RF output converter |
|---|
| Output frequency: 110 ... 862 MHz |
| Output level: 80 ... 100 dB |
| Tuner DVB-S |
|---|
| DVB-S demodulator: EN 300 421 |
| Demodulation: QPSK |
| Symbol rates: 2 ... 35 |
| Roll off factor: 0,20; 0,35 |
| FEC code rate: 1/2, 2/4, 3/4, 5/6, 6/7, 7/8 (automatisch) |
| Interleaving: Convolutional; l=12 |
| Outer coding: Reed Solomon 204, 188, T=8 |
| Scope of Delivery |
|---|
| Converter card TechniNet PAL DVB-S CI |
