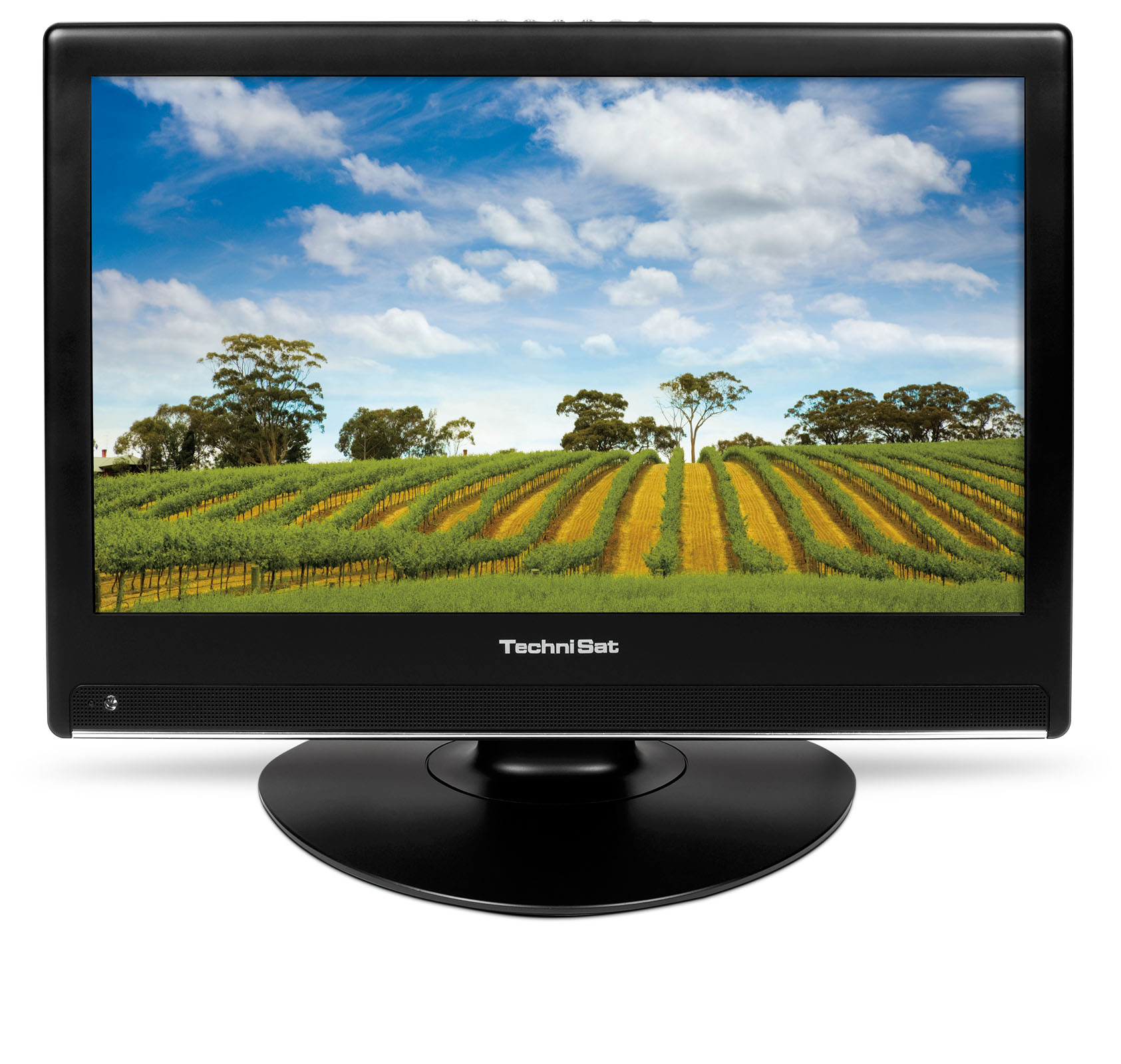

TECHNIVISION 22 ST
Versatile LCD digital television set with 22?? wide screen and integrated digital receiver for satellite reception and digital antenna reception (DVB-T)
| EAN | Colour | Item no. | Weight (Box) | Weight | Unit without stand (W x H x D) | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|---|
| 4019588226432 | black | 5022/6403 | 8 kg | 7 kg | 530 x 360 x 85 mm | 53 x 41,5 x 20,5 cm | 59,5 x 47,3 x 23,4 cm |
| Ambient operating conditions |
|---|
| Humidity: 10 75 % |
| Ambient temperature: 5 35 °C |
| LNB control |
|---|
| Current consumption: 400 mA |
| Vertical: <14 V without load, > 11.5 V at 400 mA V |
| DiSEqC: DiSEqC 1.0 / DiSEqC 1.2 Sat Channel Router |
| Horizontal: <20 V without load, > 17.2 V at 400 mA / LNB shut-off standby mode V |
| Band switch: 22 kHz |
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Audio |
|---|
| Speakers: 2 W |
| Connections |
|---|
| HDMI™ (in): 1 |
| Common Interface (CI): 1 |
| VGA: Yes |
| Scart: 1 |
| S Video: Yes |
| F socket: 1 |
| Decryption system |
|---|
| CI: Yes |
| Dimensions / Weight |
|---|
| Weight without stand: 5,9 kg |
| Set width without stand: 530 mm |
| Set height without stand: 360 mm |
| Set depth without stand: 85 mm |
| Display |
|---|
| Size (cm): 55 |
| Format: 16:9 |
| Contrast ratio: 700:1 |
| Brightness: 400 cd/m² |
| Response time: 5 ms |
| Angle of view: 150° V / 160° H |
| Freeze frame: Yes |
| Zoom: Yes |
| Resolution (vertical and horizontal): 1366 x 768 |
| Type: TFT-LCD |
| SD: Yes |
| Size (inches): 22 |
| Handling/comfort |
|---|
| Alarm: Yes |
| Sleep timer: Yes |
| Hotel mode |
|---|
| Radio mode: Yes |
| Mixing of channel slots: Yes |
| materials contained |
|---|
| Lead: Yes |
| Other features |
|---|
| OSD languages: Dutch, Polish, Czech, German, Italian, Turkish, Hungarian, English, Russian, Spanish, Greek, Swedish, Portuguese, French |
| Total programme memory: 4.000 |
| Power consumption |
|---|
| Energy class: D |
| Standby LED: 0,45 W |
| In operation: 50 W |
| annual energy consumption when switched on: 73 kilowatt hour per annum |
| Off status: |
| Power switch: Yes |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Mains adapter: internal |
| Tuner |
|---|
| Tuner type: DigitalSat und DVB-T-Empfangstuner |
| DVB-S tuner: 1 |
| DVB-T Tuner: 1 |
| Analogue UHF/VHF/CATV tuner: 1 |
| Input impedance: 75 Ω |
| Reception on: SD (MPEG-2) |
| TECHNIROUTER ready: Yes |
| Tuner - Analogue |
|---|
| Video standards: PAL, SECAM |
| Reception range: 46 860 MHz |
| Tuner - Sat |
|---|
| Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 |
| FEC: Viterbi and Reed-Solomon |
| Reception range: 950 ... 2.150 MHz |
| DVB-S: 1 ... 45 |
| DVB-S: QPSK |
| Tuner - Terrestrial |
|---|
| Bitrate: 4 32 |
| Voltage supply: 0,05 V |
| Demodulation: COFDM |
| Power supply: 5 A |
| Transmission mode: 2k/8k |
| Reception range 2: 470 ... 860 MHz |
| Reception range 1: 174 ... 230 MHz |
| wall bracket |
|---|
| VESA wall mounting standards: VESA 100 x 100 |
| Scope of Delivery |
|---|
| TechniVision 22 ST, Remote control, Power cable |
