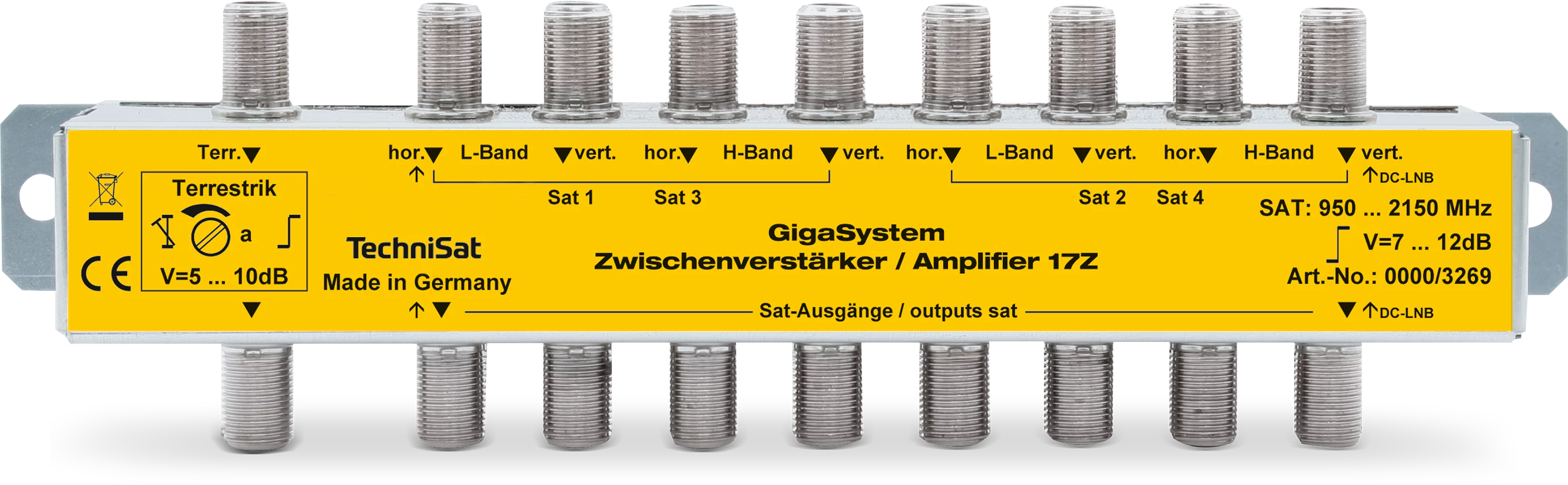

Line Amplifier 17Z
Amplifier for signal gain for 4 orbital positions
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588032699 |
silver/yellow |
0000/3269 |
500 g |
300 g |
21 x 4,4 x 5,5 cm |
22,7 x 6 x 10,8 cm |
| Ambient operating conditions |
| Ambient temperature: -25 ... 55 °C |
| Amplification |
| Sat: 7 ... 12 dB fest, schräglagenentzerrt |
| Terrestrial: 5 ... 10 dB einstellbar |
| General characteristics |
| Top features: Kompensiert die Dämpfung von bis zu 40 m Koaxkabel |
| Power supply |
| Power consumption: typ. 180 mA @18V |
| Reception range |
| Sat: 950 ... 2.150 MHz |
| Terrestrial: 47 ... 862 MHz |
| Technical data |
| Satellite inputs: 16 |
| Terrestrial input: 1 |
| Scope of Delivery |
| Line Amplifier 17Z, instruction manual |
