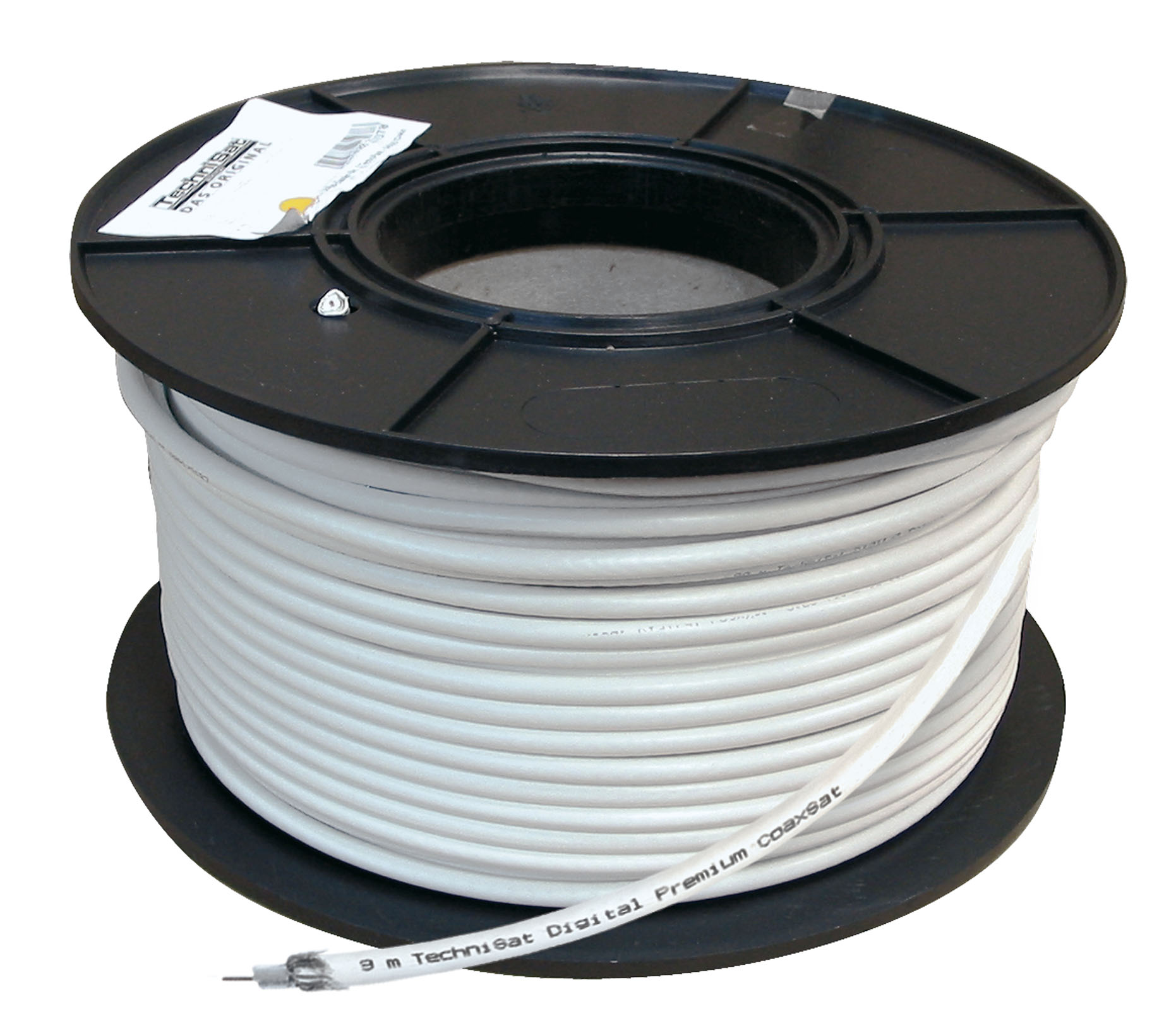

120 dB Premium Cable

Attenuation
5 MHz: 1,7
10 MHz: 2,3
25 MHz: 3,4
45 MHz: 4,4
65 MHz: 5,3
100 MHz: 6,7
200 MHz: 9,3
450 MHz: 14,1
800 MHz: 18,4
1000 MHz: 22,2
1350 MHz: 25
1750 MHz: 29,6
2050 MHz: 33,3

DC resistance
Inner cable: 19
Outer cable: 9,5

Return loss
5 - 30 MHz: ≥ 31 dB
30 - 65 MHz: ≥ 33 dB
65 - 470 MHz: ≥ 30 dB
470 - 1800 MHz: ≥ 28 dB
1800 - 2450MHz: ≥ 28 dB

Shielding
30 - 470 MHz: ≥ 130 dB
470 - 1800 MHz: ≥ 120 dB
1800 - 2450 MHz: ≥ 110 dB

Technical data
Impedance: 75 Ω (± 3)
Inner cable diameter: 1 mm (18AWG)
Inner cable material: Copper bare (OFC)
Isolation: Zell-PE
Diameter dielectric: 4,6 mm (± 0,1)
Outer cable: 1 x Alum. foil + 2 x tinned coppper braiding 24 x 3 x 0.12 mm + 1 x Alum. foil
Sheath: PVC, withe
Diameter with coating: 7 mm (± 0,2)
Bending radius: ≥ 50 mm
Coupling resistance: ≤ 1,5 @ 5 MHz
Capacity: 55 pF
Shrinkage factor: 0,85
Shielding factor: typ. 120 dB ≙ Klasse A+

Transfer impedance
5MHz: ≤ 1,5
30 MHz: ≤ 0,2
