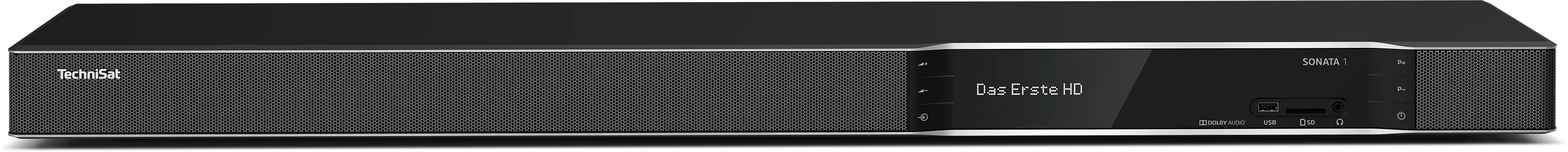

SONATA 1

TechniSat added value services
TECHNIFAMILY: Yes
TECHNIMATIC: Yes
AUTOINSTALL: Yes
ISIPRO: Yes
SFI+: Yes
ISI-Mode: Yes

sonstiges
ts_mehrwert_isipro_kabel: Yes

Multimedia
DVR function: Optionally usable 2,5' - HDD, USB storage, NAS
Recordings edition function: Yes
DVR storage medium: Optional einsetzbare 2,5"-HDD, USB-Speicher, NAS
Multi Recording: Yes
Timeshift: Yes
Recordings folder management: Yes

WLAN
WLAN: 802.11n a/b/g (2,4 GHz / 5 GHz)
2,4 GHz: Yes
5 GHz: Yes

Ambient operating conditions
Ambient temperature: 5 ... 35 °C
Humidity: 10 ... 75 %

LNB control
Vertical: 14 V
Horizontal: 18 V
Band switch: 22 kHz
Current consumption: max. 400 mA (short-circuit protection)
DiSEqC: 1.0 / 1.2 / SCR1 / SCR2

Internet/Network
Internet speed test: Yes
HbbTV: Yes
ISIO Internet: Yes
VoD services: Yes
HTML 5 support: Yes
RadioDNS: Yes
Webbrowser: Yes

Audio
HDMI ARC: Yes
Dolby Digital™: Yes
Dolby Prologic II™: Yes
audio_klare_sprache: Yes über DVB

Bluetooth Version & Profile
Bluetooth version: 2.1 + EDR / 4.2 (BLE)
A2DP (Advanced Audio Distribution Profile ): Yes
AVRCP (Audio Video Remote Control Profile): Yes

Card reader
SD card: Yes

Connections
HDMI™ (in): 1
HDMI™ (out): 1 (ARC) (HDCP 2.2)
USB: 3 (3.0) / (1x Front)
SATA Interface: 1
Audio in optical (Toslink): 1
Audio input analogue (RCA): Yes
Subwoofer output: Yes (Cinch)
Ethernet 1Gbit/s (RJ-45): 1
F socket: 2
IEC-Connector: Yes
Headphone connection jack (3,5mm): 1

Decryption system
CI+: Yes

Display
Picture in Picture (PIP): Yes (2x SD, 2x HD, 1x UHD and 1x HD, 1x UHD and 1x SD, 1x SD and 1x HD)
Picture and Picture (PAP): Yes
Freeze frame: Yes
Zoom: Yes
UHD/4K upscaling: Yes
SD: Yes
HD: Yes
UHD: Yes
2160p: Yes
1080p: Yes
1080i: Yes
720p: Yes
576p: Yes
576i: Yes
Type: VF-display, 16 digits

Handling/comfort
Channel number mix: Yes
Smart Home client: Yes
Selection regional channels: Yes
Media Player: Yes
Sleep timer: Yes
Alarm: Yes
CONNECT app: Yes
Parental Control: Yes
Autostandby: Yes
Clock: Yes
Hotel mode: Yes
Teletext subtitles: Yes
Quick start: Yes
Teletext: Yes
Channel presets: 9.999
Page memory: 1.000
Remote control: Yes

Hotel mode
Protected access to hotel mode: Yes
Customisable start screen: Yes
Lockable volume: Yes
Menu locking: Yes
Control panel lock: Yes
Integrated LED clock: Yes
Selectable start source: Yes
Selectable start channel: Yes

Loudspeakers
Output performance: 4 x 15 W
ELAC-Speaker: Yes

Network & communication
Bluetooth: Yes (Sending & Receiving)
Audio radio: 5,2 / 5,8 GHz
1000Base-T: Yes
IGMP: Yes
HTTP: Yes
RTP: Yes
UDP: Yes
UPnP: Yes
TCP/IP: Yes
HTTPS: Yes
DHCP: Yes (Client)
IPv4: Yes

Other features
OSD languages: English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian

Power consumption
Standby LED: 0,4 W
Power consumption in standby mode with active network connection: 9,7 W

Power supply
Nominal voltage: 230 V
Frequency: 50 Hz
Mains adapter: internal

Radio / reception
DAB+: 174 - 240 MHz
Internet radio: Yes
Aerial: Jack (3.5 mm) or IEC socket (Antenna not included in scope of delivery)
RadioDNS: Yes
Radio EPG: Yes

Streaming
DLNA Server: Yes
Cloud store: Ja
Parental Control: Yes
DLNA Client: Yes

Supported formats & codecs
Video-Codecs: MPEG-2, MPEG-4, MPEG-1, H.264 (H.264/AVC Level 4.2), H.265, DivX, VC-1
Video-Formats: M4V, MP4, MKV, MOV, MPG, MTS, TS, TS4, VOB, WMV, Xvid, M2TS, AVI, ASF
Picture-Formats: BMP, JPEG, GIF, PNG
Audio-Formats: WAV, MP3, AAC, FLAC, M4A, MP2, DDAC3, AIFF

TechniSat CONNECT
Control: Yes
SFI: Yes
Smart Home: Yes (Client)

Tuner
Tuner type: 3 x Twin-Tuner
DVB-S tuner: 2
DVB-C Tuner: 2
Tuner DVB-T2: 2
DAB+ digital radio: 1
DVB-IP (multicast): 1
Satellite radio: Yes
Cable radio: Yes
Internet radio: Yes
Reception on: UHD ( H.265/HEVC), HDTV (MPEG-4), SD (MPEG-2), DAB+
TECHNISELECT 12 ready: Yes
Single Cable Solution (SatCR): SCR1 = EN50494, SCR2 = EN50607
TECHNIROUTER ready: Yes

Tuner - Cable
Reception range: 50 ... 858 MHz
Demodulation: 16 / 32 / 64 / 128 / 256 QAM
Symbol rate: 1,5 ... 7,2
FEC: Reed-Solomon (204,188)

Tuner - Sat
Reception range: 950 ... 2.150 MHz
Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 , (automatic adjustment)
DVB-S: QPSK
DVB-S: 2 ... 45
DVB-S2: 8PSK-QPSK
DVB-S2: 10 ... 31
FEC: RS, LDPC, BCH

Tuner - Terrestrial
Reception range 2: 470 ... 862 MHz
Demodulation: COFDM
Transmission mode: 2k/8k
Bitrate: 4,98 ... 31,67 Mbit/s
Voltage supply: 5 V
Power supply: 0,05 A
