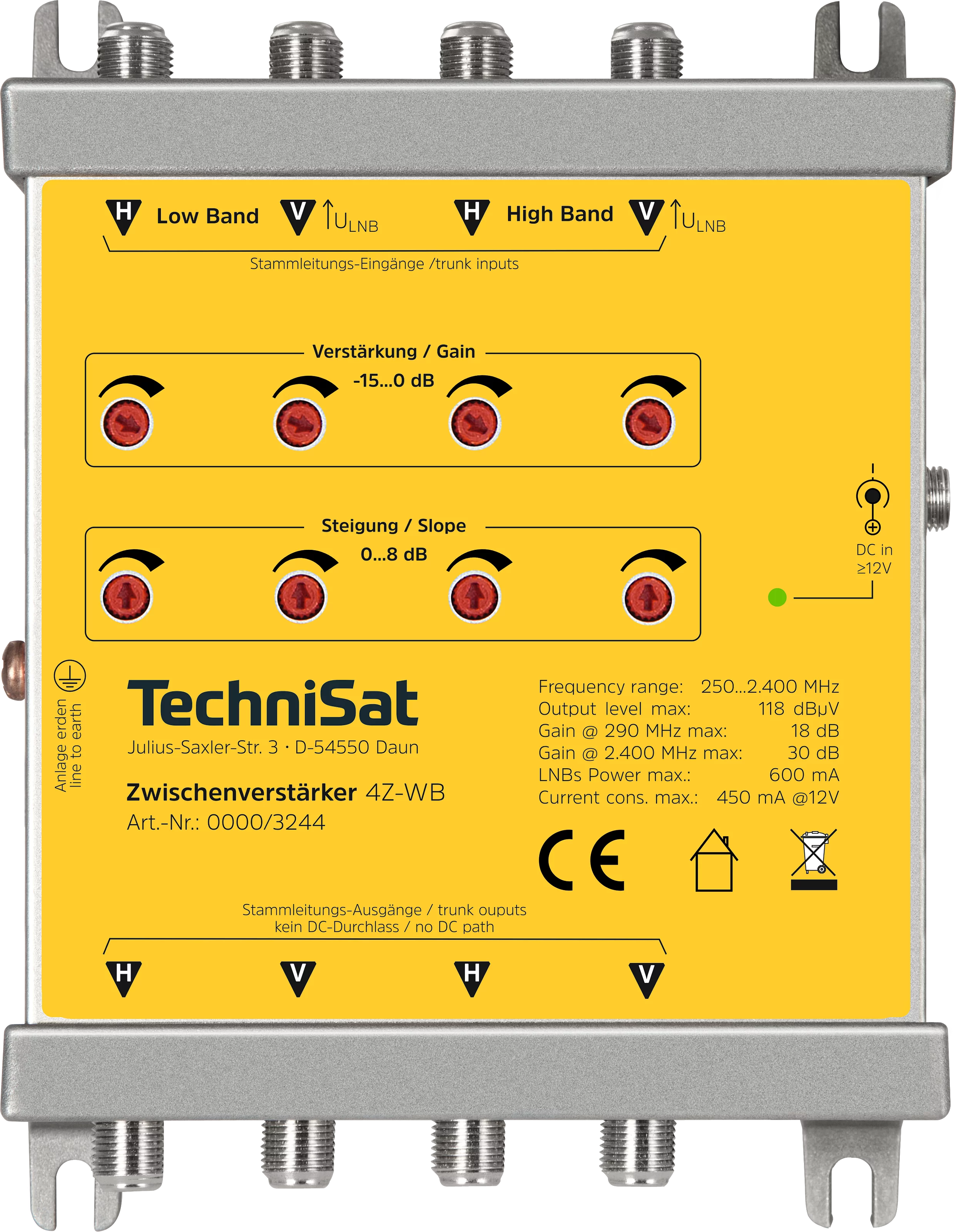

Line Amplifier 4Z-WB
4-way line amplifier
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588032446 |
silver/yellow |
0000/3244 |
680 g |
450 g |
15 x 10,5 x 3,7 cm |
24 x 12,5 x 5 cm |
| Top Features |
- Compensates for the attenuation of 80 meters of RG6 cable
- Frequency range: 250 - 2400 MHz
- Adjustable gain (max. 30 dB at 2400 MHz)
- Slope adjustable 0 - 8 dB
- For 2 wideband LNBs or 1 Quattro LNB
|
| Ambient operating conditions |
| Humidity: 10 - 75 % |
| Ambient temperature: -25 bis 55 °C |
| Amplification |
| Sat: 18 - 30 dB |
| General characteristics |
| Top features: Compensates the attenuation of 80 meters of RG6 cable |
| Top features: Frequenzbereich: 250 - 2400 MHz |
| Top features: Verstärkung einstellbar (max. 30 dB bei 2400 MHz) |
| Top features: Schräglage einstellbar 0 - 8 dB |
| Top features: Für 2 Wideband-LNBs oder 1 Quattro-LNB |
| Power supply |
| Nominal voltage: 230 V DC |
| Frequency: 50 Hz |
| Mains adapter: external (DC 12 V / 2,0 A) |
| Power consumption: typ. 560 mA @12V |
| Reception range |
| Sat: 250 - 2.400 MHz |
| Technical data |
| Satellite inputs: 4 |
| Distribution length: 80 m |
| Scope of Delivery |
| Line Amplifier 4Z-WB, power supply, instruction manual |
