Datenblatt als PDF downloaden

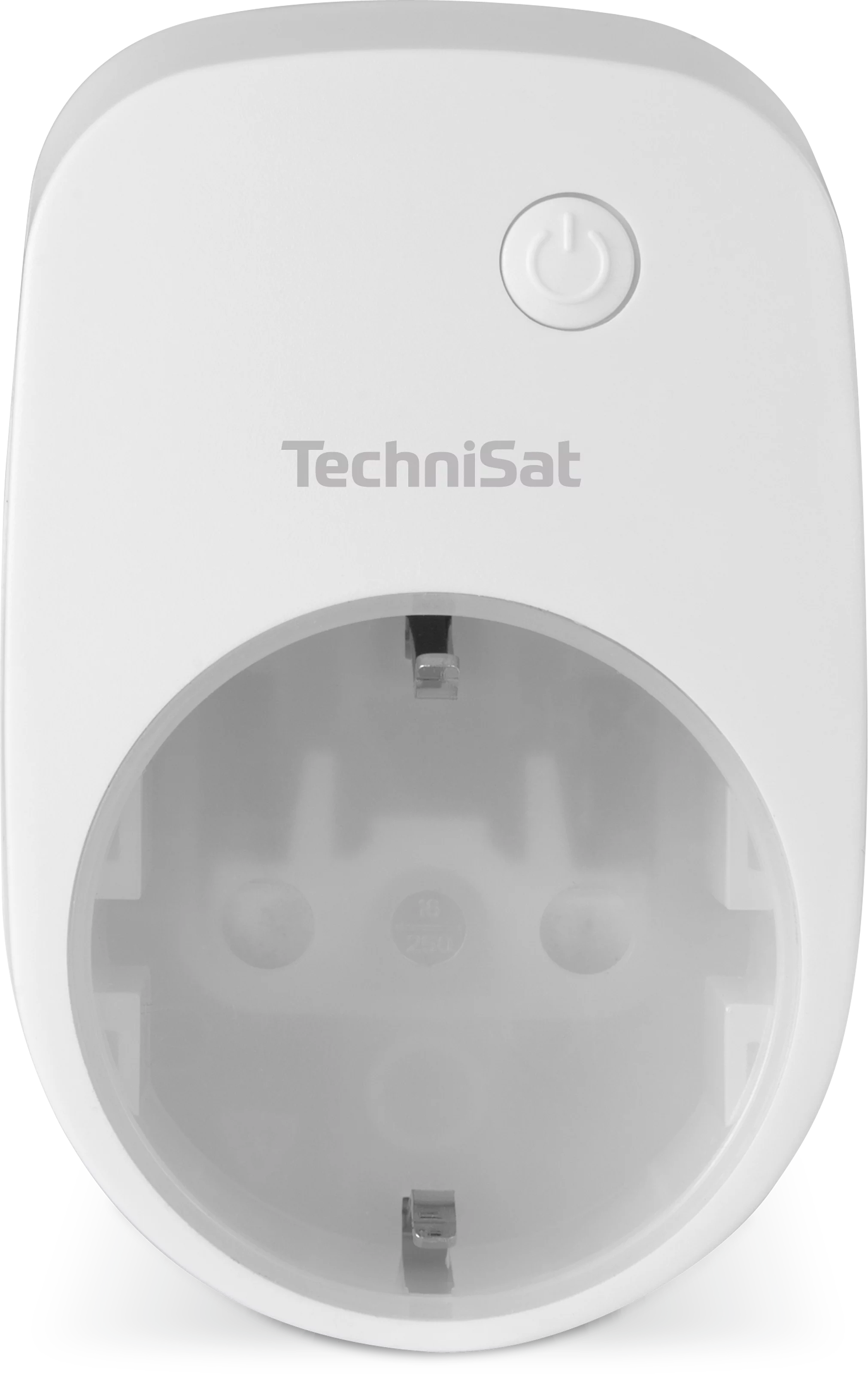

Plug Adapter 3
Switchable adapter plug for controlling electrical devices. With energy consumption measurement.
| Colour |
EAN |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| white |
4019588095144 |
0000/9514 |
188 g |
106 g |
5 x 7,5 x 7,5 cm |
9 x 8,5 x 13 cm |
| Top Features |
- TechniSat smart home component
- Z-Wave™ energy plug in switch (868.42 MHz)
- Maximum Load: 13A (2990W @ 230V) - overload protected
- Electrical power measurement
- Integrated Z-Wave™ repeater
- Manual operation using the button on the unit
|
| Ambient operating conditions |
| IP class: 20 |
| Humidity: 10 ... 75 % |
| Ambient temperature: 0 ... 40 °C |
| funk communication |
| Telecommunication: Z-Wave Plus |
| Range inside: max. 40 m |
| operating frequency: 868,4 MHz |
| Repeater function: Yes |
| Power supply |
| Frequency: 50 Hz |
| Nominal voltage: 230 V |
| Sensor |
| Max. load: 3.000 W |
| Switching capacity: max. 13 A (überlastgeschützt) |
| Performance measurement: 1 Watt Auflösung |
| Scope of Delivery |
| Plug Adapter 3, Operating instructions |
