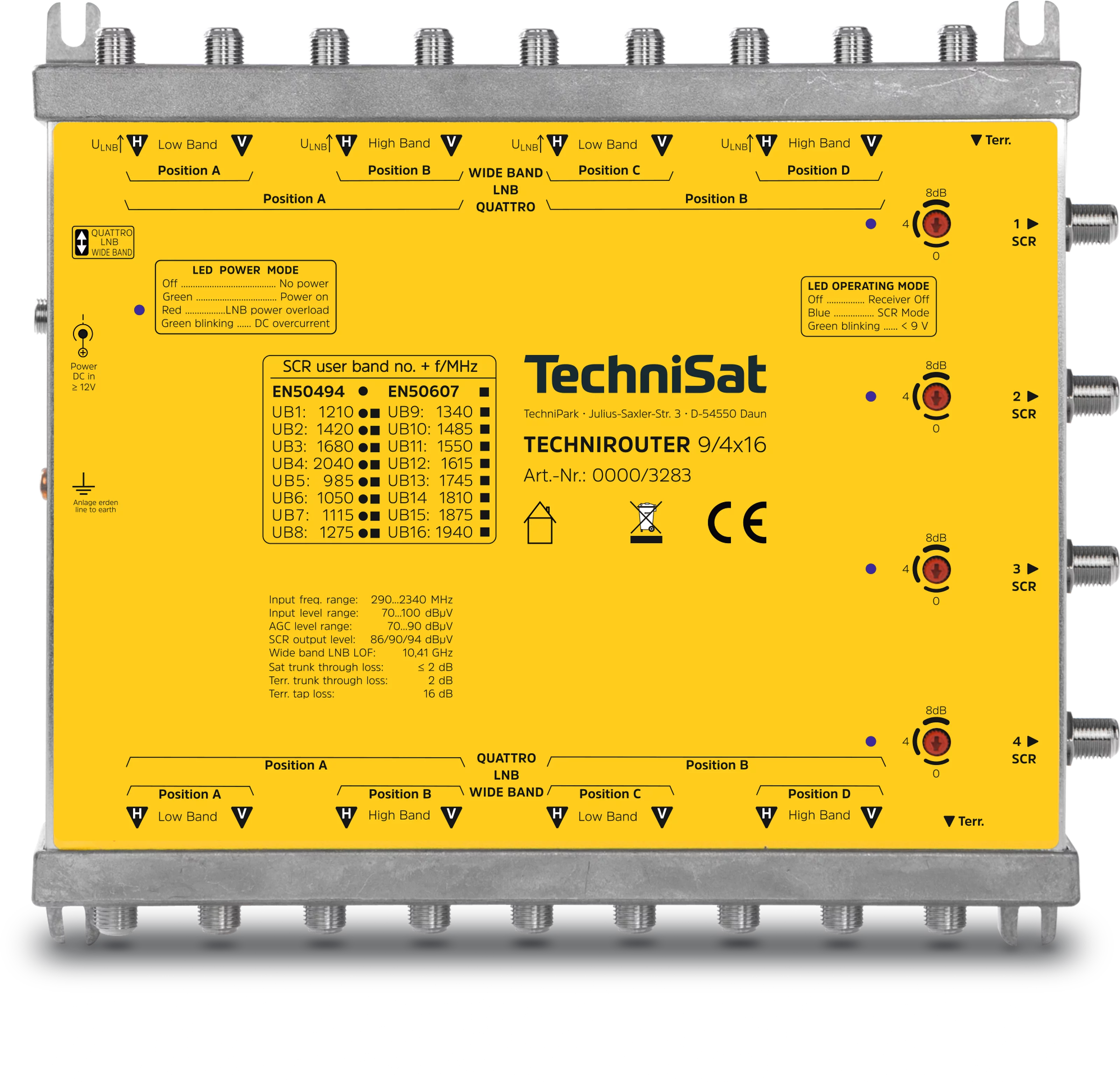

TECHNIROUTER 9/4x16

LNB control
Current consumption: max. 500 mA

Ambient operating conditions
Humidity: 10 ... 75 %
Ambient temperature: -25 ... 45 °C

Amplification
Sat: 0 ... 30 dB AGC controlled
Terrestrial: -16 dB relative to input
Return path: -16 dB

Decoupling
Trunks: ≥ 30 dB

General characteristics
Top features: 64 participants on four cables
Top features: SCR protocol according to EN 50494 & EN50607
Top features: 4 orbit positions - for quattro or wideband LNB operation
Top features: Automatic gain control (AGC)
Top features: SCR level adjustable

Power supply
Nominal voltage: 230 V
Frequency: 50 Hz
Mains adapter: external DC 12V/2,0A
Power consumption: 80 mA @13V, each SCR output

Reception range
Terrestrial: 5 ... 862 MHz
Sat: 290 ... 2.340 MHz

Single-cable output
Output frequency: 5 ... 2.150 MHz
Number of output channels: 4x 16
Frequency of the output channels: 1210, 1420, 1680, 2040, 985, 1050, 1115, 1275, 1340, 1485, 1550, 1615, 1745, 1810, 1875, 1940 MHz
Frequency SAT: 950 ... 2.150 MHz
Frequency DVB-T: 5 ... 790 MHz
Output level: ≤ 90 typ.

Technical data
Satellite inputs: 8
Terrestrial input: 1
Number of cable connections: 4
Subscribers per cable: 16

Transmission loss
Sat: ≤ 2 dB
Terrestrial: ≤ 2 dB
