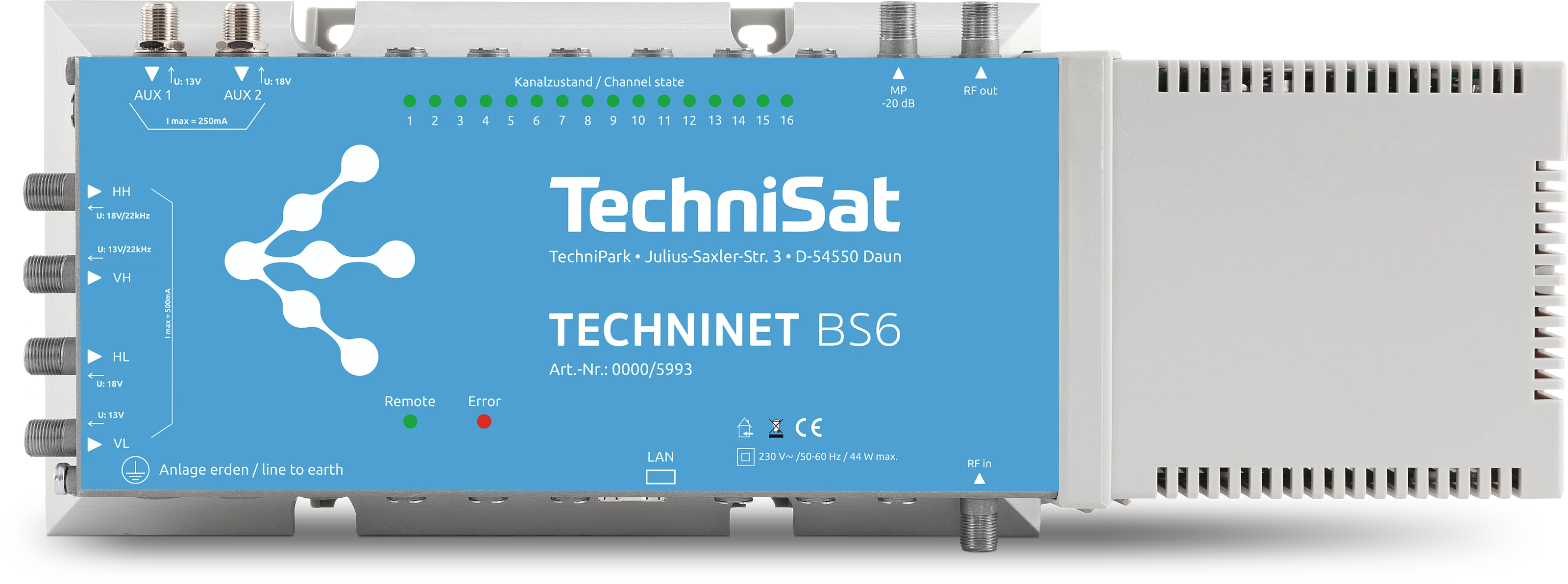

Digital 16-way Head-end - DVB-S(2) / DVB-C
Colour EAN Item no. Weight (Box) Weight Device (W x H x D) Box
silver/blue 4019588059931 0000/5993 3,11 kg 2,81 kg 37,5 x 7 x 13,5 cm 44 x 9 x 15,5 cm
Top Features
  • Stand-alone head-end with 16-way DVB S(2) frontend and 16 output channels conforming to DVB-C (flexibly configurable)
  • Outstanding output values due to direct implementation as FPGA solution
  • 4 Sat-IF inputs with DiSEqC 1.0 functionality for sat multiswitches and 2 additional sat-IF inputs
  • Power supply for LNB
  • All transmission parameters can be set using web interface
  • Remote maintenance and configuration via web interface
  • Comprehensive baseband signal processing with channel filter functionality such as NIT, LCN
  • High level of energy efficiency - only 1,81 Watt per channel
  • No fan, therefore no noise and no maintenance
  • Cascade capability for two head-ends - 32 DVB-C output channels
Tuner (DVB-S2)
DVB-S2 demodulator: EN 302 307
Demodulation: 8PSK, QPSK
Symbol rates: 2 ... 45
Roll off factor: 0,35
FEC block size: 64 kB
FEC Code rate (LDPC): 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Outer coding (BCH): GF(2^16), t=8, 10, 12
LNB control
Vertical: 13 V
Horizontal: 18 V
Band switch: 22 kHz
Current consumption: max. 750 mA total
DiSEqC: 1 (sat. pos. (A/B/C/D))
Ambient operating conditions
Ambient temperature: -10 ... 50 °C
Humidity: 10 ... 75 %
Configuration, monitoring
Network interface: RJ45, Ethernet, 100BaseT, TCP/IP
DVB-C output
Modulation: 16-, 32-, 64-, 128-, 256-QAM
Symbol rate: 3,5 ... 7,2
MER: Typ. 45 dB (256-QAM, with equaliser)
Reception range: 45 ... 862 MHz
Output level: 90 per carrier, adjustable
Secondary wave suppression: > 50 dB
Signal output: F socket
Output impedance: 75 Ω
Return loss: ≥ 14 dB
Power consumption
In operation: 44 W
Power supply
Nominal voltage: 230 V
Frequency: 50 Hz
Mains adapter: internal
SAT IF input / Multiswitch
Reception range: 950 ... 2.150 MHz
input / output: F-socket
Impedance: 75 Ω
Input level: 45 ... 85
LNB voltage supply: 13 / 18 V & 22kHz
LNB power supply: Max. 250 mA
Tuner DVB-S
DVB-S tuner: 16 Stück
DVB-S demodulator: EN 300 421
Demodulation: QPSK
Symbol rates: 2 ... 45
Roll off factor: 0,35
FEC code rate: 1/2, 2/4, 3/4, 5/6, 6/7, 7/8
Interleaving: Convolutional; l=12
Outer coding: Reed Solomon 204, 188, T=8
Scope of Delivery
TECHNINET BS6, Instruction manual
