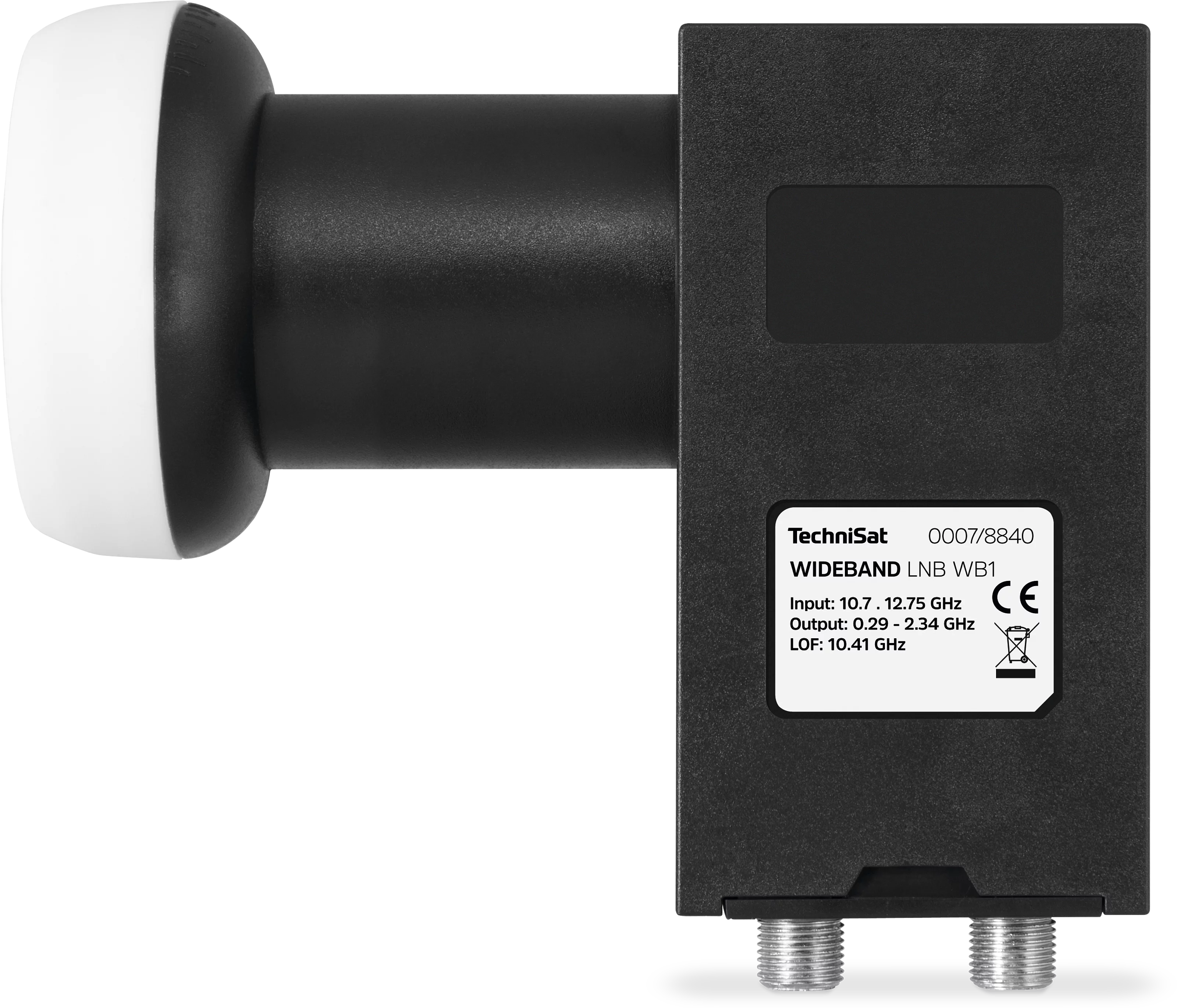

WIDEBAND LNB
Digital LNB, especially for TECHNIROUTER
| Colour |
EAN |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| black |
4019588788404 |
0007/8840 |
174 g |
146 g |
6 x 10 x 11 cm |
6,5 x 10,5 x 12,5 cm |
| Top Features |
- Weather protection housing
- Energy saver – only 70 mA power consumption
- Funktioniert ausschließlich mit TECHNIROUTER
- No new reception devices required, as frequency conversion takes place in the TECHNIROUTER
|
| sonstiges |
| bf_filter_number_satellites: 1 |
| Local oscillator |
| Low band: 10,41 GHz |
| High band: 10,41 GHz |
| Accuracy: ± 0,5 MHz |
| Temperature drift: ± 1 MHz |
| Phase noise: -75 @10kHz |
| LNB control |
| Vertical: 11,5 - 14 V |
| Horizontal: 16 - 19 V |
| Ambient operating conditions |
| Humidity: 10 ... 90 % |
| Ambient temperature: -40 ... 60 °C |
| Input frequency range |
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Noise factor |
| Lower frequency range: 0,7 dB max. |
| Upper frequency range: 0,7 dB max. |
| Noise figure: 0,1 dB typ. |
| Output frequency range |
| Low band: 290 ... 1.290 MHz |
| High band: 1.290 ... 2.340 MHz |
| Power supply |
| LNB voltage supply: 9 ... 19 V |
| Power consumption: 70 mA @12 VDC |
| Prepared for |
| Number of orbit positions: 1 |
| Technical data |
| Outputs: 2 |
| Impedance: 75 Ω |
| Connector type: F-Buchse |
| Feed reception: ø 40 mm |
| Amplification: 50 ... 60 dB |
