DIGITRADIO UP 55

DIGITRADIO UP 55

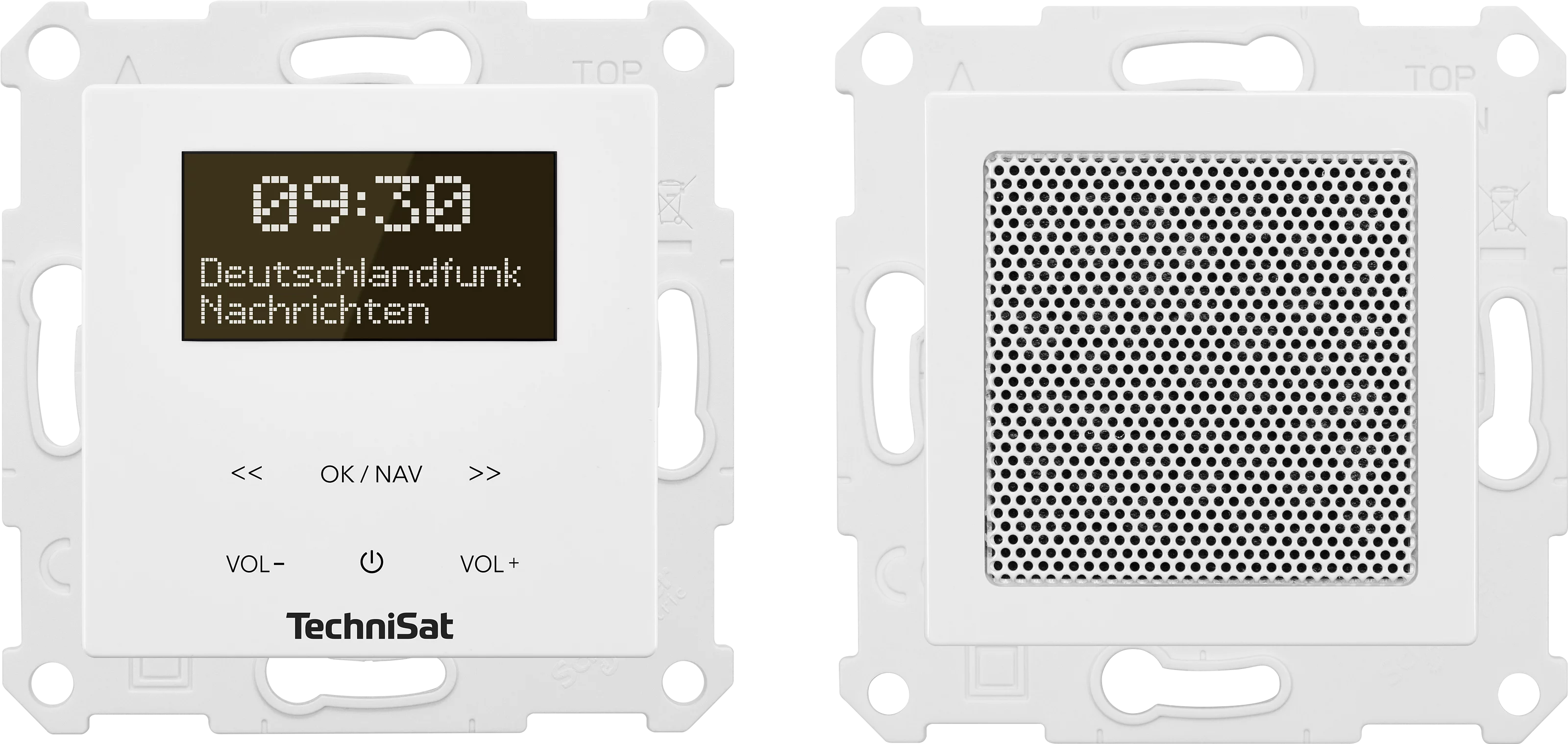

Set with flush-mounted radio and flush-mounted speaker

EAN	Colour	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
4019588139015	white	0001/3901	370 g	170 g	7 x 7 x 4 cm	19,5 x 6,3 x 11 cm

Top Features

Compact digital radio: The flush-mounted radio consists of two units. Radio and speaker can be installed flexibly, e.g. in a double flush-mounted box, either vertically or horizontally

Flexible: The radio is delivered without a cover frame, both inserts are 55 mm high and wide. They can be combined with standard cover frames from well-known switch program manufacturers

Features: The digital radio with sleep and alarm timer receives analog and digital radio stations and also allows wireless music streaming via Bluetooth

Display/Operation: The OLED display shows station names and has a dimming function. Additionally, 20 DAB Plus and FM stations can be saved as favorites

Good to know and not a defect: Turn off power circuit before installation and only turn it back on after installing the radio and attaching the display, otherwise no display will appear

sonstiges
abmasse_stationaer: Yes ,geeignet für Standardrahmen mit 55x55 mm
abmasse_portabel: No
bf_filter_operating_mode: Mains operation
bf_filter_austattung: Bluetooth
bed_schutzklasse: IP 20
radio_typ_unterputzradio: Ja

Ambient operating conditions
Humidity: 10 - 75 % relative air humidity (non-condensing)
Ambient temperature: 5 - 35 °C

Bluetooth Version & Profile
Bluetooth version: 5
AVRCP (Audio Video Remote Control Profile): Yes
A2DP (Advanced Audio Distribution Profile ): Yes

Display
Type: OLED
Resolution (vertical and horizontal): 128x64
Dimmable: Yes

General characteristics
Colour: Front: RAL 9016, part: RAL 9010

Handling/comfort
Alarm: Yes
Sleep timer: Yes
Favourites programme manager DAB+: 20
Favourites programme manager FM: 20

Loudspeakers
Output performance: 2x 2 W (RMS) for optional 2nd speaker
Mono speakers: Yes
Equalizer: Yes

Network & communication
Bluetooth: Yes

Power consumption
Standby: 0,5 W
Power consumption in standby mode with active network connection: 0,5 W
In operation: 6 W max.

Power supply
Nominal voltage: 230 V
Frequency: 50 Hz

Radio / reception
DAB+: 174 - 240 MHz
FM/RDS: 87,5 - 108 MHz
Aerial: DAB / FM cable antenna

Radio type
stationary radio: Yes

Scope of Delivery
1x flush-mounting radio, 1x flush-mounting speaker with speaker cable (24 cm long), instruction manual
