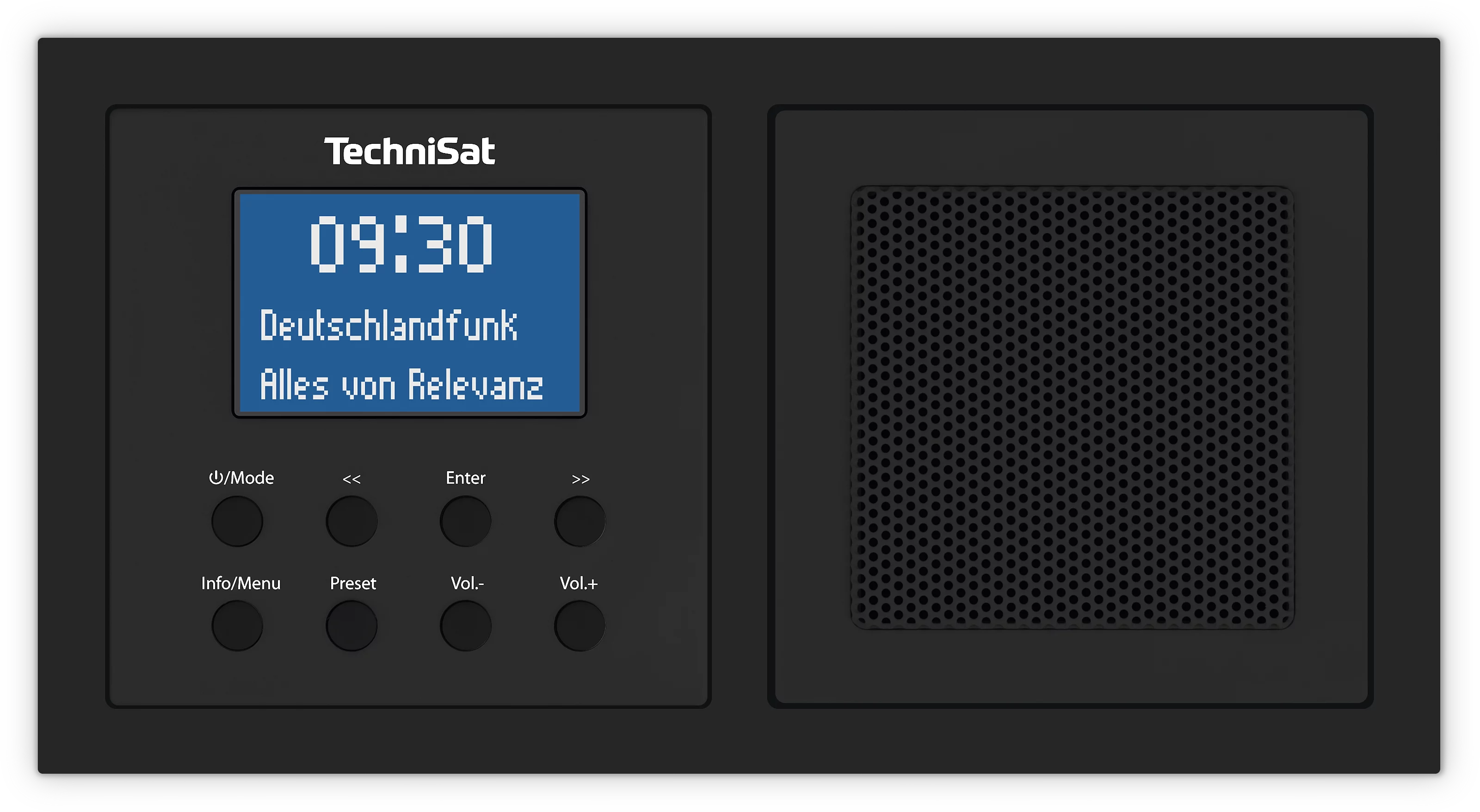

DIGITRADIO UP 1

DIGITRADIO UP 1

DAB+/FM flush-mounted radio
Colour EAN Item no. Weight (Box) Weight Device (W x H x D) Box
schwarz (RAL 9011) 4019588039001 0000/3900 352 g 250 g 15,1 x 8 x 4,5 cm 18,5 x 9,5 x 10,5 cm
silber (RAL 9023) 4019588239005 0002/3900 352 g 250 g 15,1 x 8 x 4,5 cm 18,5 x 9,5 x 10,5 cm
white 4019588139008 0001/3900 352 g 250 g 15,1 x 8 x 4,5 cm 18,5 x 9,5 x 10,5 cm
Top Features
  • Space-saving digital radio: the flush-mounted radio is suitable for installation in any double flush-mounted box. Installation can be performed vertically or horizontally
  • Good to know and not a defect: Switch off the fuse before installation and only switch it on again after the radio and display have been installed, otherwise no display will appear
  • Functions: The digital radio with sleep and wake timer can receive both analog and digital radio stations and also allows wireless music streaming via Bluetooth
  • Display/Operation: The 1.7 inch LCD display shows station names and includes a dimming function. 10 DAB+/FM stations can be saved as favorites. Bluetooth version: 2.1 + EDR
  • Scope of delivery: 1 x TechniSat DIGITRADIO UP 1, DAB+ flush-mounted radio with 2 W mono speaker, user manual, product dimensions (WxHxD): 15.1 x 8 x 4.5 cm
sonstiges
abmasse_stationaer: Yes
bf_filter_operating_mode: Mains operation
bf_filter_austattung: Bluetooth
radio_typ_unterputzradio: Ja
bf_filter_anschluesse: Headphone jack (3.5 mm)
abmasse_portabel: No
Ambient operating conditions
Humidity: 5 - 90 % relative air humidity (non-condensing)
Ambient temperature: 5 - 35 °C
Bluetooth Version & Profile
Bluetooth version: 2.1 + EDR
AVRCP (Audio Video Remote Control Profile): Ja
A2DP (Advanced Audio Distribution Profile ): Ja
Display
Type: LCD
Size: 1,7 in
Dimmable: Yes
Handling/comfort
Alarm: Yes
Sleep timer: Yes
Snooze: Yes
Favourites programme manager DAB+: 10
Favourites programme manager FM: 10
Loudspeakers
Output performance: 2 W (RMS)
Mono speakers: Yes
Equalizer: Yes
Network & communication
Bluetooth: Yes
Power consumption
Standby: 1 W
Power consumption in standby mode with active network connection: 1 W
In operation: 5 W max.
Power supply
Nominal voltage: 230 V
Frequency: 50 Hz
Radio / reception
DAB+: 174 - 240 MHz
FM/RDS: 87,5 - 108 MHz
Aerial: DAB/FM aerial
Radio type
stationary radio: Yes
Scope of Delivery
DIGITRADIO UP 1, Instruction Manual

Test Results DIGITRADIO UP 1

Testurteil: sehr gut (92,0%)
SATVISION 10/2019
