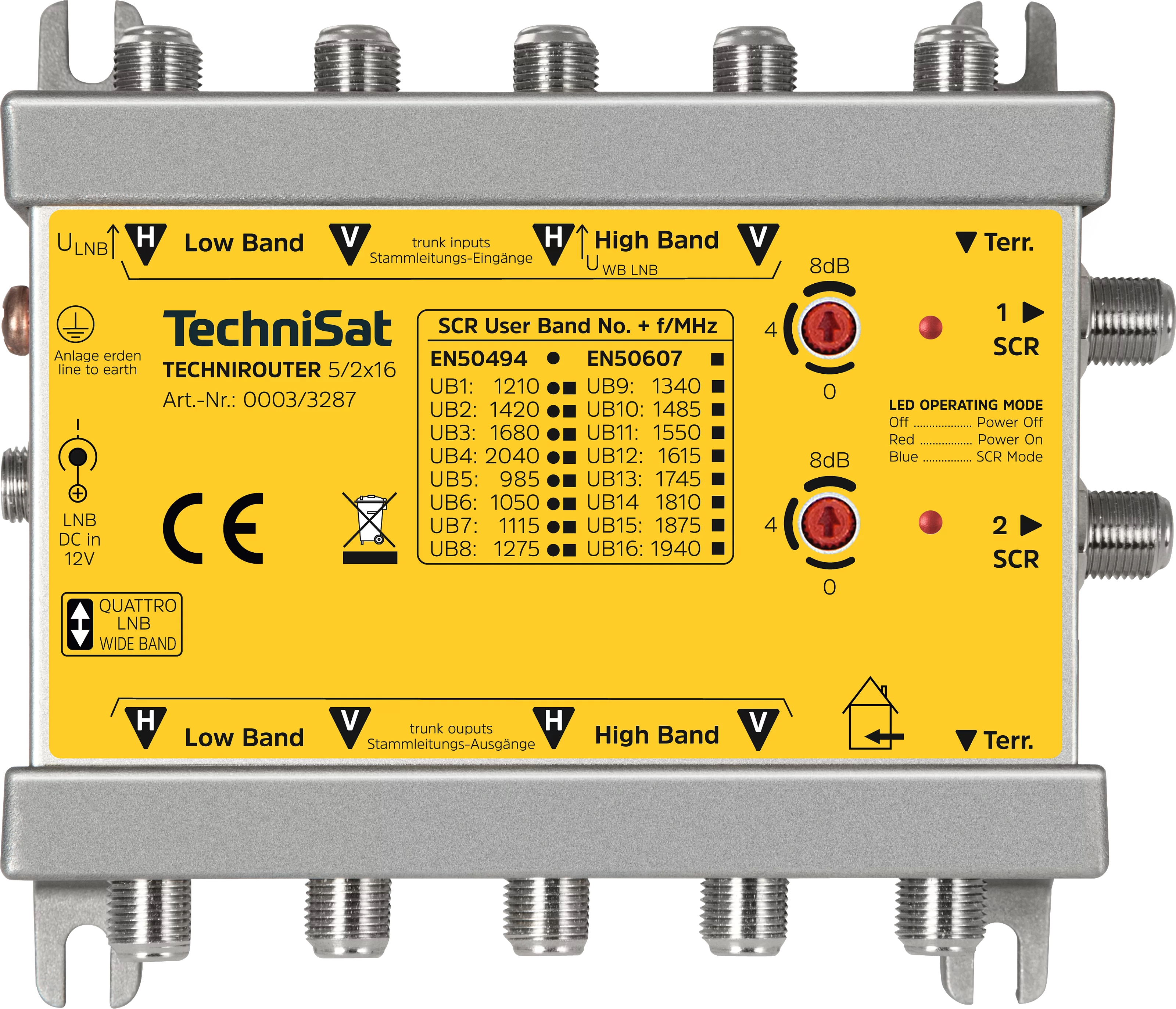

TECHNIROUTER 5/2x16
Distribution of 2 satellites to 2 times 16 participants
| Colour | EAN | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| silver/yellow | 4019588332874 | 0003/3287 | 890 g | 690 g | 11,8 x 8,5 x 4,2 cm | 25,5 x 13,5 x 5,5 cm |
| Top Features |
|---|
|
| sonstiges |
|---|
| bf_filter_number_of_participants: 32 |
| LNB control |
|---|
| Current consumption: max. 500 mA |
| Ambient operating conditions |
|---|
| Ambient temperature: -25 ... 45 °C |
| Humidity: 10 ... 75 % |
| Amplification |
|---|
| Sat: 0 ... 30 dB AGC-gesteuert |
| Terrestrial: -15 dB bezogen auf Eingang |
| Return path: -7 dB |
| Decoupling |
|---|
| Trunks: ≥ 30 dB |
| General characteristics |
|---|
| Top features: 32 participants on two cables |
| Top features: SCR protocol according to EN 50494 & EN50607 |
| Top features: 2 orbit positions - for quattro or wideband LNB operation |
| Top features: Can be integrated into a multi-switch distribution |
| Top features: Automatic gain control (AGC) |
| Top features: SCR level adjustable |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Mains adapter: external DC 12 V / 2,0 A |
| Power consumption: max. 310 mA @13 V (16 User-Bänder) |
| Reception range |
|---|
| Terrestrial: 5 ... 790 MHz |
| Sat: 290 ... 2.340 MHz |
| Single-cable output |
|---|
| Output frequency: 5 ... 2.150 MHz |
| Number of output channels: 2x 16 |
| Frequency of the output channels: 1210, 1420, 1680, 2040, 985, 1050, 1115, 1275, 1340, 1485, 1550, 1615, 1745, 1810, 1875, 1940 MHz |
| Frequency SAT: 950 ... 2.150 MHz |
| Frequency DVB-T: 5 ... 790 MHz |
| Output level: ≤ 80 ... 90 typ. |
| Technical data |
|---|
| Satellite inputs: 4 |
| Terrestrial input: 1 |
| Number of cable connections: 2 |
| Subscribers per cable: 16 |
| Transmission loss |
|---|
| Sat: ≤ 1 dB |
| Terrestrial: ≤ 2 dB |
| Scope of Delivery |
|---|
| TECHNIROUTER 5/2x16, Instruction manual, Power supply |
